Altronix AL62424C 24VDC 0.75A Linear Power Supply
Altronix AL62424C 24VDC 0.75A Linear Power Supply The Altronix AL62424C is a Class 2 rated linear power supply and charger designed for 24VDC securit…
Altronix AL62424C 24VDC 0.75A Linear Power Supply
$102.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
AL62424C
Condition:
New
Availability:
Backorder Available — Contact for ETA
Warranty
Lifetime Limited Warranty
Description

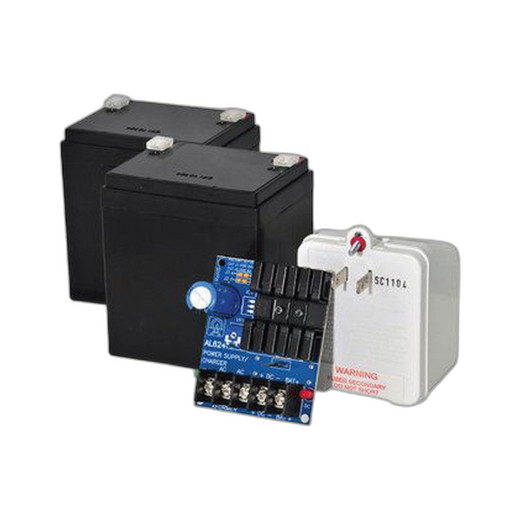

Altronix AL62424C 24VDC 0.75A Linear Power Supply
The Altronix AL62424C is a Class 2 rated linear power supply and charger designed for 24VDC security applications. This board-form unit accepts 16/24VAC input and delivers 0.75A at 24VDC, with integrated dual 12VDC/4AH sealed lead-acid battery backup that provides instantaneous failover upon AC loss. The AL62424C is compact and suitable for installation in control panels and access control enclosures.
Key Features
- 24VDC output at 0.75A maximum current
- Dual 12VDC/4AH sealed lead-acid battery backup with instantaneous failover
- 16/24VAC input voltage range
- Class 2 rated for safety compliance
- Compact board form factor (2.5" × 3" × 1.5")
- Operating temperature range 0°C to 49°C (32°F to 120°F)
- Single output configuration
- Lifetime Limited Warranty
Applications
- Security system power backup and battery charging
- Access control and card reader systems
- Lock strike and electromagnetic door control
- Surveillance equipment DC power distribution
Specifications
- Model: AL62424C
- Output: 24VDC @ 0.75A
- Input: 16/24VAC
- Backup Battery: Two 12VDC/4AH sealed lead-acid
- Board Dimensions: 2.5" × 3" × 1.5" (63.5mm × 76.2mm × 38.1mm)
- Operating Temperature: 0°C to 49°C (32°F to 120°F)
- Certification: Class 2 rated
Specifications
Product Type:
Power Supply
Input Voltage:
16/24VAC
Max Current:
.2A @ 6VDC / .2A @ 12VDC / .75A @ 24VDC
Form Factor:
Board
Operating Temperature:
0°C to 49°C (32°F to 120°F)
Approvals:
Class 2 rated
Output Voltage:
24VDC
Number of Outputs:
1
Battery_Backup:
Two 12VDC/4AH sealed lead-acid batteries with instantaneous failover upon AC loss
Board_Dimensions:
2.5" x 3" x 1.5" (63.5mm x 76.2mm x 38.1mm)
Enclosure_Dimensions:
8" x 6" x 5" (203.2mm x 152.4mm x 127mm) shipping
Warranty:
Lifetime Limited Warranty
Battery Backup:
Yes
