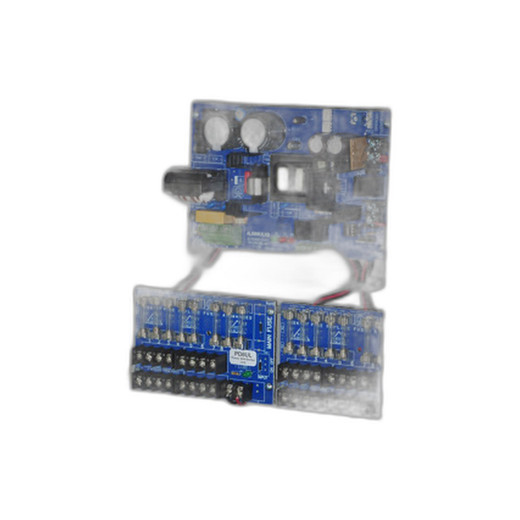

Altronix AL600PD4220 Four-Output Fused Power Supply
The Altronix AL600PD4220 is a distributed DC power supply designed to deliver independent, protected power to multiple security devices in a single installation. Built around four separately fused outputs, this unit eliminates single-point power failures — if one circuit draws excessive current or fails, the others remain unaffected. This architecture is essential in access control and surveillance deployments where a control panel, multiple door strikes, and related devices must all stay live.
Key Features
- Four Independently Fused Outputs: Each channel has its own fuse, so a fault on one circuit (short, overload, or device failure) won't cascade to the others. In a multi-zone access control setup, this means a malfunctioning reader or solenoid on one door won't black out the entire installation — a genuine uptime safeguard, not a luxury.
- Compact Cabinet-Mount Form Factor: Designed to fit into standard enclosures and control cabinets without dominating real estate. Pairs naturally with access control power distribution systems and alongside other Altronix components.
- Reliable DC Power Distribution: Centralizes power for devices that require stable, regulated 12 VDC or 24 VDC supply — common across door locks, card readers, intercoms, and certain surveillance equipment.
- Lifetime Limited Warranty: Covered under Altronix's lifetime limited warranty, meaning if the unit fails under normal operating conditions, repair or replacement is supported. This reduces long-term cost of ownership on infrastructure that's often out of sight in a mechanical room.
- Multi-Device Support: Capable of powering up to four independent circuits, each at its rated current draw — typical configurations include one output per door zone in a four-door installation or mixed power distribution across readers, relays, and auxiliary loads.
Deployment Context
Install the AL600PD4220 where you need to split power among multiple security devices without running separate power feeds or relying on a single circuit that could fail catastrophically. Common scenarios include: (1) access control installations requiring independent power for multiple door strikes and fail-safe relays, (2) distributed surveillance equipment charging stations in multi-zone systems, and (3) mixed security infrastructure requiring isolated power rails to prevent electrical coupling between unrelated devices. The fused architecture ensures that a shorted solenoid or failed device won't compromise the entire installation — each circuit protects itself.
Integration & Compatibility
The AL600PD4220 integrates with Altronix control panels, access control systems, and surveillance infrastructure. Outputs are standard fused channels — confirm your devices require 12 VDC or 24 VDC and verify current draw per circuit to ensure the unit's output capacity matches your design load. Consult the device documentation and the access control integration guide for power budget planning. Mounting is straightforward into a standard DIN rail or cabinet; wire the four protected circuits to your respective loads, and verify fuse sizing against expected current draw at commissioning.
Frequently Asked Questions
Q: What output voltage does the AL600PD4220 provide?
A: The AL600PD4220 is available in 12 VDC and 24 VDC versions. Verify your specific model variant at purchase to ensure it matches your device requirements.
Q: Can I use the AL600PD4220 to power cameras and door locks on the same unit?
A: Yes — so long as both device types operate at the same voltage (either 12 VDC or 24 VDC). Assign high-current loads (such as solenoid strikes) to separate outputs from sensitive devices (like IP cameras) to minimize electrical noise coupling.
Q: What happens if one fuse blows?
A: The fused output that blew will no longer supply power, but the other three outputs remain operational. This isolation is the primary advantage of the four-output architecture — a single fault doesn't take down your entire installation.
Q: Does the AL600PD4220 come with a power cord?
A: Confirm with the product documentation or retailer specifications. Most power supplies ship with a standard AC input cord; verify before installation.
Q: How does the AL600PD4220 differ from a single-output power supply?
A: A single-output supply provides one fused circuit — if that circuit fails or is overloaded, all connected devices lose power. The AL600PD4220's four independent outputs allow you to isolate critical circuits, so a fault on one door strike or device won't affect others. This is essential in multi-zone access control and mixed security environments.
Q: Is there a warranty on the AL600PD4220?
A: Yes, the AL600PD4220 is covered under Altronix's Lifetime Limited Warranty. This covers defects in materials and workmanship under normal operating conditions.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I spec the AL600PD4220 into access control designs where power redundancy and fault isolation matter — particularly in multi-zone door control installations and mixed security environments. The four independent fused channels mean you're not betting your entire system on a single power rail. If a solenoid strike shorts or a reader circuit draws excessive current, you lose that one channel, not the whole cabinet.
Technical Highlights:
- Four Separately Fused Outputs: Each channel is independently protected, so a fault on circuit one doesn't cascade to circuits two, three, and four. In a four-door access control setup, this is the difference between one door failing to unlock and the entire system going dark.
- Compact Cabinet Integration: Designed to mount into standard DIN rail or enclosures without eating up valuable real estate. Pairs seamlessly with Altronix control panels and relay modules.
- Lifetime Limited Warranty: Reduces long-term ownership cost on infrastructure that often sits untouched in a closet for years. When it fails, you've got coverage, not a surprise replacement bill.
Deployment Considerations:
- Confirm your device power requirements match the unit's output voltage — the AL600PD4220 comes in 12 VDC and 24 VDC variants. Running a 24 VDC device on a 12 VDC supply will not end well.
- Size your fuses carefully. Undersized fuses trip constantly under normal load; oversized fuses won't protect against genuine faults. Consult each connected device's current draw and spec the fuse at roughly 125% of that value, or per Altronix documentation.
- Watch for noise coupling on sensitive circuits. If you're mixing door solenoids (high inrush current) and card readers (low-level signal) on the same supply, use separate output channels and keep wiring runs physically separated.
Choose the AL600PD4220 when you're building a multi-zone access control system or a mixed-device security installation where circuit isolation and fault tolerance are non-negotiable. It's not glamorous, but it prevents the 3 a.m. call that says your entire building just locked everyone out because one solenoid failed.
