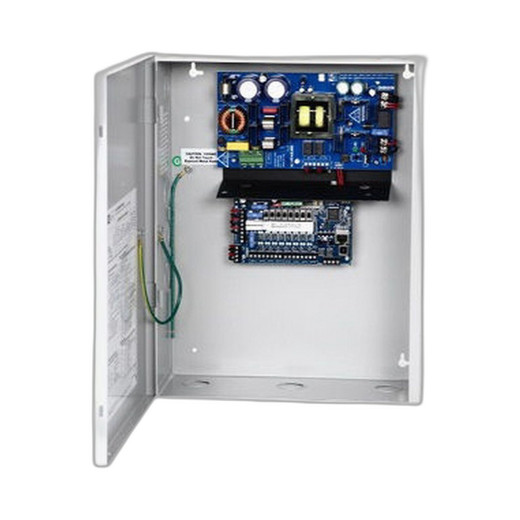

Altronix AL1024NK8DQP Networked Dual Voltage Power Supply/Charger
Overview
The Altronix AL1024NK8DQP is a networked power distribution and charging module engineered for access control, door lock, and ancillary device applications requiring redundant DC power with remote supervision. This dual-voltage system converts 115VAC 60Hz input into eight individually selectable outputs that deliver either 12VDC or 5VDC at up to 6A per output, or 24VDC at up to 10A per output, with a combined capacity of 240W. Built-in LINQ networking technology enables real-time monitoring, diagnostics reporting, and remote control over standard network infrastructure, eliminating manual site visits for power supply status verification.
Key Features
- Eight PTC-Protected Outputs: Each output is individually selectable and electronically regulated, delivering 12VDC or 5VDC at 6A maximum, or 24VDC at 10A maximum (240W total power budget)
- Dual Voltage Support: Configurable per-output voltage selection (12VDC, 5VDC, or 24VDC) accommodates mixed-load deployments without external conversion modules
- Short Circuit & Overvoltage Protection: Electronic regulation and PTC filtering protect downstream devices from transient faults and power surges
- AC Fail Supervision: Monitors primary AC input and triggers automatic switchover to battery backup upon utility loss
- Battery Presence & Low Battery Supervision: Continuous monitoring of sealed lead acid or gel-type battery status with configurable alert thresholds
- Built-In Battery Charger: Integrated charger maintains sealed lead acid and gel-type batteries, enabling instantaneous transfer to standby power without manual intervention
- Network Monitoring via LINQ: Embedded LINQ technology facilitates remote power supply status, output voltage verification, and diagnostic reporting through Email and Windows Dashboard Alert notifications
- Two Network-Controlled Form C Relays: Enable remote power sequencing and third-party integration logic
- Bi-Colored LED Output Indication: Per-output visual status verification of voltage rail integrity
- Stackable Design: Sub-assembly architecture (AL1024ULx with VR6 and LINQ8PDCB) conserves cabinet space in dense installations
- Management Interface: USB flash drive includes configuration and monitoring software for Windows environments
- CE European Conformity: Meets regulatory compliance for EU deployment
Battery Backup & Failover
The AL1024NK8DQP integrates a sealed lead acid or gel-type battery charger with automatic AC-fail supervision. Upon AC mains interruption, the system seamlessly transfers connected loads to standby battery power without loss of output voltage or interruption of service. Battery presence and low-voltage supervision continuously monitor reserve capacity, reporting battery health status via Email and Windows Dashboard notifications to eliminate surprise power loss during extended outages. This architecture ensures access control systems and critical ancillary devices remain powered during extended facility downtime.
Remote Diagnostics & Network Reporting
Integration of LINQ networking technology enables the AL1024NK8DQP to report power supply diagnostics, voltage rail status, battery condition, and AC mains presence directly over standard network infrastructure. Email and Windows Dashboard alert notifications provide real-time visibility into supply-side faults, reducing mean-time-to-repair by eliminating unnecessary dispatch calls for non-critical monitoring. This network-centric architecture is particularly valuable in multi-location deployments where on-site power supply inspection becomes labor-intensive.
Package Contents
- AL1024ULx power supply module with VR6 and LINQ8PDCB sub-assemblies
- Management interface software on USB flash drive
- Interface cables
Lifetime Warranty
The AL1024NK8DQP is backed by Altronix's lifetime manufacturer warranty, providing extended protection against component failure and manufacturing defects.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
During integration planning for a multi-building access control deployment, I evaluated the Altronix AL1024NK8DQP as a primary power distribution platform. The modular sub-assembly design and dual-voltage output flexibility addressed a common challenge: reducing the number of discrete power supplies required to support mixed 12VDC and 24VDC loads across door locks, card readers, and auxiliary relays. The networked monitoring capability proved invaluable for reducing unplanned service calls.
Technical Highlights:
- Output Flexibility: Per-output voltage selection (12VDC, 5VDC, or 24VDC) means a single AL1024NK8DQP can power heterogeneous device loads without external buck converters, simplifying wiring and reducing failure points
- AC Fail & Battery Supervision: Integrated AC mains monitoring combined with battery presence and low-voltage supervision ensures critical loads remain powered during utility loss and alerts operators before reserve capacity is exhausted
Deployment Considerations:
- Verify that downstream access control and lock devices are rated for the output amperage per circuit; the 6A limit on 12VDC and 5VDC outputs and 10A limit on 24VDC outputs must be respected to avoid nuisance PTC trips
- Configure LINQ email alert thresholds conservatively; a low-battery alert set too high can generate alert fatigue, while one set too low risks unexpected shutdown during extended outages
For integrators deploying access control systems with mixed voltage requirements and a need for network-based power monitoring, the AL1024NK8DQP reduces component count and operational overhead. The 240W capacity and eight independently selectable outputs make efficient use of cabinet space, particularly in retrofit scenarios where power infrastructure must be added to existing installations. Lifetime warranty support from Altronix is a practical advantage in long-term service contracts.
