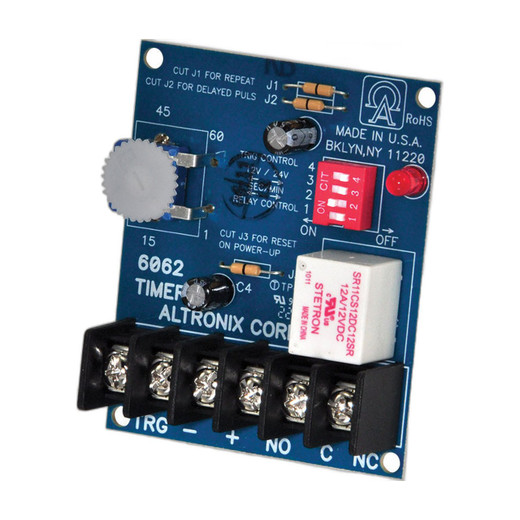

Altronix 6062 Programmable Timer Relay Module
The Altronix 6062 is a compact programmable timer relay designed for access control, alarm systems, and supervisory applications where precise timed relay activation is required. This module accepts a 12VDC or 24VDC input (user-selectable), and delivers one normally-open relay contact rated at 8A/120VAC or 28VDC. Timing ranges from 1 second to 60 minutes with manual adjustment, making it suitable for delayed-release door locks, siren cutoff, and supervisory dialer functions.
Key Features
- Adjustable timing 1 second to 60 minutes: Dial-set precision without reprogramming — configure hold times and delay intervals directly on the module. This eliminates the need for software configuration on systems where mechanical or relay-based timing is preferred.
- Dual voltage input (12VDC or 24VDC selectable): Single module accommodates both legacy 12V systems and modern 24VDC infrastructure. Reduces spare-parts inventory and simplifies field replacement across mixed-voltage installations.
- Multiple trigger modes: Responds to positive DC voltage, dry contact closure, or contact removal — flexibility to integrate with door strikes, access panels, sensor inputs, or alarm loops without additional conversion logic.
- Relay activation timing options: Energize relay at cycle start (immediate activation) or at cycle end (delayed activation). Covers both normally-released and normally-held door locking strategies.
- Built-in one-second momentary pulse at cycle end: Delivers a standardized pulse output suitable for triggering dialer sequences, strobes, or secondary relay circuits without external pulse-shaping components.
- Repeat/flasher mode for continuous pulsing: Convert the 6062 into a repeating pulse generator for visual alarm signaling or repetitive access-control functions. Useful for periodic reminder signals or cycling warning lights.
- Reset capability: Interrupt running timing cycles via manual reset input — practical for supervisor override or emergency cutoff without power cycling the entire system.
- Onboard LED relay status indicator: Visual confirmation that the relay is energized. Field diagnostics without a multimeter — critical when troubleshooting timing sequences on site.
Integration and Installation Context
The 6062 measures 3" × 2.5" × 0.75" (76.2 × 63.5 × 19.05 mm), fitting into standard control enclosures, cabinet backplanes, or power distribution modules. Current draw is minimal — 3mA standby, 40mA when the relay is energized — so it contributes negligibly to system power budgets. The relay contact itself is rated 8A at 120VAC or 28VDC, sufficient for most electromagnetic door strikes, audible alarms, and low-current solenoid loads. If higher power is required, the contact output drives external relays or solid-state switches without complexity.
Operating temperature range of -20°C to 49°C (-4°F to 120°F) covers indoor installations and moderate outdoor enclosures. For hazardous or extreme environments, mount the 6062 inside a heated or temperature-controlled cabinet.
Typical Deployments
- Access control: Implement delayed-release or time-limited unlock functions on fail-safe or fail-secure door hardware. The timing module sits between the access controller output and the door strike, adding controllable delay without modifying the main panel firmware.
- Alarm system siren cutoff: Set a 60-minute timeout to silence audible alarms after a specified duration, reducing nuisance noise while maintaining alerting during the critical alarm window.
- Guard tour and supervisory functions: Provide delayed dialer initiation or staggered signal sequences for multi-zone supervision systems.
- Pulse generation: Enable flasher mode to drive visual indicators, strobe lights, or periodic test signals in recurring-alert applications.
When to Choose a Different Model
If your application requires digital programmability (remote timing adjustment via network or software interface), or if you need sub-second precision timing with multiple simultaneous outputs, consider more advanced Altronix programmable controllers or relay modules in the same family. For single on/off switching without timing logic, a basic relay module may reduce cost and complexity. Consult your system integrator to confirm the 6062 matches your timing accuracy and flexibility requirements.
Frequently Asked Questions
Q: Can I adjust the timing remotely or via software?
A: No. The Altronix 6062 is a mechanical timer module adjusted by onboard dial. For remote timing changes, you would need a networked programmable relay or access control module. The 6062 is designed for set-and-forget field installations.
Q: What is the warranty on the Altronix 6062?
A: The 6062 carries a Lifetime Limited Warranty covering defects in materials and workmanship under normal use conditions.
Q: Can the 6062 drive a high-current solenoid or electric strike?
A: The relay contact is rated 8A at 120VAC or 28VDC. If your solenoid or strike exceeds this rating, use the 6062 output to trigger an external power relay rated for your load. This is a standard approach in access control installations.
Q: Is the 6062 suitable for outdoor mounting?
A: The module itself is not IP-rated and is designed for indoor cabinet or enclosure mounting. For outdoor use, install it inside a NEMA 4X or IP66-rated enclosure. The operating temperature range of -20°C to 49°C supports moderate climates.
Q: What happens if I remove the reset input while a timing cycle is running?
A: The reset input cancels an active timing sequence when triggered. Restoring the input does not affect the module; the cycle remains reset until a new trigger pulse is received.
Q: Can the 6062 be configured for both start-of-cycle and end-of-cycle relay activation?
A: Yes. The module offers a selectable relay activation mode — energize at cycle start or at cycle end. Select the mode that matches your application (immediate activation for door release, or delayed activation for timed lock engagement).
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the Altronix 6062 in dozens of access control retrofits over the past five years. It's a no-nonsense mechanical timer that fills a real gap: you need a delay or hold function, but you don't want to reprogram your access panel or pay for a networked controller. The 6062 gives you that without complexity.
Technical Highlights:
- 8A relay contact at 120VAC or 28VDC: Handles most electromagnetic door strikes and alarm solenoids directly. If you're pulling more than 8A, you're already into power relay territory anyway — the 6062 becomes your trigger, not your workhorse.
- 1 second to 60 minutes timing in one module: Field adjustment via dial eliminates the need to swap modules or reconfigure software. Swap a timing value in 30 seconds flat — valuable when you're standing in front of a locked door and the facility manager wants the unlock delay increased by 15 seconds.
- Dual voltage (12VDC or 24VDC selectable): Single spare part covers both old 12V systems and modern 24VDC panels. Reduces your shelf inventory and ensures you're never stuck with the wrong voltage variant on a service call.
- Minimal power draw (3mA standby, 40mA energized): Doesn't stress your control panel's power budget — a critical detail when you're daisy-chaining multiple auxiliary modules in a cramped enclosure.
Deployment Considerations:
- The 6062 is mechanical, not networked — you cannot change timing remotely or log timing adjustments. If audit trails or remote provisioning are required, look at a programmable relay controller instead.
- Temperature range tops out at 49°C (120°F) — suitable for climate-controlled server rooms and indoor enclosures, but outdoor or uninsulated cabinets in hot climates require shielding or temperature management.
- Reset input is helpful for supervisor override, but it's a hardwired input only — no wireless or remote reset unless you add a relay controller upstream.
Best deployment: delayed-release door locks on fail-safe strikes, siren cutoff timers in alarm systems, and guard-tour dialer sequencing where the timing never changes once installed. Set it, forget it, and don't look back.
