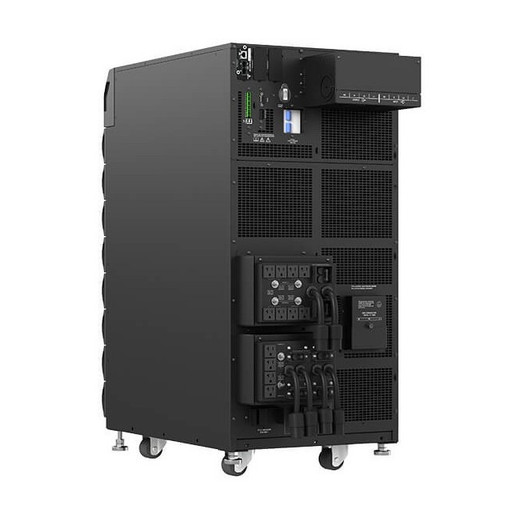

Vertiv AL6A0NHUGNNXLKB 5KVA/4.5KW 208V Lithium-Ion Hot-Swap UPS

Overview

The Vertiv AL6A0NHUGNNXLKB is a 5KVA/4.5KW lithium-ion UPS running on 208/120VAC with approximately 8 minutes of runtime at full load and hot-swappable battery strings — a practical choice for server rooms, edge deployments, and power protection infrastructure where you cannot afford a maintenance window to swap degraded batteries. LiFePO₄ chemistry underpins the safety story: it is one of the most thermally stable lithium chemistries available, dramatically reducing runaway risk in enclosed IT spaces compared to conventional VRLA or NMC alternatives. If you are sizing UPS replacements for a Vertiv power infrastructure stack, this unit's 10-year design life and 5-year combined UPS-plus-battery warranty change the total cost math significantly versus lead-acid refresh cycles every 3–5 years.

Key Features

• LiFePO₄ Lithium-Ion Chemistry: Lithium iron phosphate is the safest lithium variant for enclosed data spaces — thermal stability is built into the chemistry, not just the management layer. That matters when this unit sits in a telecom closet or edge rack with no active cooling. The AL6A0NHUGNNXLKB uses LiFePO₄ specifically, not NMC or NCA, so you are not trading runtime efficiency for a fire risk in a confined enclosure.
• 10-Year Design and Service Life: A well-maintained VRLA UPS realistically delivers 4–6 years before the battery plant needs full replacement. At 10 years of rated service life, this lithium unit can outlast two full lead-acid battery cycles — meaning fewer truck rolls, fewer replacement purchases, and less downtime risk at the exact point a degraded battery would have failed during an actual outage.
• Hot-Swappable Battery Strings: Batteries can be exchanged without shutting down the UPS or dropping the protected load. In a 24/7 environment — security operations centers, surveillance NVR closets, always-on edge servers — this is the difference between a planned 60-second swap during low-traffic hours and a scheduled maintenance outage. Each battery string weighs approximately 46 lbs, which is manageable as a two-person lift without specialized lifting equipment.
• Advanced BMS with Cell-Level Monitoring: The onboard battery management system monitors at the individual cell level, not just the string level. That granularity means early detection of a single degrading cell before it drags down the full string — giving you predictive replacement data rather than a surprise capacity drop during an actual power event.
• Sub-4.5-Hour Recharge Time: After a full discharge, the AL6A0NHUGNNXLKB returns to full charge in under 4.5 hours. For environments that see frequent short outages — utility switching, HVAC brownouts, generator transfer delays — fast recharge means you re-enter a protected state quickly rather than running exposed for half a business day.
• Better Performance at Elevated Temperatures: Lead-acid batteries lose capacity measurably above 25°C and age faster above 30°C — a well-known pain point in edge closets, outdoor enclosures, and facilities without tight CRAC control. This lithium platform performs better at elevated temperatures rather than worse, which extends effective runtime and reduces premature capacity fade in thermally marginal environments.
• 5-Year Warranty Covering UPS and Batteries: Most UPS warranties cover the electronics for 3 years and the batteries separately (often 1–2 years). A 5-year warranty covering both the unit and the battery plant is a materially different value position — particularly relevant when budgeting for capital expense vs. operational maintenance cost over a full refresh cycle.
• Lower Total Cost of Ownership: When you net out reduced battery replacements, lower maintenance labor, longer service intervals, and energy efficiency gains typical of lithium vs. VRLA platforms, the lifecycle cost case for lithium closes within the first or second replacement cycle. The AL6A0NHUGNNXLKB is priced as capital infrastructure, not a consumable.

Integration and Compatibility

The AL6A0NHUGNNXLKB operates at 208/120VAC input and output, which aligns with standard North American single-phase 208V circuits common in commercial data closets and branch-circuit panel feeds to network infrastructure and edge computing equipment. The 5KVA/4.5KW capacity is appropriate for small-to-mid server room loads, consolidated NVR racks, or multi-switch edge deployments where a single UPS needs to carry several kilowatts continuously. Hot-swap capability integrates cleanly with service workflows that prohibit load-shedding during battery maintenance — a requirement increasingly common in SLA-backed managed service contracts. For teams building out UPS infrastructure planning, the 10-year design life simplifies long-range budget models by replacing the 3-year VRLA refresh cycle with a single capital line item.

Frequently Asked Questions

Q: What battery chemistry does the AL6A0NHUGNNXLKB use, and why does it matter for indoor deployments?

A: The AL6A0NHUGNNXLKB uses LiFePO₄ (lithium iron phosphate) chemistry, which is significantly more thermally stable than NMC or NCA lithium variants. In enclosed IT spaces without active fire suppression, LiFePO₄ reduces thermal runaway risk compared to other lithium chemistries — an important safety consideration for telecom closets, edge racks, and server rooms.

Q: What is the warranty on the AL6A0NHUGNNXLKB?

A: Vertiv provides a 5-year warranty covering both the UPS unit and the batteries. This is notably broader than most UPS warranties, which typically cover the electronics and batteries on separate, shorter terms.

Q: Can I replace the batteries on the AL6A0NHUGNNXLKB without powering down the connected load?

A: Yes. The AL6A0NHUGNNXLKB supports hot-swappable battery strings, meaning batteries can be exchanged while the UPS continues protecting the connected load. Each battery string weighs approximately 46 lbs.

Q: How long does the AL6A0NHUGNNXLKB take to recharge after a full discharge?

A: Recharge time is under 4.5 hours from full discharge to full charge, which is significantly faster than most VRLA-based UPS systems. This matters in environments that experience frequent short outages, as it reduces the window during which you are running without full backup protection.

Q: Does the AL6A0NHUGNNXLKB perform differently in warm environments compared to lead-acid UPS systems?

A: Yes, and in a favorable direction. Lead-acid batteries degrade measurably at elevated temperatures, losing capacity and service life. The lithium-ion platform in the AL6A0NHUGNNXLKB performs better at higher temperatures, making it more suitable for edge closets, outdoor enclosures, or any facility where ambient temperature is not tightly controlled.

Q: What is the rated design life of the AL6A0NHUGNNXLKB battery system?

A: The battery system is rated for up to 10 years of service life, compared to 3–5 years typical of VRLA alternatives. This extended service life is a primary driver of the lower total cost of ownership over a full infrastructure lifecycle.

Karl Wilson

The spec that changes the conversation on the AL6A0NHUGNNXLKB is not the 5KVA rating — it is the combination of LiFePO₄ chemistry and hot-swap capability in a single unit. Most installations I evaluate are still running VRLA because the upfront delta looked too large. When you run the numbers over 10 years — two to three VRLA battery plant replacements, associated labor, and the downtime exposure during each swap — the lithium platform closes the gap well before the halfway point of its service life.

Technical Highlights:

• Cell-Level BMS: String-level monitoring tells you a string is failing; cell-level monitoring tells you which cell is leading the failure and how fast. On a 5KVA unit carrying a critical load, that difference is the gap between a proactive planned swap and an emergency middle-of-the-night call when the weak cell drags the full string below threshold during an actual event.
• Sub-4.5-Hour Recharge: In utility-unstable environments — commercial districts with frequent brief outages, facilities near industrial switching gear — fast recharge means you are back to full protection before the next event hits. VRLA units in the same capacity class often run 8–12 hours to full charge after a deep discharge.
• ~46 lb Battery String: At 46 lbs per string, two technicians can execute a hot-swap without a lift or dolly in a standard aisle-width server room. That is a material difference from older high-capacity battery cabinets that required equipment and a cleared aisle.

Deployment Considerations:

• The 8-minute runtime at 5KVA full load is a bridge to generator transfer, not an extended outage buffer. Size your load accordingly — if you are running below 50% of rated capacity, runtime extends proportionally, which is worth modeling before purchase if generator transfer times at your facility run long.
• The 208/120VAC configuration assumes a North American single-phase 208V source. Verify your panel's available circuit rating before committing — a 5KVA load at 208V draws approximately 24A, which requires a dedicated 30A circuit minimum under standard 80% continuous load rules.

The AL6A0NHUGNNXLKB is the right call for security operations centers, surveillance NVR closets, and edge compute deployments where battery maintenance windows are effectively prohibited by SLA and where the facility's temperature control is imperfect — exactly the environments where VRLA age fastest and hot-swap capability pays the largest operational dividend.
