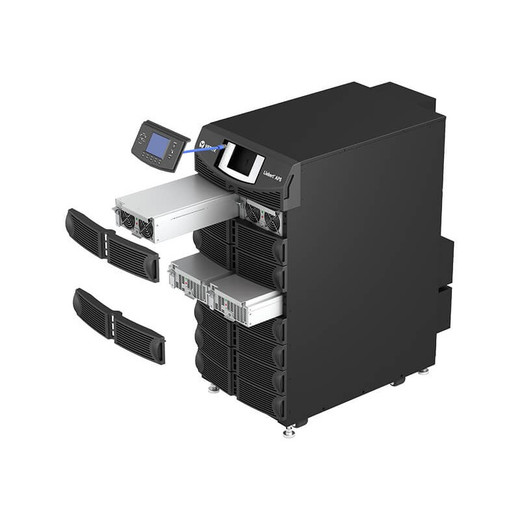

Vertiv AL5A0NHUGNNXLKB 5KVA/4.5KW LiFePO4 Lithium-Ion Hot-Swappable UPS

Overview

The Vertiv AL5A0NHUGNNXLKB is a 5KVA/4.5KW uninterruptible power supply built around lithium iron phosphate (LiFePO4) chemistry — a deliberate departure from legacy VRLA designs that makes a measurable difference in data center, enterprise, and critical infrastructure deployments where battery replacement costs and thermal management are ongoing operational concerns. At roughly 8 minutes of runtime and hot-swappable battery strings, this unit is engineered for environments where maintenance windows are short or non-existent. Explore the full Vertiv power protection catalog for complementary infrastructure solutions.

The 208/120VAC configuration positions this UPS for North American three-phase edge deployments, server room PDU chains, and network equipment racks where dual-voltage output is a requirement. If your facility runs a mix of 208V compute loads and 120V networking gear on the same circuit, the AL5A0NHUGNNXLKB eliminates the need for step-down transformers at the rack level.

Key Features

• LiFePO4 Lithium-Ion Chemistry: LiFePO4 is the thermally stable end of the lithium-ion family — it doesn't undergo the same exothermic runaway reactions as lithium cobalt or NMC chemistries. In a sealed server room or comms closet, that's not a minor detail. You get the energy density of lithium without the fire-suppression liability that concerns facility managers on mixed-use floors.
• Up to 10-Year Service Life: A well-maintained VRLA battery string in a warm room typically lasts 3–5 years. The AL5A0NHUGNNXLKB's lithium cells are rated for up to a 10-year service life — which means fewer replacement cycles, less disposal logistics, and substantially lower total cost of ownership over a decade of operation. For a 5KVA unit running 24/7, that lifecycle difference is measurable in both labor hours and battery procurement costs.
• Hot-Swappable Battery Strings: Each battery string weighs approximately 46 lbs, which is manageable for a two-person swap without a lift. More importantly, hot-swap capability means you can replace a degraded string during business hours without scheduling a maintenance blackout — a significant operational advantage in healthcare, financial, and public safety environments where downtime tolerance is near zero.
• Advanced BMS with Cell-Level Monitoring: The integrated battery management system monitors at the cell level, not just the string level. That granularity matters: a single weak cell in a VRLA string typically goes undetected until it causes a string failure. Cell-level visibility lets you catch degradation early, extend predictive maintenance intervals, and avoid surprise failures during an actual power event.
• Recharge Time Under 4.5 Hours: After a full discharge event, the AL5A0NHUGNNXLKB returns to full charge in under 4.5 hours. Compare that to VRLA designs that can require 8–12 hours for a full recharge cycle — if you're in a utility-unstable region with recurring power events, faster recharge directly reduces your exposure window between incidents.
• Better Performance at Higher Temperatures: VRLA batteries derate significantly above 25°C — the standard rule of thumb is battery life cuts roughly in half for every 10°C above the rated temperature. LiFePO4 chemistry is far more tolerant of elevated ambient temperatures, which translates to predictable runtime in hot aisles, outdoor cabinets, and facilities without precision cooling. You don't need to oversize your HVAC budget to protect battery life.
• Minimal Maintenance Requirements: No electrolyte checks, no equalization charges, no corrosion-prone terminals to inspect quarterly. The AL5A0NHUGNNXLKB's lithium chemistry and advanced BMS handle conditioning autonomously. For UPS and power protection deployments across distributed sites where on-site technician visits are costly, that reduction in scheduled maintenance is a real operational benefit.
• 5-Year Warranty Covering UPS and Batteries: The manufacturer warranty covers both the UPS unit and the battery strings for five years. That's notable — most UPS warranties cover the unit separately from the batteries, and battery warranties on VRLA designs are often 1–2 years. A unified 5-year coverage term simplifies procurement, support contracts, and end-of-life planning for large deployments.

Integration and Compatibility

The 208/120VAC dual-voltage output makes the AL5A0NHUGNNXLKB compatible with standard North American three-phase infrastructure. The hot-swap design accommodates planned battery replacement without load transfer, which integrates cleanly into facilities running parallel or redundant UPS topologies. For environments using managed network switches and IP security infrastructure, the ability to maintain uninterrupted power during battery service eliminates the coordination overhead of synchronized maintenance windows. Organizations evaluating total cost of ownership should review a UPS selection guide to benchmark lithium-ion lifecycle costs against incumbent VRLA installations — the 10-year service life and reduced maintenance overhead typically shift the TCO calculation materially beyond year three.

Frequently Asked Questions

Q: What is the runtime on the Vertiv AL5A0NHUGNNXLKB at full load?

A: The AL5A0NHUGNNXLKB is rated for approximately 8 minutes of runtime at full 5KVA/4.5KW load. Actual runtime will vary based on connected load percentage — partial loads will extend runtime proportionally.

Q: How long does it take to fully recharge the AL5A0NHUGNNXLKB after a discharge event?

A: Recharge time is under 4.5 hours from a full discharge. This is significantly faster than comparable VRLA UPS designs, which typically require 8–12 hours for a full recharge cycle.

Q: Can the batteries be replaced while the AL5A0NHUGNNXLKB is running under load?

A: Yes. The AL5A0NHUGNNXLKB features hot-swappable battery strings, meaning battery replacement can be performed without powering down connected equipment or scheduling a maintenance blackout.

Q: What is the warranty on the AL5A0NHUGNNXLKB?

A: The AL5A0NHUGNNXLKB carries a 5-year manufacturer warranty that covers both the UPS unit and the battery strings — an integrated coverage term that is broader than most VRLA-based UPS warranties, which typically separate unit and battery coverage.

Q: Why does the AL5A0NHUGNNXLKB use LiFePO4 chemistry instead of standard lithium-ion?

A: LiFePO4 (lithium iron phosphate) is thermally stable and does not undergo the same exothermic runaway reactions as lithium cobalt oxide or NMC chemistries. This makes it the appropriate choice for data center and enclosed facility deployments where thermal runaway risk is a safety concern. It also delivers better performance at elevated ambient temperatures compared to VRLA batteries.

Q: What does the advanced battery management system (BMS) on the AL5A0NHUGNNXLKB actually monitor?

A: The BMS monitors at the cell level, providing granular visibility into individual cell health rather than aggregate string performance. This enables early detection of cell degradation, supports predictive maintenance scheduling, and reduces the risk of unexpected string failures during a live power event.

Karl Wilson

When I look at the AL5A0NHUGNNXLKB, the spec that drives the deployment decision is the LiFePO4 chemistry paired with cell-level BMS monitoring — that combination is what separates this from a VRLA replacement cycle you just push out 10 years. You're getting actual visibility into battery health at a granularity that changes how you run your maintenance program.

Technical Highlights:

• 10-Year Service Life: LiFePO4 cells rated to a 10-year service life versus 3–5 years for VRLA in a typical warm-room installation — over a decade, that's potentially two full VRLA replacement cycles you don't procure, ship, or dispose of.
• Sub-4.5-Hour Recharge: After a full discharge event, this unit is back to capacity in under 4.5 hours. In regions with recurring utility instability, that recharge window directly determines your exposure between events — faster is operationally meaningful, not just a spec-sheet differentiator.
• ~46 lb Per Battery String: Hot-swap strings at roughly 46 lbs each are a two-person lift without equipment. That weight class means you can execute a battery swap in a live rack environment without a specialized maintenance crew or lift equipment — real-world maintenance cost reduction.

Deployment Considerations:

• The 208/120VAC dual-voltage output requires confirmation against your facility's feed topology before installation — verify that your PDU chain and transfer switch are configured for the correct voltage legs before commissioning.
• LiFePO4 chemistry tolerates higher ambient temperatures better than VRLA, but the advanced BMS still requires proper airflow around the battery enclosure to maintain cell-level monitoring accuracy over the full service life — don't treat thermal tolerance as permission to eliminate cooling entirely.

The AL5A0NHUGNNXLKB is the right fit for distributed enterprise deployments — branch office server rooms, edge compute nodes, and security operation centers — where scheduled maintenance visits are expensive and battery replacement downtime is not budgeted. The combination of hot-swap capability and a unified 5-year warranty covering both unit and batteries makes procurement and support planning straightforward across a multi-site rollout.
