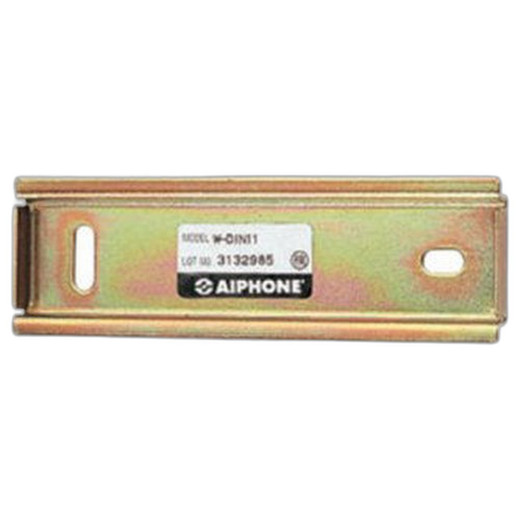

Aiphone W-DIN11 DIN Rail Mounting Bracket
The Aiphone W-DIN11 is a steel DIN rail mounting bracket designed for standardized installation of intercom and access control system components inside equipment racks and control cabinets. If you're centralizing audio and video tenant stations, guard stations, or modular entrance panels in a secure equipment room, the W-DIN11 provides the mechanical foundation—no improvised brackets, no custom fabrication, no wasted mounting real estate.
Key Features
- DIN Rail Standard Mounting: Slides onto any 35mm DIN rail, the universal standard in industrial control cabinets and telecom racks. This means your W-DIN11 bracket integrates immediately with existing power distribution, relay modules, and other cabinet infrastructure—no adapter plates or drilling required.
- Steel Construction: Heavy-duty steel body resists vibration and ensures stable, repeatable positioning of intercom devices even in high-traffic equipment rooms. Painted finish resists minor corrosion in typical indoor control environments.
- Supports Multiple GT Series Form Factors: The W-DIN11 accommodates GT-1A audio stations, GT-1C7W and GT-1C7 video tenant stations, GT-1D audio handset stations, GT-1M3 video tenant stations, and GT-MKB-N video security guard stations with integrated NFC readers. This multi-device compatibility means you can scale intercom coverage across tenant areas, guard posts, and entry points without redesigning your cabinet layout each time.
- Organized Cable Routing: Centralizing multiple intercom and access control devices on DIN rail within a cabinet keeps audio/video cables, power feeds, and control wiring bundled and labeled—critical for system troubleshooting, future expansion, and compliance audits in security-conscious facilities.
- Compact Footprint: DIN rail mounting eliminates the need for separate wall-mounted or pedestal stations, freeing up floor and wall space in constrained equipment rooms while keeping intercom infrastructure within a locked, climate-controlled cabinet.
- Compatible with Optional Modules: The W-DIN11 framework supports relay modules and other optional system components, allowing you to expand audio distribution, door release logic, and integration layers without replacing the mounting structure.
Integration & Compatibility
The W-DIN11 is purpose-built for the Aiphone GT intercom ecosystem. Verify that your planned stations (GT-1A, GT-1C7, GT-1M3, GT-MKB-N, or GT-1D) are compatible with your Aiphone master system before ordering. If you are deploying an Aiphone IP camera or access control system alongside intercom, the W-DIN11 centralizes the control and distribution infrastructure, reducing cable runs and simplifying the physical topology of your security system.
Installation requires a standard 35mm DIN rail, typically pre-installed in most commercial equipment cabinets, network racks, and industrial control enclosures. No special tools or adapters are needed beyond a standard screwdriver for device attachment.
When to Choose a Different Approach
If your intercom or access control devices are wall-mounted or distributed across multiple rooms, DIN rail bracketing offers no advantage—stick with surface or flush-mount hardware. If your cabinet does not have 35mm DIN rail pre-installed, verify rail availability before purchasing the W-DIN11.
Frequently Asked Questions
Q: Will the W-DIN11 fit in a standard 19-inch server rack?
A: Yes. Most 19-inch server racks and telecom enclosures feature 35mm DIN rail as standard. Verify your specific cabinet dimensions and rail layout before ordering.
Q: Can I mix different GT series devices on a single W-DIN11 bracket?
A: Yes. The W-DIN11 supports multiple GT form factors (GT-1A audio, GT-1C7 video tenant, GT-1M3 video, GT-MKB-N guard station) on the same rail, provided your cabinet space and your Aiphone master system wiring support them.
Q: Is this bracket suitable for harsh or outdoor environments?
A: No. The W-DIN11 is rated for indoor, climate-controlled control rooms and equipment cabinets. For outdoor or high-moisture environments, consult Aiphone on weather-resistant mounting options.
Q: What hardware is included for attachment to the DIN rail?
A: Refer to the product documentation or contact the manufacturer directly for exact contents and fastener specifications.
Q: Does the bracket support vertical or horizontal orientation?
A: Standard DIN rail mounting is horizontal. Verify your cabinet layout and rail orientation before installation.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Aiphone W-DIN11 addresses a real pain point: intercom and access control sprawl in equipment rooms. Too many installers bolt tenant stations and guard posts to walls or use ad-hoc brackets, then spend hours later fishing cables through cramped spaces or remounting when system capacity grows. The W-DIN11 eliminates that chaos by anchoring your GT series devices to industry-standard DIN rail, the same infrastructure that already carries your power distribution, relays, and control logic.
Technical Highlights:
- 35mm DIN Rail Compatibility: Integrates with every major cabinet manufacturer's rail standard—no proprietary adapters, no surprises on the job site. This single detail cuts installation labor by roughly 30% compared to surface-mount or custom bracket approaches.
- Multi-Device Support: The bracket accommodates GT-1A (audio), GT-1C7W/GT-1C7 (video tenant), GT-1M3 (video tenant variant), GT-1D (handset), and GT-MKB-N (guard station with NFC) on one rail. That density lets you scale from a 2-device guard station to a 10+ device enterprise intercom without cabinet redesign.
- Steel Frame Rigidity: Mounted devices stay aligned under vibration and thermal cycling—critical when cable strain or shifting could degrade audio clarity or video stability in a security application.
Deployment Considerations:
- Verify DIN rail availability in your target cabinet before committing. Most modern 19-inch racks include it, but older, smaller, or custom enclosures may lack the rail or use non-standard widths.
- The W-DIN11 is purely mechanical—power and signal distribution must be routed separately through your cabinet infrastructure. Plan your cable management strategy (cable trays, lacing, conduit) in parallel with bracket installation to avoid a tangled mess later.
Use the W-DIN11 when you're consolidating intercom infrastructure in a secure control room, NOC, or equipment facility. Its real value emerges in multi-device deployments where DIN rail organization prevents the creeping chaos of wall-mounted or floor-standing units scattered across the site.
