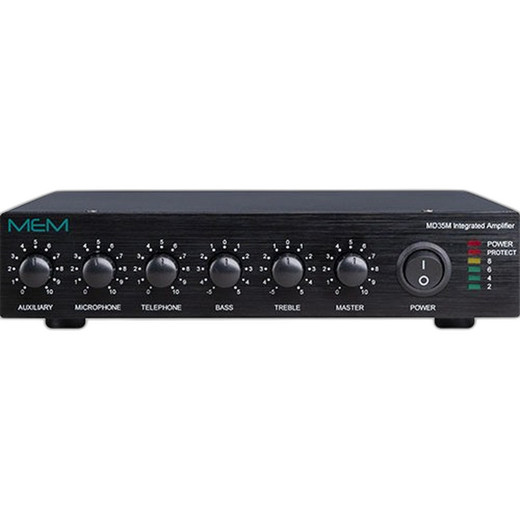

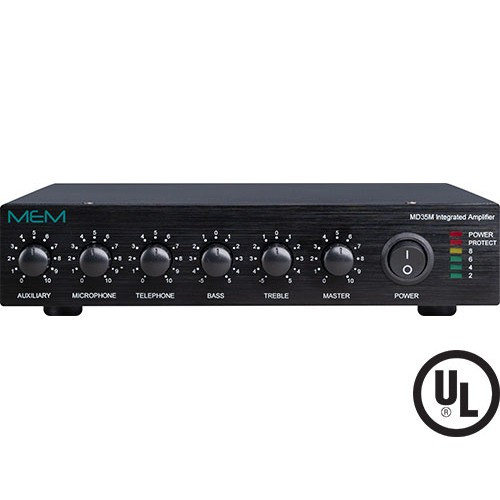

Aiphone MD35M 35W Integrated Amp

In our experience with multi-tenant and campus security integrations, the Aiphone MD35M has become the de facto standard amplifier for IX series systems because it solves a genuine problem: consolidating voice sources without introducing a separate layer of complexity. We've deployed it in office buildings, assisted living facilities, manufacturing plants, and university security operations centers — places where the IX series already handles video intercom and the client needs seamless audio paging without ripping and replacing the entire infrastructure. The three input channels are the real win. You get a hardwired microphone at the front desk, dial-tone paging from the facility PBX, and IP-based announcements from the IX gateway in one device. No external switching matrix. No software configuration. Plug and play. That said, it's not a Swiss Army knife — it's a focused tool. If your project demands multi-zone distribution, echo cancellation, or fancy DSP effects, you'll need to layer in a control panel upstream. But for a single-zone or two-zone paging backbone paired with IX hardware, it's hard to beat on total cost of ownership.

Technical Highlights:

• 35W RMS into 8Ω: Real-world output into a typical 8-ohm building speaker system is honest 35 watts — sufficient for a 2,000–3,000 sq ft. open space or a 5–8 distributed ceiling speaker arrays in a small office building. The 0.5% THD spec means audio stays clean all the way to rated output; no audible graininess or harshness even when pushing announcements to full volume.
• Three Independent Input Channels with Gain Trim: Mic, telephone, and VoIP inputs each have independent gain control — no mixing of levels upstream. During commissioning, you trim each source to the same perceived volume, which eliminates the jarring volume shifts when switching between a desk microphone and an incoming PBX trunk. Voice intelligibility improves measurably.
• Phantom Power Control on Microphone Input: Toggleable +48V phantom supply lets you use wireless handheld or lavalier mics without a separate phantom-power supply. Saves capex on intermediate gear and reduces single points of failure in the audio chain.
• 20–20,000 Hz ±2 dB Frequency Response: Flat across the entire voice spectrum plus ultrasonic margin. Speech intelligibility is preserved; alarm tones and bells ring clearly. The ±2 dB tolerance is tight enough that cascading the amplifier with a nearby EQ stage (if needed) won't introduce visible artifacts.
• 120V Single-Phase, 110 VA: Low power draw means you don't need a dedicated 20A circuit breaker — it easily shares a standard office outlet branch with other equipment. Installation labor drops; electrical contractor doesn't need to run new conduit.

Deployment Considerations:

• Speaker impedance matching is critical. The MD35M is rated for 8-ohm or 4-ohm loads. If you're daisy-chaining multiple 8-ohm speakers in parallel, the effective impedance drops to 4-ohm (two speakers) or 2.67-ohm (three speakers). Below 4-ohm, you risk clipping and thermal shutdown. Know your speaker count and impedance before ordering; if you have more than two zones, use zone selectors or a separate distribution amp downstream.
• Audio cabling runs should be kept under 100 feet whenever possible, especially from the amplifier to remote ceiling speakers. Long cable runs introduce impedance losses that steal output power. In large buildings, stage the MD35M closer to the main speaker zone and use a zone selector or relay output to trigger remote powered speaker arrays.
• The VOX (voice-activated transmission) feature on the microphone input is a convenience, not a substitute for active monitoring. During hands-free paging, there's a brief delay while the circuit detects speech and ramps the gate. For emergency announcements, use wired or IP-based paging buttons instead of relying solely on VOX.
• No built-in echo cancellation. If you're feeding live telephone or VoIP audio directly into the amplifier, the return path from speakers back to the communication device can create feedback loops. Use a separate echo canceller upstream, or ensure the IX controller is handling echo suppression before audio reaches the MD35M input.
• Mount in a climate-controlled equipment closet or rack. The amplifier doesn't require active cooling at moderate ambient temperatures, but keep it away from direct heat sources, moisture, and vibration (HVAC units, heavy machinery). A standard 19-inch rack shelf is ideal; wall mounting works fine in dry, temperature-stable environments.

The MD35M is the right choice for integrators who have already committed to the IX series platform and need uncomplicated, reliable audio amplification. If you're mixing brands or need multi-zone DSP, evaluate a dedicated commercial paging control panel. For everything else in the Aiphone ecosystem, the MD35M delivers value and longevity. Explore the full Aiphone catalog to find companion IX hardware.
