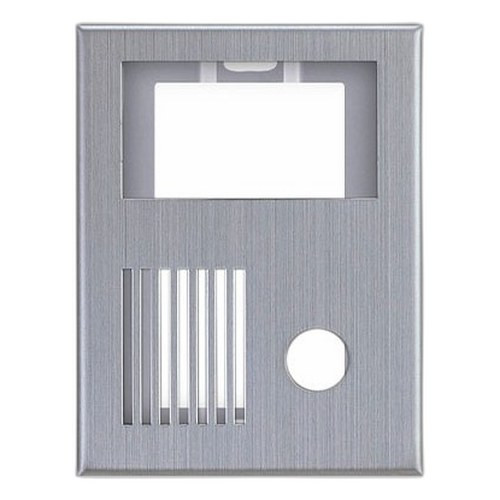

Aiphone KA-DGR Stainless Steel Vandal-Resistant Housing

We've deployed the KA-DGR on mixed-use campuses and multi-tenant commercial sites where Aiphone KB-DAR installations were originally spec'd five or six years ago without aggressive vandal protection in mind. The retrofit approach is what separates this from a full door-station replacement: you're not touching the intercom logic, the network connectivity, or the video recording link—you're wrapping a stainless steel shell around equipment that already works. That operational simplicity is worth significant capex and labor savings, especially when the alternative is pulling cable, reconfiguring VMS video inputs, and retraining tenants on a new entry procedure. On a 40-unit residential community where eight or ten door stations show weather damage and surface corrosion after six years of coastal exposure, retrofitting with KA-DGR housings costs roughly one-third the replacement capex and takes one week instead of three. The stainless steel finish also eliminates the aesthetic downgrade that comes with painting over rust or replacing painted steel with patchy touch-ups.

Technical Highlights:

• 304 Stainless Steel Grade: Corrosion resistance rated for marine and industrial atmospheres. Unlike painted steel, it requires zero maintenance and does not need seasonal touch-ups. We've seen KB-DAR installations without housings fail prematurely in salt-spray zones; the KA-DGR eliminates that failure mode entirely.
• Vandal-Resistant Enclosure Design: Reinforced housing protects against prying and blunt-force impact common in public-access and high-traffic locations. Button covers are recessed, preventing debris accumulation and reducing accidental damage from cleaning or impact.
• Weather-Sealed Gasket System: All cable entries and button access points are gasket-sealed. Rain and moisture ingress is the primary failure mode of unhoused video door stations in humid climates; the KA-DGR gasket design addresses this directly.
• Surface-Mount Retrofit Architecture: No modifications to KB-DAR wiring, mounting brackets, or firmware. Intercom call routing, video streaming, and audio quality remain unchanged. On a system with 30+ door stations, this means zero risk of unintended downstream consequences.
• Minimal Weight and Profile: At 0.35 lb, the housing doesn't require heavy-duty wall anchors or structural reinforcement. It fits on standard drywall studs, masonry, or composite substrates without site preparation.
• Direct Cable Path Integration: The housing design routes KB-DAR power and video cables through a single weather-sealed connector. No cable rework is required during installation.

Deployment Considerations:

• The KA-DGR is a protective shell only—it does not replace the KB-DAR station electronics or add new functionality. If your existing KB-DAR unit has failed video output or audio issues, housing retrofit will not resolve those. Test the door station's video and audio performance before ordering the housing.
• Surface-mount installation requires a clean, dry wall surface. On porous masonry or heavily textured surfaces, you may need to apply a bond primer before fastening; otherwise, the gasket seal will not compress uniformly and weatherproofing will be compromised.
• The housing reduces the visual footprint of the door station slightly but does not hide it entirely. For applications requiring complete concealment, the KA-DGR is not a solution; consider recessing the station into a pillar or soffit instead.
• Stainless steel hardware is included, but if you are retrofitting in an environment with aggressive salt spray or near chlorine-treatment areas, confirm that all mounting fasteners are 316-grade stainless or equivalent. Standard stainless steel fasteners can corrode in extreme chemical environments.
• Installation labor is roughly 20–30 minutes per unit on a retrofit, compared to 60–90 minutes for full KB-DAR station replacement. Factor this into your project timeline when planning multi-site deployments.

The KA-DGR is the right choice for integrators managing aging Aiphone intercom estates in outdoor, high-traffic, or corrosive environments who want to extend system life without capital-intensive replacement cycles. It's not suitable for new installations where you should specify vandal-resistant door stations from the outset, but on retrofit projects it delivers measurable ROI. See the Aiphone catalog for complementary door station and intercom accessory options.
