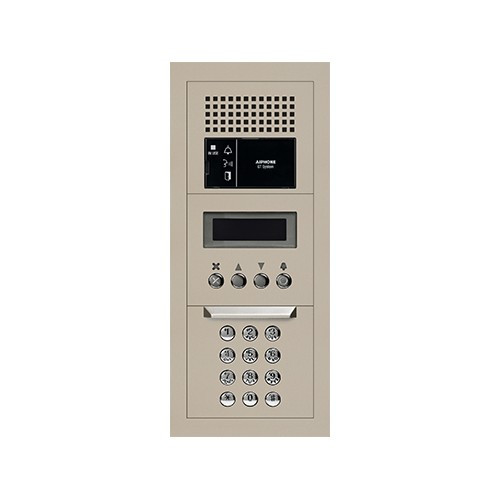

Aiphone GTA-DESB Modular Audio Entrance Panel Kit

Aiphone GTA-DESB Modular Audio Entrance Panel Kit

Overview

The Aiphone GTA-DESB is a 1 x 3 modular audio entrance station engineered for multi-tenant residential and commercial access control deployments. This integrated kit assembles three functional modules—audio communication, vacuum fluorescent digital directory display, and 10-key keypad—into a single compact entrance panel assembly. The system delivers two-way hands-free audio from the entrance directly to tenant stations with electronic ring tone signaling, and the modular architecture scales to support up to 16 entrance panels, 4 video guard stations, and 500 tenant stations per installation. If your deployment requires video-capable entrance panels or network integration, the Aiphone access control systems family includes video-enabled options.

Key Features

• Modular 1 x 3 Configuration: Three modules (GT-DB audio, GT-NSB digital display, GT-10K keypad) mount together in a single frame—cuts installation labor and preserves mounting surface real estate compared to installing separate panels across a building entrance.
• Vacuum Fluorescent Digital Directory Display: The GT-NSB module provides a readable VFD screen for customizable greeting messages, tenant directory listings, and real-time system status feedback—tenants see directory information without fumbling for paper rosters or leaflets.
• 10-Key Direct Dial Keypad (0–9, *, #): Full numeric keypad allows tenants to input unit numbers or access codes directly without navigating through a directory menu—faster call completion for time-sensitive arrivals.
• Two-Way Hands-Free Audio Communication: Built-in microphone and speaker on the entrance panel support full-duplex voice from entrance to tenant station. Single-channel privacy mode ensures communication cannot be monitored by other parties on the system—important for residential security and identity verification.
• Audio Module Status Indicators: Orange in-use LED and audio guidance indicators (door call-in, talk mode, door release confirmation) provide clear visual feedback to visitors and staff about system state—reduces confusion and support calls.
• 24V DC Standardized Power: Operates on 24V DC via PS-2420UL power supplies specified per system configuration. Electronic ring tone is sourced from the entrance station itself—no separate bell or relay circuit required.
• Extended Wiring Distances: Supports cable runs up to 980 feet from the main control unit (GT-BC) to the farthest entrance panel and up to 980 feet to farthest audio tenant station. Uses Aiphone #872002 2-conductor PE-insulated, non-shielded 20AWG cable (11.05 pf/ft)—simplifies long-distance installations in large buildings or campuses without active repeaters.
• Flush or Surface Mount: Kit includes GF-3B flush back box for recessed installation into wall cavities and GF-3F 3-module frame for direct assembly. Optional steel GT-103HB bracket supports surface mounting on the exterior of the building or over existing wall surfaces—accommodates retrofit scenarios where recessing is impractical.
• Compact Panel Footprint: Outer dimensions 12-5/8" H x 5-5/16" W x 5/8" D (excluding optional rain hood or surface mount box)—fits within standard 2-gang electrical box or modular panel frame without oversizing the entrance aesthetically.
• Scalable Multi-Tenant Architecture: Single system supports maximum 4 tenant stations per suite, up to 500 total tenant stations across the building, and 4 concierge or guard monitoring stations for centralized oversight—enables flexible deployment from small residential buildings to large commercial properties.

Integration & Compatibility

The GTA-DESB integrates into the Aiphone GT series platform. Compatible audio tenant stations include the GT-1A audio open-voice station and GT-1D audio handset station. For mixed audio/video deployments, pair the entrance panel with GT-1C7W app-compatible audio/video stations or GT-1M3 video stations featuring 3.5" displays. Video guard monitoring stations such as the GT-MKB-N with NFC reader capability can be deployed in parallel. Optional relay signaling integrates via the GT-RY external signaling module, and panic switch integration is supported through the GFK-PS N/C panic switch for emergency guard calls. The modular design allows future expansion with GT-VB camera modules to upgrade entrance panels to video capability without replacing the entire assembly.

What's in the Box

• GT-DB audio module with integrated microphone and speaker
• GT-DBP panel for GT-DB audio module
• GT-NSB vacuum fluorescent digital display module
• GT-NSP-L left panel for GT-NSB
• GT-10K 10-key keypad module (0–9, *, #)
• GF-10KP panel for GT-10K keypad
• GF-3B 3-module back box for flush mounting
• GF-3F 3-module frame assembly

Frequently Asked Questions

Q: Can I add video capability to the GTA-DESB later?

A: Yes. The modular design supports future addition of GT-VB camera modules to upgrade the entrance panel to video-enabled operation. You won't need to replace the audio, display, or keypad modules.

Q: What's the maximum system capacity for tenant stations?

A: A single GT series system supports up to 500 total tenant stations distributed across suites (maximum 4 per suite), plus up to 16 entrance panels and 4 guard stations.

Q: How far can I run cable from the main control unit to this entrance panel?

A: The GTA-DESB supports cable runs up to 980 feet from the GT-BC main unit to the farthest entrance panel. Use Aiphone #872002 2-conductor 20AWG cable for audio circuits.

Q: Does the GTA-DESB require a separate power supply?

A: Yes. The system operates on 24V DC via PS-2420UL power supplies. The number of supplies required depends on your total system load and configuration.

Q: Can I mount this entrance panel on the exterior of the building?

A: Yes. The kit includes a flush-mount back box (GF-3B) for recessed installation and an optional steel GT-103HB bracket for surface mounting. For outdoor exposure, verify that your mounting location, rain hood, and surrounding enclosure meet your local weather and temperature requirements.

Q: What's the difference between the GT-1A and GT-1D tenant stations?

A: The GT-1A is an open-voice audio station; the GT-1D uses a handset. Choose based on tenant preference and noise environment. Both are compatible with the GTA-DESB entrance panel.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Aiphone GTA-DESB (often searched as GTA DESB) makes sense for multi-tenant properties where you need to consolidate entrance signaling, directory lookup, and keypad entry into one compact assembly. The 980-foot cable run support is genuinely useful in larger buildings—many competing systems top out at 500 feet without repeaters. The vacuum fluorescent directory display is bright and readable in daylight, which matters more than you'd think if your entrance faces east or west.

Technical Highlights:

• Modular Architecture (1 x 3 Format): The three independent modules (audio, display, keypad) mount together but can be serviced or upgraded individually. If the display fails, you swap the GT-NSB without touching the audio circuit—reduces downtime compared to monolithic entrance panels.
• Extended Wiring Distance (980 feet): Most four-wire intercom systems begin to experience signal loss beyond 500 feet. The GTA-DESB spec of 980 feet to the farthest entrance and 980 feet to the farthest tenant station means you can deploy entrance panels in large warehouses, multi-building campuses, or horizontal sprawl properties without active repeaters or signal conditioning equipment.
• 10-Key Direct Dial + VFD Directory: Tenants can either browse the directory on the VFD screen or punch in a known unit number on the keypad—reduces call setup time and eliminates the frustration of searching paper directories or cycling through menu screens.
• Two-Conductor Wiring (Aiphone #872002): Uses standard 20AWG, PE-insulated, non-shielded cable at 11.05 pf/ft. This is not high-impedance or specialty cabling—you can source it from any electrical distributor and run it alongside power and data in conduit without isolating it. Simplifies design and reduces material cost for large buildings.
• 24V DC Standardized Power: All three modules operate on the same 24V supply via standard PS-2420UL power modules. No mixed voltage domains or special power conditioning—straightforward electrical design.

Deployment Considerations:

• This is an audio-only entrance panel. If your property requires resident photo verification or package tracking at the entrance, you'll need to integrate GT-VB camera modules or step up to a full video model in the GT series. Audio alone is insufficient for high-security or concierge-heavy properties.
• The GTA-DESB supports up to 500 tenant stations and 4 guard stations per system. If you're designing a mixed-use campus or a property that will grow past 500 units, verify early that your control architecture (GT-BC main unit and system expansion cards) can handle the load. A second independent system is sometimes cleaner than overloading one GT-BC.
• Installation of the flush-mount back box (GF-3B) requires cutting a properly sized cavity into drywall, tile, or concrete. If your building has finished walls and you can't easily route cables through wall runs, the optional surface-mount bracket (GT-103HB) is faster to install but more visible. Plan the mount strategy during design, not during rough-in.
• The VFD display requires 24V power continuously to maintain readable brightness in daylight. If you're operating in a location where power is intermittent, the display will dim significantly when the system is on standby or during voltage sag—not ideal for a building entrance that must remain functional during utility events.

The GTA-DESB is the right choice for mid-to-large residential or commercial properties that need straightforward audio intercom at the entrance, with directory and keypad convenience, and can accept a 980-foot wiring limit. If your property is smaller (under 100 units) or needs video entry verification, a single-module audio panel or the full video GT-1M3 video station may be more cost-effective. For properties with distributed entrances (front, back, loading dock, visitor gates), the modular design and extended wiring distance make this kit a solid baseline.
