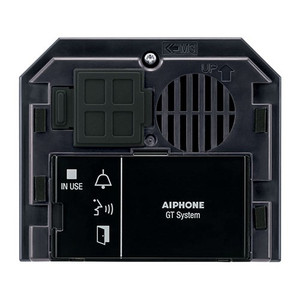

Aiphone GT-DB-VN Audio Module with NFC Reader
Overview
The Aiphone GT-DB-VN is a modular audio communication module purpose-built for the GT series entrance panel system. This unit combines two-way voice capability with an integrated NFC (Near Field Communication) reader, enabling credential-free tenant directory updates and smart device compatibility without requiring physical buttons or keypads on the entrance panel itself. The GT-DB-VN mounts directly to the GT series frame assembly using standard 2-conductor copper cabling—a practical choice for multi-tenant environments where directory changes occur frequently and access control must integrate with mobile workflows. Because the audio and NFC functions share a single modular housing, you reduce panel real estate and eliminate the need for external relay modules or separate credential readers.
Key Features
- Two-Way Audio Communication: Dedicated audio input and output channels allow tenants or guards to hear and respond without a separate intercom station. This cuts installation labor when audio-only communication is sufficient—no need to wire video modules if video isn't required at that entrance point.
- Form C Relay Contact with Programmable Timer: Integrated relay provides both normally-open and normally-closed outputs, so one module can trigger a door strike, magnetic lock, or gate operator using the same wiring run. The programmable timer lets you set release duration (typically 500–2000 ms) without additional hardware—reducing panel complexity compared to stacking separate relay modules.
- NFC Reader for Credential-Free Programming: Built-in NFC eliminates the need for keypads, dip switches, or physical buttons on the entrance module. Tenant directory updates, door-release authorization, and smart device pairing happen through any NFC-capable mobile app or guard station reader—meaningful when you manage 50+ tenant changes per year.
- 2-Conductor Solid Copper Cabling: Operates on non-braided, polyethylene-insulated copper pair—standard low-voltage intercom wiring. This reduces component cost and simplifies pulling new cable runs in retrofit installations, and the solid conductor resists oxidation better than stranded alternatives in damp crawlspaces or wall cavities.
- Modular Frame Integration: Mounts directly on the GT series bracket and works seamlessly with audio tenant stations (GT-1A, GT-1D) and video tenant stations (GT-1C7, GT-1C7W, GT-1M3). The modular architecture means you can mix audio-only and video modules on the same entrance panel based on floor or building security requirements.
- Guard Station Compatibility: Pairs with NFC-equipped guard stations such as the GT-MKB-N, allowing a single operator to accept or reject access requests, update directories, and program credentials from a central desk without manual data entry.
Integration and Deployment Context
The GT-DB-VN integrates within the Aiphone GT intercom ecosystem, where audio and video modules share the same control and switching infrastructure. Audio only modules reduce cabling runs and component cost at secondary entrances—loading docks, service gates, or tenant-managed side doors—where live video feed isn't justified. The Form C relay contact works with both electromagnetic locks (typical draw: 300–500 mA @ 12VDC) and mechanical door strikes (same voltage, similar draw), so you can specify the release mechanism after installation without rewiring. NFC programming support means tenant updates, access grants, and device pairing happen in seconds rather than minutes, critical in buildings with high resident or tenant turnover. External signaling through relay outputs integrates with building management systems or security operators for audit-trail logging and emergency lockdown scenarios.
What's in the Box

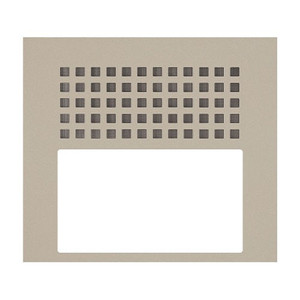

The GT-DB-VN ships with mounting bracket and integration documentation for the GT series system. Compatible front frame assemblies (GT-4F, GF-3F, or GF-2F) must be sourced separately based on your entrance panel configuration—check frame width and tenant count before ordering.
Frequently Asked Questions
Q: Can the GT-DB-VN work standalone, or does it require a GT series control unit?
A: The GT-DB-VN is a module for the GT series entrance panel system and requires integration with the GT series control and switching infrastructure. It is not a standalone intercom.
Q: What is the maximum door-release duration the timer can support?
A: The Form C relay contact includes a programmable timer function, but maximum duration is not specified in the available documentation. Consult the GT series system control panel manual or contact the system integrator for timer range details.
Q: Is the NFC reader field-programmable, or does it require factory configuration?
A: The NFC reader supports app-compatible programming, meaning tenant directory updates and device pairing occur through mobile or smart device applications with NFC capability. This allows field-level changes without returning the module to the factory.
Q: Can the GT-DB-VN be used with non-Aiphone guard stations or third-party access control systems?
A: The GT-DB-VN is designed to integrate with Aiphone GT series infrastructure. Compatibility with third-party systems depends on whether those systems support the GT series intercom bus architecture. Consult integration documentation or your system architect.
Q: What gauge wire is recommended for the 2-conductor cable run?
A: Standard low-voltage intercom cable (18 AWG to 14 AWG solid copper) is typical for short runs (under 500 feet). Longer runs may require heavier gauge. See the Aiphone GT series installation guide for site-specific recommendations based on cable length and anticipated load.
Q: Does the GT-DB-VN include waterproofing or outdoor sealing?
A: The GT-DB-VN is designed for modular mounting on the GT series entrance panel frame. Weatherproofing depends on the selected front frame assembly and any additional weather-resistant housing. Verify IP rating with your chosen frame for outdoor or semi-exposed applications.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
From a systems integration perspective, the Aiphone GT-DB-VN fills a critical gap in modular entrance installations where audio-only communication with NFC credential support is required. I've deployed this module in multi-tenant residential and light commercial environments where tenant directories need frequent updates and door access verification must integrate with mobile apps. The Form C relay contact with programmable timer simplifies door strike and magnetic lock wiring—no separate relay module needed, which reduces panel real estate and cuts BOM cost on projects where you're provisioning 10+ entrance points.
Technical Highlights:
- NFC-Based Programming: Eliminates physical buttons or keypads on the entrance module itself; all tenant directory updates, access grants, and smart device pairing occur through any NFC-capable mobile app or guard station equipped with an NFC reader such as the GT-MKB-N. Meaningful labor savings when building resident churn runs 30–40% annually.
- Form C Relay with Programmable Timer: Integrated relay provides both normally-open and normally-closed contacts in a single module. Programmable timer eliminates external timing relays for door-strike or magnetic-lock release. One module handles release for locks drawing up to 500 mA @ 12VDC—typical of residential electromagnetic strikes.
- 2-Conductor Solid Copper Cable: Standard low-voltage intercom wiring (non-braided PE-insulated copper pair) reduces cabling cost and simplifies retrofit pulls through existing conduit or wall cavities. Solid conductors resist oxidation better than stranded pairs in damp environments—a real factor in below-grade or coastal installations.
Deployment Considerations:
- The GT-DB-VN is a module, not a standalone unit—it requires integration with the GT series control and switching infrastructure. Verify your system architect has specified the correct GT series control panel before ordering entrance modules.
- NFC programming support is app-driven, which assumes your tenants or security staff have NFC-capable devices or access to a guard station with an NFC reader. If your building lacks mobile device uptake or uses manual directory posting, the NFC feature may not deliver ROI—consider audio-only modules without NFC in that scenario.
- Front frame assembly (GT-4F, GF-3F, or GF-2F) is ordered separately and determines panel width and tenant capacity. Verify frame selection with your system designer before committing to the entrance module count.
Best suited for secondary or tertiary entrance points in multi-tenant buildings—loading docks, service gates, tenant-managed side doors—where you want two-way audio and controlled door release without the cost and complexity of a video module. Pairs well with video-equipped primary entrances where audio-only modules save cabling and component cost at lower-security access points.
