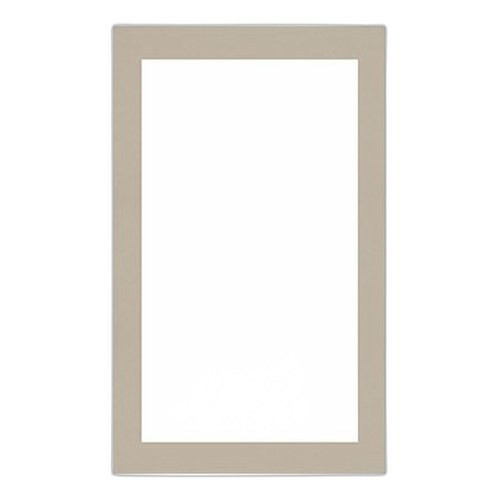

Aiphone GF-2F 2-Module Front Frame for GT Series
The Aiphone GF-2F is a structural frame component designed specifically for the GT Series modular entrance station platform. This is not a standalone camera or audio device — it is the mounting and interface foundation that holds up to 2 modular components (audio modules, camera modules, or a combination) in a single physical frame. If you are building a multi-unit or mixed-function entrance installation, understanding how the GF-2F fits into your GT Series architecture is critical to system planning.
Overview
The GF-2F provides the structural backbone for entrance configurations where you need both audio and video functionality, or redundant/supplementary modules, in a single frame unit. The frame integrates with existing Aiphone IP camera and audio modules from the GT product line and accepts standard GT Series wiring and control infrastructure. Vandal-resistant construction means the frame itself resists intentional damage — important for unsecured or high-traffic entry points where the mounting hardware may face physical abuse.
The modular design allows you to populate the GF-2F with different module combinations (e.g., one audio module + one camera module, or two camera modules for redundant coverage). This flexibility reduces the number of separate mounting points you need to manage and simplifies wiring runs to a single location.
Key Specifications & Deployment Benefits
- 2-Module Capacity: Accepts up to 2 GT Series modules per frame. This means one physical installation point can handle mixed audio-video configurations or dual cameras for overlapping coverage — reducing the number of holes you drill in a façade or panel.
- Vandal-Resistant Construction: The frame is engineered to withstand deliberate impact or tampering. In residential common areas, commercial lobbies, or any unsecured entry, this prevents an intruder from simply tearing the hardware off the wall. It does not make the device impossible to damage, but it raises the barrier significantly.
- GT Series Compatibility: Works with GT-DB audio modules and GT-VB camera modules. This interchangeability is your ticket to staged deployments — you can start with audio-only and add cameras later, or vice versa, without replacing the frame.
- Standard Wiring Integration: Connects to existing GT Series control infrastructure and wiring standards. If you already have a GT Series system in place, the GF-2F uses the same connector types, power distribution, and signaling — no separate integration layer required.
- Multi-Tenant & Residential Suitability: Designed for environments where you need flexible, modular entry points — apartment buildings, office parks, gated communities, or commercial access lobbies. The 2-module capacity is ideal for apartment-unit-level or floor-level entry stations where one tenant or department needs both call capability and visitor identification.
Integration & Compatibility
The GF-2F is compatible with entrance station components in the Aiphone GT Series ecosystem. It integrates with GT-DB audio modules (for call and intercom), GT-VB camera modules (for video capture and display), and related control panels. Installation follows standard GT Series guidelines — mount the frame to a wall, post, or cabinet, populate it with your chosen modules, and connect to the central control unit via the same cabling scheme your other GT devices use.
If you are mixing GT Series with other Aiphone product lines (e.g., IX or JP series), verify module compatibility with Aiphone documentation — the GF-2F is GT-specific and does not accept modules from other product families.
When to Choose a Different Model
If you need a single-module frame, consider the 1-module variant within the GT Series. If you require higher video resolution (the GT-VB modules deliver 5MP), check whether IP cameras with higher megapixel counts paired with a separate audio device may be more cost-effective for your coverage area. For outdoor installations in extreme weather, consult the IP and IK ratings of the specific modules you plan to install — the frame's vandal resistance is one layer, but module-level environmental ratings (IP66, IP67) must also meet your conditions.
Frequently Asked Questions
Q: Is the GF-2F suitable for outdoor installation?
A: The frame itself is vandal-resistant, but outdoor suitability depends on the specific modules you install. Check the environmental ratings (IP and IK codes) of your GT-DB audio and GT-VB camera modules. The frame provides structural protection; weatherproofing comes from the individual modules and proper enclosure sealing.
Q: Can I install just one module in the GF-2F?
A: The frame is designed for 2 modules, but consult Aiphone installation guides for whether single-module installation is supported. Using a single-module frame variant may be simpler if you do not require the second module slot.
Q: What wiring standard does the GF-2F use?
A: It integrates with GT Series control infrastructure and wiring standards. Refer to the GT Series Installation Guide for cabling specifications and connector types.
Q: Can I upgrade modules later (e.g., add a camera to an audio-only setup)?
A: Yes. The modular design allows you to populate one slot with an audio module and add a camera module to the second slot at a later date, without replacing the frame.
Q: How does the vandal-resistant frame compare to a standard plastic frame?
A: Vandal-resistant construction uses reinforced materials and fastening to resist impact and tampering. It does not make the device indestructible, but it significantly slows deliberate damage — worthwhile in high-traffic or unsecured areas where casual or opportunistic theft is a concern.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The GF-2F is a frame component, not a camera or audio device — that distinction matters. You are buying the structural and electrical backbone that connects up to 2 GT Series modules (audio, video, or a mix). The 5MP GT-VB camera modules you populate into it deliver the actual image capture. The frame itself does the heavy lifting: it holds everything in place, routes power and signal, and resists physical damage.
Technical Highlights:
- 2-Module Capacity: One physical installation point handles two functional devices. This cuts your mounting effort in half compared to installing a separate audio box and camera box side-by-side, and it simplifies the wiring run to the control panel.
- Vandal-Resistant Mechanical Design: Reinforced fastening and enclosure material mean intentional damage takes longer. In unsecured common areas (lobbies, courtyards, apartment entries), this deters casual tampering without requiring a cage or protective shroud.
- GT Series Modularity: No proprietary connectors or custom adapters. GT-DB and GT-VB modules slot in and out using standard GT wiring and control protocols. If you need to swap a module later, you do not replace the frame.
Deployment Considerations:
- The frame is the structural component; environmental protection (IP66, IP67) comes from the modules you install inside it. Do not assume outdoor weather-sealing — verify the modules match your installation location.
- The 2-module design is a strength for mixed-function entries, but if you only need audio or only need video, a single-module frame variant may be simpler and lower-cost. Do not over-specify.
- Vandal resistance slows damage but does not prevent a determined attack. This is a legitimate access-control hardening measure, not an anti-theft guarantee. Pair it with physical security practices (monitoring, lighting, controlled access zones).
Deploy the GF-2F in residential or commercial multi-tenant environments where you want flexible, modular entry points without managing separate mounting locations. Apartment buildings, office parks, and gated communities benefit most from the 2-module capacity and the ability to mix audio and camera functionality in a single footprint.
