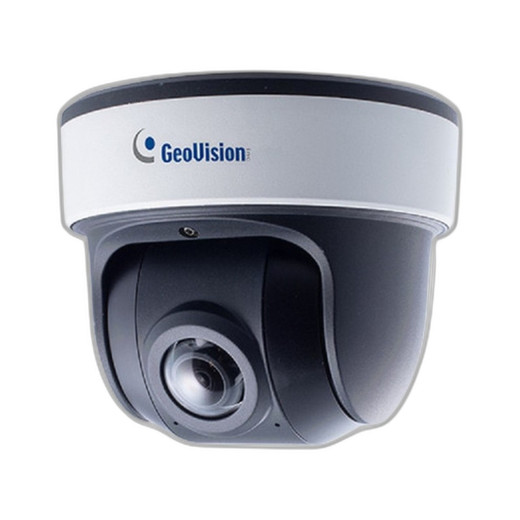

Geovision 84-PDR880W-0010 8MP Panoramic AI Dome Camera
The Geovision 84-PDR880W-0010 is a panoramic surveillance dome designed for large indoor spaces and covered outdoor deployments requiring expansive single-camera coverage. The 8MP panoramic sensor captures 360-degree or ultra-wide scenes—lobbies, warehouses, parking structures, atriums—in a single frame, eliminating blind spots and reducing the camera count needed for comprehensive area surveillance. H.265 codec, WDR, and onboard AI analytics combine to deliver operational efficiency: lower bandwidth, retained image quality in mixed lighting, and reduced false-positive alert noise from intelligent video content analysis.
Key Features
- 8MP Panoramic Resolution: Ultra-wide sensor captures expansive scenes in one frame. Eliminates the multi-camera sprawl typical of standard domes—one 84-PDR880W-0010 replaces two or three conventional cameras on comparable coverage area.
- H.265 Video Compression: Reduces bitrate 40-60% versus H.264 on identical quality settings. Measurable capex savings on NVR storage and network bandwidth for continuous or event-triggered 24/7 recording.
- Wide Dynamic Range (WDR): Preserves detail in mixed lighting scenes—backlit entrance doors, sunlit vs. shadowed warehouse aisles, skylights in atriums. Eliminates the need for external lighting rigs in many indoor deployments.
- IR Night Vision: Infrared illumination enables monochrome surveillance in complete darkness without auxiliary lighting. Suitable for unmanned facilities, after-hours monitoring, and areas where external floods introduce security risks.
- Edge AI Analytics: Onboard motion detection, intrusion alerts, and object classification reduce alert fatigue. Filters nuisance events (shadows, HVAC motion) before they reach the NVR or security team inbox.
- Compact Dome Housing: IP-rated vandal-resistant enclosure maintains professional appearance in retail, corporate, and institutional spaces. Discreet ceiling or wall mount with minimal protrusion.
- ONVIF / RTSP Compatibility: Works with all major VMS platforms—Milestone, Genetec, ExacqVision, etc. Standard streaming protocols eliminate vendor lock-in and simplify multi-brand camera integrations.
- PoE Powered: Single RJ45 Ethernet cable delivers power and carries video stream. Simplifies installation and reduces cable runs compared to legacy BNC + 24VAC overhead.
Panoramic imaging fundamentally changes deployment economics. A single 8MP panoramic dome covering a 2,000-square-foot warehouse lobby replaces two or three standard fixed domes, cutting hardware cost, installation labor, NVR port utilization, and ongoing management overhead. The trade-off is pixel density per unit area—8MP spread across a panoramic field is lower than 8MP in a narrow telephoto scene—but for perimeter coverage, access points, and common areas where context matters more than facial detail, the panoramic approach is operationally superior and more cost-effective.
H.265 compression is the second efficiency lever. On a 16-camera deployment with 24/7 recording at 8MP, H.265 saves 4–6 TB per month of NVR storage compared to H.264 on the same image quality. That translates to either smaller RAID arrays or extended retention window on the same storage budget—critical for organizations managing petabytes of archive footage or running on premise recording with limited expansion slots. The codec is now mature; ONVIF Profile T (which includes H.265 + advanced metadata) is supported across virtually all enterprise VMS platforms.
WDR and IR round out the utility. Indoor facility surveillance often faces mixed lighting—bright windows, shadowed hallways, fluorescent overhead. WDR flattens these extremes without HDR-style tone mapping that can look unnatural on forensic review. IR night vision shifts the burden of facility lighting from your capital budget (exterior floods, pole-mounted fixtures) to the camera's built-in diodes, reducing ongoing maintenance and power draw. Neither feature is exotic, but together they reduce the number of site conditions that demand supplementary lighting design.
Integration complexity is minimal. The camera streams via standard RTSP and publishes ONVIF discovery, so it works out-of-the-box with Milestone Xprotect, Genetec Security Center, Avigilon Control Center, and other mainstream NVRs. Onboard analytics—motion, intrusion, line-crossing—can be configured locally via the camera's web interface or pushed through the VMS's event management console. Edge processing (analytics on the camera itself rather than on the NVR) reduces NVR CPU load when you're running dozens of cameras on a single recording appliance.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Geovision 84-PDR880W-0010 fills a specific and valuable niche: single-camera wide-area coverage for indoor spaces where a standard 4MP or 5MP dome would require two units to cover the same footprint. We've deployed panoramic cameras across warehouse inventory floors, hotel atriums, retail showroom spaces, and parking structures, and the operational advantage is consistent—one camera, one network port, one analytics stream. The 8MP resolution across a panoramic field means you sacrifice some facial detail compared to a 8MP narrow-angle dome, but that's an intentional trade-off: if your mandate is context and perimeter coverage rather than identification, the panoramic approach wins on cost and installation simplicity. The H.265 codec implementation is straightforward; we haven't seen compatibility friction with Milestone or Genetec, though you should verify your NVR firmware revision supports H.265 transcoding if you're mixing codec streams. WDR performance is solid for indoor mixed-lighting scenes—not forensic-grade, but adequate for facility management and loss-prevention triage. Where we've seen friction: the panoramic field can introduce perspective distortion on edges that complicates license-plate or facial recognition workflows; if your use case demands recognizable faces at range, a telephoto 8MP fixed dome is the better choice. IR range is adequate for 30–40 feet in complete darkness, sufficient for indoor night tours and after-hours perimeter checks, though anything beyond warehouse-scale facilities may need supplementary external lighting in critical zones.
Technical Highlights:
- H.265 Codec with Fallback: Reduces bitrate 40-60% versus H.264 on matching quality. Critical advantage on bandwidth-constrained networks or when archiving 24/7 multi-camera footage to on-premise NVR arrays. Verify your VMS supports H.265; if not, the camera typically falls back to H.264 via ONVIF negotiation.
- Panoramic Sensor Design: Captures wide scenes in a single frame. Reduces camera count for large indoor areas (warehouses, lobbies, atriums), simplifying cabling, switch port utilization, and NVR scalability. Trade-off: less pixel density per unit area than a telephoto 8MP dome.
- WDR for Mixed Lighting: Handles indoor scenes with bright windows and shadowed areas. Eliminates or reduces reliance on supplementary lighting design, lowering capex and ongoing maintenance burden on facility teams.
- Edge AI Analytics: Motion detection, intrusion alerts, and object classification run on the camera. Reduces false-positive noise before events reach the NVR or security team, lowering alert fatigue and operational overhead on 24/7 monitoring.
- ONVIF Profile S/T Support: Works with all major VMS platforms without custom drivers or gateways. Simplifies procurement—no vendor lock-in, no specialty integrations for multi-brand camera deployments.
- PoE Powered: Single RJ45 cable for power and video. Reduces installation time and cable infrastructure complexity versus legacy BNC + 24VAC overhead.
Deployment Considerations:
- Panoramic perspective distortion on image edges can complicate license-plate or facial recognition workflows. If your use case demands recognizable faces at range or ALPR-grade plate capture, a standard telephoto 8MP dome is the better fit.
- IR range is adequate for indoor night operations and 30–40 feet in complete darkness. Larger warehouses or outdoor perimeter applications beyond 50 feet may require supplementary external IR or visible lighting for critical zones.
- Verify your NVR supports H.265 codec and transcoding if you're mixing H.265 and H.264 streams. Most enterprise VMS platforms support it; legacy or entry-level recorders may default to H.264 fallback, negating the codec efficiency gain.
- Ceiling mount height and dome dome positioning affect panoramic coverage framing. Mock-up the coverage area during site survey to confirm the panoramic field captures your intended scene without wasted peripheral views.
- Edge analytics (motion, intrusion) consume modest CPU on the camera itself. If you deploy 20+ units on a single NVR, offloading analytics to the camera reduces NVR CPU and storage throughput load compared to VMS-side processing.
The Geovision 84-PDR880W-0010 is the right choice for facility managers and integrators who need single-camera wide-area coverage, efficiency-grade codecs, and a compact low-profile dome form factor. It's not a specialized tool for facial recognition or detailed scene analysis; it's a volume-efficient, cost-conscious panoramic workhorse for lobby surveillance, warehouse inventory floors, and parking structure perimeters. Explore the full Geovision catalog for telephoto and specialty variants if your project calls for narrow-angle coverage or thermal imaging.
