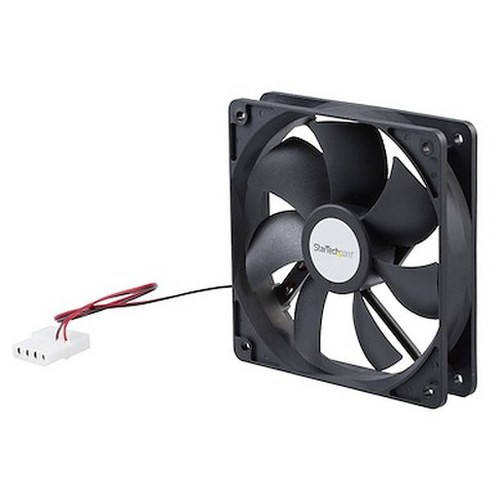

StarTech FANBOX12 120mm Dual Ball Bearing Chassis Cooling Fan

Overview

The StarTech FANBOX12 is a 120mm dual ball bearing chassis fan built for continuous-duty operation in environments where thermal management is non-negotiable — think DVR enclosures, NVR chassis, server cabinets, and any surveillance or networking hardware running 24/7. At 72.94 CFM with a 2000 RPM motor and a standard LP4 power connector, it drops into most existing PC and rack-mount chassis without any adapter work. If you have an open 120mm fan bay and a spare LP4 header, the FANBOX12 is a direct, no-fuss solution.

Key Features

• 72.94 CFM Airflow: That's a meaningful volume of air moved through a chassis per minute — enough to measurably drop CPU and chipset temperatures in mid-tower and rack-mount enclosures running continuous workloads like video recording or network switching. More CFM means shorter heat paths from hot components to the exhaust.
• Dual Ball Bearing Construction: Sleeve bearings wear faster in anything but horizontal mounting, and they're prone to failure under sustained heat. Dual ball bearings in the FANBOX12 handle any mounting orientation — top, side, rear — and are rated to operate from -10°C to 80°C, making them appropriate for warm equipment rooms or outdoor-rated enclosures where ambient temps climb.
• 2000 RPM Motor Speed: Spins fast enough to push serious airflow without requiring a variable-speed controller. A fixed-speed fan at 2000 RPM is predictable — you know exactly what airflow and noise you're getting at all times, which matters in precision thermal planning.
• 30 dBA Noise Level: For a 120mm fan moving nearly 73 CFM, 30 dBA is relatively quiet. Office-adjacent server rooms or open-plan security operations centers won't suffer from fan roar. In a typical rack with several fans, this unit won't be the dominant noise contributor.
• LP4 Molex Connector with 12-Inch Cable: LP4 is nearly universal in older and mid-range DVR/NVR chassis, server power supplies, and custom enclosures. The 12-inch cable run gives you enough reach to route cleanly to a power supply without zip-tie gymnastics — important in dense rack installs where cable management is already a challenge.
• 12V DC Input: Draws from the standard 12V DC rail — the same rail your drives and PCIe cards use — so there's no need for a separate power brick or secondary supply. Just tap an available LP4 connector and it's running.
• 120mm Form Factor: The most common standardized fan size in PC and 1U/2U rack hardware. Replacement or augmentation installs in seconds with four standard screws. No custom brackets, no adapters in most cases.
• -10°C to 80°C Operating Range: That upper end covers even heavily loaded closet installs or poorly ventilated equipment rooms. The lower end means it'll spin up cleanly in cold-start environments without bearing stiction issues that plague cheaper fan designs.
• Black Plastic Housing: Neutral finish works in any enclosure color scheme, and plastic keeps weight at 4.4 oz — light enough that it won't shift center of gravity or require reinforced mounting in mobile or vehicle-mounted installations.

Integration and Compatibility

The FANBOX12 is compatible with any chassis or enclosure that accepts a standard 120mm fan and provides an LP4 power output. This includes the vast majority of desktop tower cases, 2U and 4U rack-mount servers, custom-built DVR/NVR enclosures, and network appliance chassis. No driver, no software, no firmware — it's purely passive from a system perspective. If your motherboard or controller doesn't expose an LP4 header directly, a standard LP4 to 3-pin or 4-pin fan adapter (sold separately) will bridge the gap, though speed monitoring won't be available without that adapter. For deployments requiring fan speed reporting in a VMS or IPMI-managed environment, verify your chassis fan header type before ordering.

Frequently Asked Questions

Q: What power connector does the FANBOX12 use?

A: The FANBOX12 uses a standard LP4 (Molex 4-pin) connector and draws 12V DC. It is compatible with any power supply or chassis that provides an LP4 output.

Q: How loud is the FANBOX12 during operation?

A: The FANBOX12 operates at 30 dBA, which is relatively quiet for a fan moving 72.94 CFM. It's suitable for office-adjacent equipment rooms or open security operations environments.

Q: Can the FANBOX12 be mounted in any orientation?

A: Yes. The dual ball bearing design supports any mounting orientation — horizontal, vertical, or angled — without accelerated wear. Sleeve-bearing fans are sensitive to orientation; this one is not.

Q: What is the operating temperature range of the FANBOX12?

A: The FANBOX12 is rated to operate from -10°C to 80°C, making it appropriate for warm equipment closets, industrial enclosures, and environments with elevated ambient temperatures.

Q: What warranty does the FANBOX12 carry?

A: The FANBOX12 comes with a 2-year manufacturer warranty.

Q: Will the FANBOX12 fit a standard 120mm fan bay?

A: Yes. The fan measures 4.7 in x 4.7 in x 1.0 in (L x H x W), which matches the standard 120mm mounting pattern used across the majority of PC chassis, NVR enclosures, and rack-mount hardware.

James Everett

When I spec additional chassis cooling for a surveillance rack, the bearing type is the first thing I look at — not the CFM number. The FANBOX12 uses dual ball bearings, which is the right call for 24/7 NVR and DVR enclosures where the fan never stops spinning. Sleeve bearings fail faster in high-temp, continuous-duty installs; ball bearings in this unit are rated all the way to 80°C ambient, which is a real margin in a packed equipment closet running eight hard drives and a hot-running capture card.

Technical Highlights:

• 72.94 CFM Airflow: At 2000 RPM, this fan moves enough air to meaningfully reduce hot-spot temperatures in mid-tower NVR builds — particularly useful when the stock fan count was designed for a lighter workload than continuous 24/7 multi-channel recording.
• 30 dBA at Full Speed: Fixed-speed 120mm fans at 2000 RPM frequently hit 35–38 dBA. The 30 dBA spec here means you can install this in a security operations room without adding a constant background noise complaint from staff.
• 12-Inch LP4 Cable: Long enough to route cleanly across most mid-tower and 2U chassis without forced bends near the connector — a small detail that matters when you're doing a tidy install in a permanent rack that won't be touched for years.

Deployment Considerations:

• The LP4 connector is passive — no fan speed reporting to the motherboard unless you add an LP4-to-3pin adapter. If your chassis controller monitors fan RPM for thermal alerts, plan for that adapter in your BOM before deployment.
• At 4.7 in x 4.7 in x 1.0 in and 4.4 oz, this fits standard 120mm bays cleanly, but verify your chassis fan bay depth — some compact 1U enclosures have shrouded bays that won't clear a full 25mm-thick fan frame.

The FANBOX12 is the right augmentation fan for a custom-built or OEM NVR chassis running continuous high-channel recording loads where the stock cooling was clearly under-specced — specifically in warm-room installs where ambient temperatures push 30°C or above and thermal throttling is already showing up in your system logs.
