Description

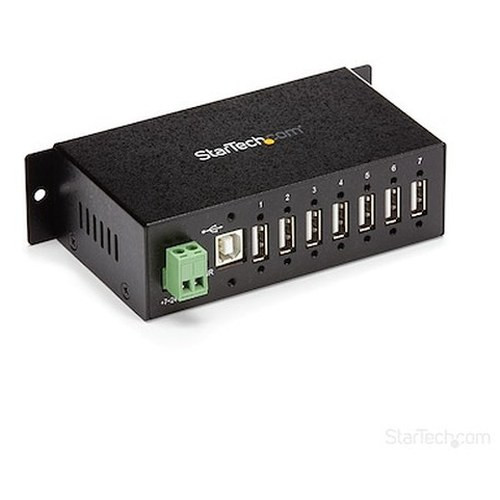

StarTech ST7200USBM 7-Port USB 2.0 Hub

Overview

The StarTech ST7200USBM provides a straightforward solution to expand USB connectivity in environments where space is limited or robust mounting is required. This 7-port USB 2.0 hub allows you to connect multiple peripherals, such as keyboards, mice, webcams, or data loggers, from a single USB connection. It's designed for industrial settings, server rooms, or any workstation needing reliable USB expansion, supporting data transfer rates up to 480Mbps. The ST7200USBM accepts a wide DC input range (7-24V) via a terminal block, enabling integration into existing power infrastructure.

Compatibility

This USB 2.0 hub is compatible with standard USB 2.0 devices and hosts. It functions with Windows, macOS, and Linux operating systems without requiring additional drivers. It is suitable for connecting devices to industrial PCs, NVRs, or any system requiring additional USB ports for peripherals like barcode scanners, GPS receivers, or diagnostic tools.

Installation Notes

The hub offers versatile mounting options, including wall, DIN rail, and desk placement. It features integrated steel mounting brackets for permanent installation and includes a steel chassis for durability. The unit is protected against electrostatic discharge (ESD) up to +/-15kV air and +/-8kV contact, and surge protection up to 350W, safeguarding connected devices from power fluctuations. Operating temperature range is 0°C to 55°C (32°F to 131°F).

What's in the Box

  • 1x ST7200USBM USB Hub
  • 1x USB 2.0 Cable (3.3 ft / 1 m)
  • 1x Terminal Block Power Connector
  • 1x Mounting Bracket (pre-attached)
  • 1x DIN Rail Clip (pre-attached)
  • 1x User Manual
Specifications
Ports: 7
Interface: USB 2.0
Data Transfer Rate: Up to 480Mbps
ESD Protection: +/-15kV (Air), +/-8kV (Contact)
Surge Protection: 350W
Power Input: 7-24V DC Terminal Block
Operating Temperature: 0C to 55C
Storage Temperature: -20C to 85C
Humidity: 5~95% RH
Mounting: Wall, DIN Rail, Desk
Product Length: 5.2 in
Product Width: 2.4 in
Product Height: 1.4 in
Product Weight: 10.0 oz
Color: Black
Material: Steel
Warranty: 2 Years
Brand: StarTech
MPN: ST7200USBM
Type: Mounting Bracket
Connectivity: USB
Power: 350W
