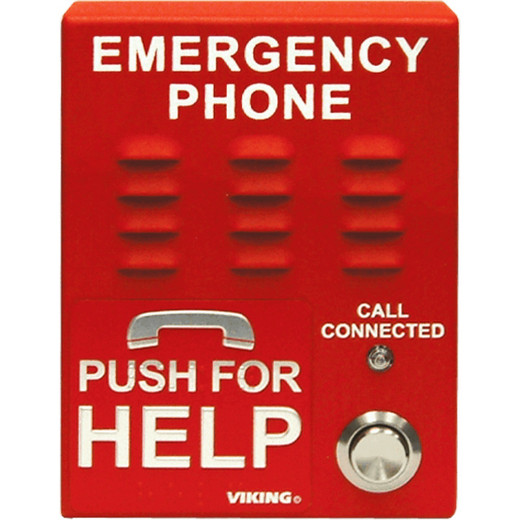

Viking E1600A ADA Emergency Phone IP66 Surface Mount Dialer

Viking Electronics E1600A ADA Emergency Phone with Dialer and Voice Announcer

The Viking Electronics E1600A is a red, ADA-compliant emergency phone designed for elevator shafts, stairwells, parking structures, and other code-mandated call points where reliable one-touch communication is non-negotiable. Telephone-line powered with a 24V DC / 20mA minimum loop current requirement, the E1600A needs no dedicated power supply run — if you have a copper pair, you have a working phone. The red powder-coat finish and "Emergency Phone" verbiage satisfy ADA signage requirements out of the box, reducing code-compliance legwork on new construction and retrofit jobs alike.

When This Is the Correct Choice

Deploy the E1600A where the local AHJ requires a dedicated emergency phone with ADA compliance and you're working in an environment with extreme temperature swings or moisture exposure. The rated operating range of -30°F to 170°F handles unheated parking decks in northern climates and sun-baked mechanical rooms equally well. The IP66 rating on EWP-variant chassis means sustained water jets won't compromise the enclosure — right for covered outdoor call stations, pool areas, and industrial floors.

Integrators specifying Viking Electronics emergency communication across multi-building campus deployments will find the touch-tone programmability useful: dial-out numbers and voice announcer messages can be set from any touch-tone phone without opening the chassis, which matters when you're commissioning 20 stations across a facility and need repeatability without a laptop on-site.

Key Features

• Telephone Line Powered (24V DC / 20mA min): No 120V AC homerun required. Any active copper pair from your existing POTS infrastructure or analog FXS port feeds the unit — simplifies rough-in on elevator cab retrofits where running additional circuits is costly.
• ADA Compliant with Voice Announcer: Meets elevator and emergency phone ADA requirements including audible status feedback. Eliminates a common inspection failure point on commercial builds without requiring separate signage or add-on modules.
• IP66-Rated Enclosure (EWP Models): Direct water jets and total dust ingress protection. Suitable for covered outdoor stations, wash-down environments, and transit infrastructure where a standard indoor phone would fail within a season.
• Push Button Switch Rated IP67: The call button itself exceeds the enclosure rating — rated for temporary full submersion. In practice, this means the most abuse-prone component won't be the failure point in wet environments.
• Operating Range -30°F to 170°F: Covers unheated northern parking structures in winter and rooftop mechanical penthouses in summer without heater kits or thermal enclosures adding cost and complexity.
• 14-Gauge Marine Grade 316 Stainless Steel (EWP Models): 316 SS resists chloride-driven corrosion — the right call for coastal installations, natatorium emergency stations, and chemical processing environments where 304 SS or painted steel corrode prematurely.
• Touch-Tone Programmable Dialer: Program dial-out numbers remotely from any touch-tone phone. No proprietary software, no on-site laptop — useful for facilities management teams updating dispatch numbers after after-hours changes.
• Surface Mount Only: Straightforward installation against any flat wall surface. Factor this into rough-in planning for flush-mount code requirements — surface mount means you need wall depth clearance, not a cut-in box.

Integration and Compatibility

The E1600A integrates with standard analog telephone infrastructure and is compatible with analog FXS ports on most VoIP gateways, giving sites that have migrated off POTS a straightforward path to maintain code-required emergency phone coverage. The BLK-4 Control Module (120V AC / 12V DC 500mA) is available separately for applications requiring local power control or relay output. For large campus deployments, pair with a managed PoE switch infrastructure supporting analog gateways to consolidate emergency phone management. Consult your access control or building automation integrator regarding relay integration if monitored call status is required by the AHJ.

Frequently Asked Questions

Q: Does the E1600A require a dedicated power supply?

A: No. The E1600A is telephone line powered, requiring only 24V DC and 20mA minimum loop current from a standard POTS line or analog FXS port. No separate power supply run is needed in typical installations.

Q: Is the E1600A ADA compliant for elevator emergency phones?

A: Yes. The E1600A meets ADA requirements for elevator and emergency telephones, including the voice announcer function that provides audible feedback to callers.

Q: What is the IP rating of the E1600A EWP models?

A: The EWP (Extreme Weather Protection) chassis carries an IP66 rating, protecting against sustained water jets and complete dust ingress. The push button switch itself is rated IP67.

Q: Can the E1600A be programmed without opening the chassis?

A: Yes. Dial-out numbers and voice announcer settings can be programmed from any touch-tone phone, so you can update dispatch numbers or messages remotely without physical access to the unit.

Q: What is the operating temperature range of the E1600A?

A: The E1600A is rated from -30°F to 170°F, making it suitable for unheated parking structures, rooftop locations, and industrial environments with extreme temperature swings.

Q: Is the E1600A flush-mount or surface-mount?

A: Surface mount only. Plan rough-in accordingly — a flush-mount cut-in box is not applicable. Wall depth clearance for the enclosure is required.

Karl Wilson

The E1600A is one of those products that earns its keep by solving a very specific code-compliance problem without adding infrastructure complexity. Telephone-line powered at 24V DC / 20mA minimum means every ADA elevator call station on your job can be fed off existing analog infrastructure or a single VoIP gateway with FXS ports — no electrician pulling 120V circuits to each cab.

Technical Highlights:

• IP66 Enclosure + IP67 Push Button: The enclosure handles sustained water jets; the call button exceeds that rating with IP67 submersion tolerance. In harsh environments, the button is almost always the first failure point — Viking addressed it directly.
• -30°F to 170°F Operating Range: Covers northern unheated parking decks in January and rooftop mechanical rooms in August without any supplemental heating or cooling accessories, keeping BOM and maintenance costs down.
• 316 Marine-Grade Stainless Steel: On coastal or natatorium installs, 316 SS versus standard 304 is a meaningful long-term corrosion difference — this isn't a spec you want to value-engineer away on a 20-year building asset.

Deployment Considerations:

• Surface mount only — confirm with the AHJ whether surface-mount satisfies the architectural finish requirement before rough-in. Some jurisdictions or architects will push back on protrusion in high-traffic corridors.
• The BLK-4 Control Module (120V AC / 12V DC 500mA) is a separate accessory for relay/power control applications. If your AHJ requires monitored call status output, budget and spec the BLK-4 at the design phase — it is not included.

For ADA emergency phone compliance on parking structures, natatoriums, or coastal transit facilities where corrosion and weather resistance are primary concerns, the E1600A EWP with 316 SS chassis is the right call over generic indoor-rated emergency phones that will require replacement within a few years of outdoor exposure.
