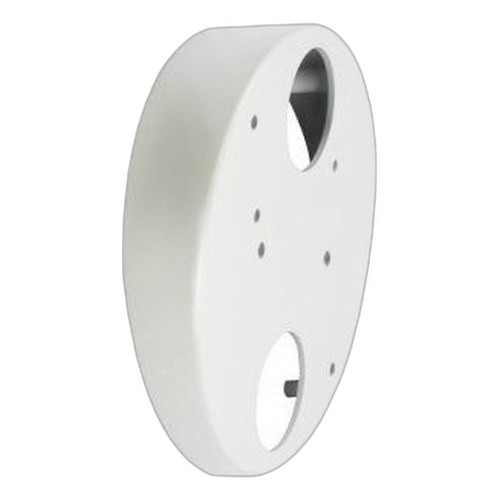

ACTi PMAX-0330 10-Degree Tilted Wall Mount for Outdoor
Overview
The PMAX-0330 is a wall-mounted bracket engineered for outdoor hemispheric camera installations. The 10-degree tilt angle addresses a real problem in outdoor surveillance: dome lens glare and suboptimal vertical aiming when mounting to flat building facades or eaves. This mount keeps your camera lens away from direct sun reflection while allowing precise downward-angle positioning without requiring ceiling or pendant hardware. Designed for perimeter monitoring, building facades, and any deployment where wall-mounted hemispheric cameras are the practical choice over roof or soffit installation.
Compatibility
The PMAX-0330 supports ACTi hemispheric camera models requiring wall-mount deployment in outdoor environments. Confirm your specific camera model's mounting interface (standard wall-mount base) before ordering. The tilted design is optimized for typical eave and soffit mounting scenarios where a fixed vertical wall surface is your primary anchor point. If you are deploying an outdoor IP camera with a non-hemispheric form factor (bullet, box, turret, PTZ), this mount is not the correct choice—those require standard horizontal or adjustable bracket mounts.
Installation Notes
Mount to solid masonry, concrete, or structural framing using appropriate anchors for your wall type (not included). The 10-degree tilt is fixed—no post-installation angle adjustment. Verify your camera's weight (check the camera datasheet) does not exceed the bracket's load rating. Position the mount away from direct rain splash zones where possible; although rated for outdoor use, minimize water pooling at the base. Ensure cable routing (power, network) does not kink or stress where it exits the mount bracket.
What's in the Box
- 1x tilted wall-mount bracket (PMAX-0330)
