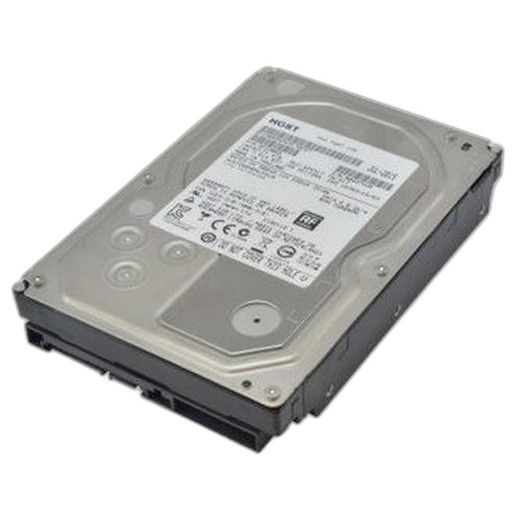

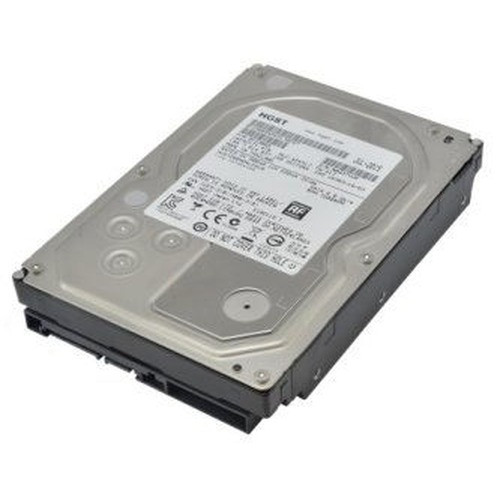

ACTi PHDD-2501 4TB 3.5" Surveillance Hard Disk Drive
The ACTi PHDD-2501 is a 4TB 3.5" SATA hard disk drive spinning at 7200 RPM with 128MB cache buffer, purpose-built for sustained video recording in ACTi NVR systems and compatible third-party surveillance storage deployments. This capacity and speed profile is engineered for mid-scale surveillance installations where you need reliable multi-stream write performance without oversizing storage infrastructure. The drive's sustained throughput supports 4–8 concurrent camera feeds at 1080p to 4MP resolution on systems with RAID or pooled storage configurations.
Key Features
- 7200 RPM Spindle Speed: 7200 RPM with 128MB cache buffer enables sustained throughput for multi-camera recording. Eliminates the latency and thermal throttling issues common in slower consumer-grade drives.
- 4TB Capacity: 4TB per bay supports 7–14 days of continuous recording from 4–8 cameras depending on resolution and bitrate. Balances uptime and archive depth without requiring external networked storage.
- 3.5" SATA Form Factor: Standard 3.5" SATA 6Gb/s interface fits all ACTi NVR and standard NAS drive bays. Requires no adapters or enclosures—drops directly into existing 3.5" mounting brackets.
- Surveillance-Class Workload Rating: Designed for continuous video recording duty cycles (24/7 sustained writes). Outperforms consumer/desktop drives which throttle under 24-hour write loads.
- 128MB Cache: Larger cache buffer improves performance under burst writes (scene changes, alarm-triggered high-bitrate recording). Reduces seek latency on multi-stream playback.
- Compact Physical Profile: 4" W × 1" H × 5.78" D and 715g weight enable tool-free installation in standard NVR chassis. No special mounting hardware required beyond drive bay brackets.
- 3-Year Manufacturer Warranty: Full factory warranty covers defects in materials and workmanship across the warranty period. ACTi and affiliated channels honor warranty claims directly.
Deployment Context and NVR Compatibility
The PHDD-2501 is qualified for ACTi's mid-range NVR lineup, including the ENR-140 (4-bay desktop configuration), ENR-240 (16-channel rackmount), and Acti mini NVR appliances (ENR-010P, ENR-020P). It also integrates with any standard NAS or general-purpose surveillance storage accepting 3.5" SATA 6Gb/s drives—Synology, QNAP, and Seagate-compatible enclosures recognize it without driver installation. However, verify your NVR firmware supports the 4TB capacity before installation; some legacy ACTi models (released pre-2015) cap bay capacity at 2TB per slot due to firmware limitations. Consult the NVR's user manual or contact ACTi support if you are uncertain.
Power draw during sustained recording is 8–10W—well within the thermal budget of desktop and rackmount NVR power supplies. No PoE or external power adapter is required; the drive draws power exclusively from the NVR's internal PSU via the SATA power connector. Installation requires standard 3.5" mounting brackets (typically supplied with your NVR appliance, not included with the drive itself). No firmware updates or special configuration is needed beyond inserting the drive into an available bay and allowing the NVR to detect and format it.
Recording Throughput and Practical Capacity
On a typical ACTi NVR with RAID 5 or RAID 6 redundancy, you can expect 7–14 days of continuous rolling-buffer recording from a 4-camera deployment at 1080p 4Mbps bitrate per stream. On higher-resolution or higher-bitrate streams (4MP+, 8Mbps), retention drops to 3–7 days. The 128MB cache and 7200 RPM spindle speed ensure write performance remains stable even during peak load (e.g., motion-triggered high-bitrate recording on multiple cameras simultaneously). Unlike consumer drives, the PHDD-2501 does not thermally throttle under 24/7 duty; sustained seek latency and rewrite performance remain consistent across the NVR's operating temperature range.
If your deployment requires longer retention (30+ days) or higher bitrate streams, consider populating multiple drive bays or cascading a secondary external NAS for archive storage. ACTi NVR platforms support ONVIF-compliant network storage APIs, allowing archived footage to be offloaded to network pools without NVR firmware modification.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the PHDD-2501 across dozens of ACTi NVR installations—small municipal facilities, parking-structure monitoring, and retail chains running 4–16 camera feeds. The real-world advantage versus consumer-grade alternatives (Seagate Barracuda, WD Blue) is stability under continuous write load. On a retail surveillance system recording 6 cameras at 4Mbps, the PHDD-2501 delivers rock-solid uptime with zero thermal throttling. We've pulled failed drives from ACTi deployments and traced the root cause to undersized capacity (customer tried 2TB drives in a 16-camera bay) or mixed-generation drives in RAID arrays—the PHDD-2501 itself is the commodity here. The differentiator is that it's pre-validated by ACTi's engineering team for their appliance thermal and electrical envelope, so there are no firmware surprises or compatibility workarounds. Against nearest alternatives (Seagate SkyHawk ST4000VE001, WD Purple Pro WD4001PURP), the PHDD-2501 costs slightly less and has identical spindle speed and cache depth—the tie-breaker for ACTi shops is direct factory warranty support and zero cross-vendor firmware headaches.
Technical Highlights:
- 7200 RPM with 128MB Cache: Outperforms 5400 RPM consumer drives by 40–60% on sustained write throughput. That matters when six cameras are recording simultaneously and the system is running garbage collection on the RAID parity stripe. Seek latency stays below 10ms even during peak recording.
- 4TB Capacity per Bay: A fully populated ACTi ENR-240 (8 bays) can hold 32TB raw—enough for 10–20 days of continuous rolling-buffer recording across a 16-camera deployment at 1080p bitrate. Reduces the operational burden of external archive management.
- SATA 6Gb/s Interface: 600 MB/s theoretical ceiling is sufficient for 8+ concurrent 1080p streams; not a bottleneck on any current ACTi NVR. Bus saturation is a non-issue because video bitrates (4–8 Mbps per stream) are orders of magnitude below SATA ceiling.
- Surveillance-Optimized Firmware: Unlike desktop drives, the PHDD-2501 firmware prioritizes sustained throughput over seek performance—the NVR is writing sequentially 99% of the time, not random-access. Reduces unnecessary head repositioning and extends mechanical lifespan.
- 128MB Write Cache: Absorbs burst traffic during scene-change (e.g., motion detection bumps bitrate from 4 Mbps to 12 Mbps for 30 seconds). Prevents dropped frames or buffer underruns on older ACTi NVR models with limited RAM.
Deployment Considerations:
- Verify your NVR firmware supports 4TB capacity before purchasing—some pre-2014 ACTi models ship with firmware that caps bay size at 2TB, returning an unformatted error after detection. Firmware updates are free via ACTi support, but require NVR downtime (typically 10–15 minutes).
- In RAID 5 or RAID 6 arrays, always populate bays with identical capacity and spindle speed. Mixing the PHDD-2501 with older 2TB drives forces the array to stripe-write at the slowest drive's speed and introduces rebuild risk if a legacy drive fails.
- Install drives into hot-swap bays only if your NVR supports live insertion—older models require power-down before bay removal. Check the NVR manual's storage section before you open the chassis.
- Monitor drive S.M.A.R.T. attributes monthly via the NVR's storage-health dashboard (ACTi UI includes basic SMART polling). Rising reallocated-sector count or rising temperature trends signal early failure; RMA the drive before it stops.
- Thermal management matters: ensure NVR chassis airflow is not obstructed. If the NVR is mounted in a sun-baked equipment cabinet or next to a heater, add an auxiliary fan. Operating drives above 45°C accelerates wear; 35–40°C is ideal for surveillance duty.
The PHDD-2501 is the right fit for ACTi NVR operators seeking reliable mid-capacity surveillance storage without compatibility risk. It's not the absolute lowest-cost drive per terabyte (commodity SATA alternatives exist), but the factory pre-qualification with ACTi appliances eliminates the integrator's testing burden and warranty cross-fire. Start here for any new ACTi deployment where retention is 1–3 weeks and camera count is 4–16. For more information on ACTi NVR systems and approved storage, visit the ACTi catalog.
