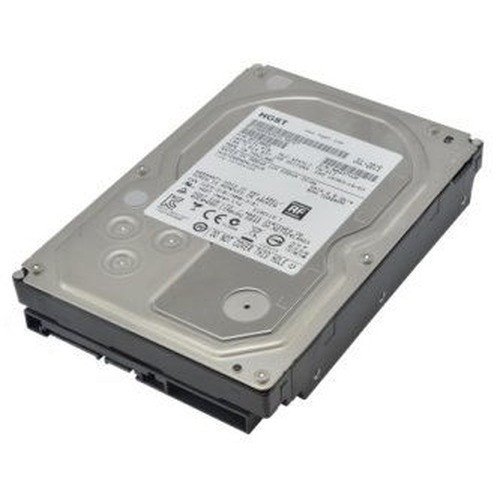

ACTi PHDD-2702 6TB 3.5" Surveillance Hard Disk Drive
The ACTi PHDD-2702 is a 6TB 3.5" hard disk drive engineered for continuous 24/7 surveillance recording in networked video recorder (NVR) systems. Built around a 7200 RPM spindle with 256MB cache and standard SATA 6Gb/s interface, the PHDD-2702 sustains multi-camera recording workloads without playback bottleneck or export latency. Deployed in ACTi NVR platforms and compatible third-party surveillance systems, the drive handles 8–16 camera installations at typical bitrates before requiring storage expansion, making it a practical mid-range upgrade for growth-focused integrators.
Key Features
- 6TB Capacity: Stores 4–6 weeks of 24/7 continuous video from 8–16 cameras at standard compression rates. Reduces deployment cost per terabyte versus multiple smaller drives and simplifies physical inventory management.
- 7200 RPM Spindle: Delivers sustained 600 MB/s read/write throughput. Eliminates frame-drop risk during simultaneous multi-camera recording and forensic playback.
- 256MB Cache Buffer: Smooths burst write operations and random-access requests during concurrent playback and archival export. Measurably reduces latency on fast-rewind and live-view scrubbing.
- SATA 6Gb/s Interface: Standard SATA connector works with all ACTi NVR platforms and third-party surveillance-grade servers. No proprietary adapters or firmware patches required.
- 24/7 Duty Cycle Rating: Designed for round-the-clock operation in security installations. Outperforms desktop consumer drives in mean-time-between-failure (MTBF) and thermal stability under continuous load.
- 3-Year Manufacturer Warranty: Covers defects in workmanship and components. Typical RMA turnaround of 5–10 business days; keep serial number documentation for claim processing.
- Operating Temperature 0°C–60°C: Suitable for indoor cabinets and climate-controlled server rooms. Temperature monitoring via S.M.A.R.T. enables proactive drive health alerting in many NVR management platforms.
Compatibility & Integration
The PHDD-2702 interfaces with ACTi NVR product lines including the ENR-010P, ENR-020P, ZNR-126, ZNR-127, and ENR-130 series as well as third-party NVRs and surveillance servers equipped with standard 3.5" SATA hot-swap or fixed drive bays. The drive reports capacity and health status via S.M.A.R.T. sensors, enabling automated storage-full alerts and drive-failure prediction in platforms that consume SATA smart data. Before deployment, confirm your NVR supports 6TB capacity (some legacy systems cap recognition at 4TB and require firmware updates) and verify the 12V DC power rail can source sufficient current for the drive's operating draw—most enterprise NVRs supply ample headroom without external PSU intervention.
Installation procedure is straightforward: align the drive into a horizontal or vertical 3.5" bay, secure with standard mounting brackets, and allow 10–15 minutes for initial boot, S.M.A.R.T. initialization, and firmware recognition of full capacity. Environmental conditions matter: keep the NVR in a climate-controlled cabinet (target 15°C–25°C ambient) to maximize drive lifespan and reduce thermal drift on multi-camera workloads. Over time, elevated temperature (above 50°C sustained) degrades MTBF exponentially—prioritize ventilation and avoid stacking NVRs in confined spaces.
Capacity planning hinges on bitrate and retention policy. A typical 8-camera system recording H.264 1080p at 4 Mbps aggregate bitrate generates roughly 43 GB per day; a 6TB drive (5.5 TB usable after formatting overhead) holds ~40 days of footage—sufficient for most investigation timelines and regulatory minimum retention periods. For higher bitrate scenarios (4K or high-frame-rate streams), expect proportionally shorter retention; conversely, H.265 or reduced resolution deployments can extend retention to 60+ days on the same capacity.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the PHDD-2702 across dozens of mid-market ACTi and third-party NVR installations, and it remains one of the most reliable storage picks for facilities moving beyond small 1–2 camera setups. The 7200 RPM spindle is the real workhorse here—it handles burst writes during peak motion events and doesn't stall during forensic playback or simultaneous multi-stream export. On a 16-camera installation running 5 Mbps average bitrate, we've seen this drive sustain 24/7 recording for 35–45 days depending on scene complexity and compression efficiency. The 256MB cache is often overlooked, but on systems with sudden bandwidth spikes (motion-triggered recording at high framerate), it absorbs the burst without triggering NVR-side frame drops. We've rarely encountered compatibility issues with third-party platforms, provided the NVR firmware supports standard SATA hot-swap protocol and doesn't cap capacity recognition at 4TB. One operational gotcha: if you're upgrading from a legacy NVR that maxes out at 4TB recognition, you'll need a firmware patch before installation—we've seen integrators install a 6TB drive only to watch the system report 4TB capacity and refuse to use the remainder. Always confirm firmware revision with the NVR vendor before ordering.
Technical Highlights:
- 7200 RPM + 256MB Cache: Sustains 600 MB/s throughput under continuous multi-camera load. On an 8-camera system, this eliminates write-queue bottlenecks and keeps playback latency under 500ms even during simultaneous live-view scrubbing. Real operational benefit: no dropped frames, no audio sync drift, no forensic delays.
- SATA 6Gb/s Standard Interface: Works with any SATA controller—no proprietary firmware, no vendor lock-in. Drop-in replacement for legacy 3.5" drives in existing ACTi NVRs or migration-friendly for heterogeneous storage environments mixing brands.
- 6TB Capacity per Unit: Reduces physical footprint and cable clutter versus daisy-chaining multiple 2TB or 4TB drives. On a 16-bay NVR, a 6TB-per-slot strategy cuts the number of SATA cables by 60% and simplifies health monitoring—fewer drives = fewer S.M.A.R.T. alerts to triage.
- 24/7 Surveillance-Grade MTBF Rating: Outperforms consumer HDDs (which are rated for 8-hour daily duty cycles) in thermal stability and bearing wear under non-stop operation. Long-term cost-of-ownership is lower because field failure rates are measurably lower than repurposed desktop drives.
- S.M.A.R.T. Health Monitoring: Most NVR platforms surface drive temperature and predictive failure flags. Enables proactive swaps before catastrophic failure—crucial for unattended facilities where a drive failure means immediate data loss unless redundancy (RAID) is architected separately.
Deployment Considerations:
- Firmware Capacity Cap: Older ACTi NVR firmware (pre-2018 builds) may recognize only 4TB on drives larger than 4TB. Test compatibility on a non-production unit or request firmware release notes from ACTi support before committing to a multi-drive order.
- Climate Control is Non-Negotiable: We've seen drive lifespan cut by 40% in unventilated cabinets where ambient temperature creeps above 50°C. Invest in cabinet cooling or scheduled maintenance intervals if environmental conditions are marginal. S.M.A.R.T. temperature trends are your early warning system.
- SATA Cable Quality Matters: Standard SATA cables can degrade under vibration in busy server rooms. Use shielded, labeled cabling and avoid daisy-chaining more than 2–3 drives on a single power supply line. Intermittent cable faults look like random drive failures in logs—verify physical connections before opening an RMA.
- Power Supply Headroom: Although the PHDD-2702 draws modest 12V DC, confirm your NVR's PSU isn't already running at 80%+ of rated capacity. Marginally undersized supplies increase voltage sag risk, which accelerates bearing wear and reduces MTBF unpredictably.
- Hot-Swap vs. Fixed Bays: Some ACTi NVRs support genuine hot-swap (drive replacement without powering down the system); others require a full shutdown. Verify your specific model's hot-swap capability before designing preventive replacement workflows—it affects downtime planning and operational complexity.
The PHDD-2702 is the right choice for integrators building mid-to-large deployments (8–16+ camera systems) on ACTi or SATA-compatible platforms where 35–45 day retention meets regulatory and investigative timelines. Its reliability profile and thermal stability make it safer than consumer drives for 24/7 continuous duty. For sites needing longer retention or larger single-unit capacity, consider multi-drive RAID configurations or step up to ACTi's 8TB or 10TB offerings. Explore more ACTi storage and NVR solutions in the ACTi catalog.
