Middle Atlantic Accy Hndl 1 BAY MOD Alum - VTF3-CP6

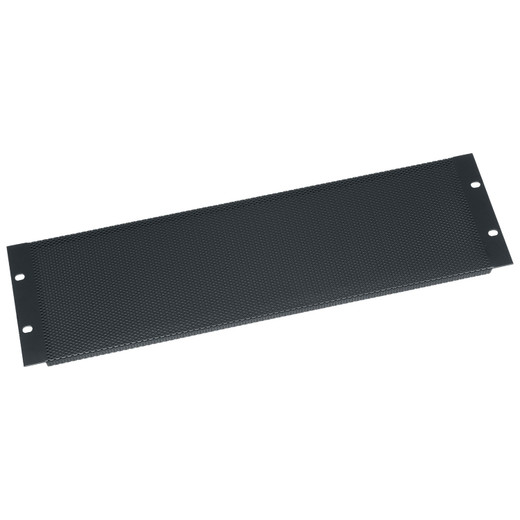

Middle Atlantic VTF3-CP6 3U Vented Flanged Rack Panel

Overview

The Middle Atlantic VTF3-CP6 is a 3U (5.25-inch) vented rack panel engineered for standard 19-inch equipment racks where thermal management and clean slot coverage matter. Sold in a pack of six, the VTF3-CP6 gives installers enough panels to blanket an entire rack run in a single order — eliminating the piecemeal sourcing that slows rack builds. The flanged steel construction mounts with two points of contact per panel, keeping each unit flat and rattle-free over the life of the installation.

This is passive infrastructure: no active components, no firmware, no configuration. Its job is to close open rack spaces, encourage airflow in the right direction, and present a finished, professional appearance inside equipment rooms, IDF closets, and AV/security head-end racks.

Key Features

• 3U Form Factor (5.25 in): Three rack units of panel height covers common gap sizes left between network switches, patch panels, and NVRs — the spaces most likely to allow hot exhaust air to recirculate back to equipment intakes. At 5.25 inches, a single VTF3-CP6 fills those gaps without stacking multiple 1U blanks.
• 25% Vented Open Area: The perforated face lets air pass through while still blocking direct line-of-sight into the rack interior. In a front-to-back cooling architecture, this means airflow from a cold aisle can move through the panel rather than being forced around it — useful in mixed-depth racks where solid blanks would create pressure dead zones.
• Standard 19-inch Panel Width: Fits any EIA-standard 19-inch rack without modification. The 19-inch width (48.3 cm) is confirmed on both the panel and the spec sheet, so there is no guesswork about compatibility with EIA-310 racks.
• Flanged Style: The flanged edge profile seats cleanly against rack rails and resists flex when adjacent equipment is installed or removed. For integrators who have dealt with warped or rattling blanks in mobile or vibration-prone environments, the flanged construction is meaningfully more stable than flat-stamped alternatives.
• Black Powder Coat Finish: A durable powder coat in black matches the standard finish of most commercial rack enclosures and persists through repeated handling during rack reconfigurations — no peeling, no flaking on the rail contact points.
• Two Mounting Points: Two-point mounting keeps installation fast (two screws per panel) while providing enough clamping force to hold the panel flush. Installers commissioning a full rack of blanks will move through the stack quickly.
• Non-Light-Blocking, Non-Hinged: The panel does not include a light-blocking baffle or a hinged door. It is a straightforward vented blank — the right call for standard equipment rooms where cable access behind the blank is not needed and light leak is not a concern.
• Six-Panel Pack: The carton ships six panels at 8.2 lbs total — enough to cover 18U of rack space in a single purchase. For rack deployments where several gaps need to be filled simultaneously, buying by the pack avoids the cost and lead-time of sourcing panels one at a time.

Integration & Compatibility

The VTF3-CP6 is compatible with any standard EIA-310 19-inch rack system — open-frame, enclosed cabinet, or wall-mount enclosures with standard rail spacing. Middle Atlantic manufactures a wide range of Middle Atlantic rack systems and accessories that pair directly with this panel, including relay racks, rack enclosures, and cable management. For builds involving rack-mount accessories across security, AV, and IT head-ends, the flanged profile integrates cleanly with standard cage nut and square-hole rail systems. If you are planning a full rack build, review your rack planning guide to confirm RU allocation before ordering panel quantities — common mistake is under-ordering blanks and waiting on a second shipment to close the rack.

The panel ships non-hinged and without a light-blocking baffle. If your installation requires cable pass-through access to blanked spaces or light isolation (common in broadcast and AV production environments), evaluate whether a hinged or light-blocking variant better fits the application. For standard security and IT head-end racks, the VTF3-CP6 is the appropriate specification.

What's in the Box

• 6x Middle Atlantic VTF3-CP6 3U Vented Flanged Rack Panels

Frequently Asked Questions

Q: How many rack units does the VTF3-CP6 cover, and what is its physical height?

A: The VTF3-CP6 occupies 3 rack units (3U), with a physical panel height of 5.25 inches (13.3 cm). This makes it one of the more useful blank sizes for filling mid-rack gaps left between larger equipment like NVRs, switches, and UPS units.

Q: Does the VTF3-CP6 fit standard 19-inch racks?

A: Yes. The panel width is 19 inches (48.3 cm), compatible with EIA-310 standard 19-inch rack enclosures and open-frame relay racks. No modification is required.

Q: How many panels come in a pack, and what is the shipping weight?

A: Each order of the VTF3-CP6 includes 6 panels. The total shipping weight for the carton is 8.2 lbs (3.7 kg), covering 18U of rack space.

Q: Is the VTF3-CP6 a solid blank or does it allow airflow?

A: It is a vented panel with 25% open area. Air can move through the perforated face, which supports front-to-back airflow architecture in thermally managed rack enclosures. It is not a solid blank.

Q: Does the VTF3-CP6 include a hinged door or light-blocking baffle?

A: No. The VTF3-CP6 is non-hinged and does not include a light-blocking layer. It is a fixed vented panel. If cable pass-through access or light isolation is required, a different panel variant should be evaluated.

Q: What is the finish on the VTF3-CP6?

A: Black powder coat. The finish is durable against handling and repeated rack reconfigurations, and matches the standard interior finish of most commercial rack enclosures.

Eden Phillips

The VTF3-CP6 is a detail that experienced integrators stop overlooking after the first time an equipment room runs hot because someone left 3U gaps open across six racks. The 25% vented open area on this panel is the spec that matters most — it allows cold-aisle pressure to push through rather than stall, which means your airflow architecture actually functions as designed rather than bypassing the blanked zones entirely.

Technical Highlights:

• 25% Open Area: Enough perforation to maintain meaningful front-to-back airflow continuity without fully exposing rack interiors — the right balance for mixed security and IT head-end environments where you want thermal management without visibility into cabling.
• 3U Height (5.25 in): The 3U size fills the gap most commonly left between NVRs, PoE switches, and patch panels in security rack builds. Stacking three 1U blanks costs more installation time and introduces three separate rattle points — one VTF3-CP6 replaces all three cleanly.
• Six-Panel Pack at 8.2 lbs: Eighteen rack units of coverage ships in one carton. For a full 42U rack with typical equipment density leaving 12–18U of gaps, one pack handles the job without a second purchase or separate line item.

Deployment Considerations:

• The flanged style requires standard cage nuts or square-hole rails — confirm your rack rail type before ordering if working in mixed-vendor environments with older threaded-rail racks.
• The VTF3-CP6 is non-hinged and has no light-blocking baffle, so it is not the right choice for broadcast or production environments where light leakage between rack sections matters; select a light-blocking variant for those applications.

This panel is the right specification for security head-end racks and IDF closets in commercial buildings where the rack is a working equipment enclosure — not a display. The VTF3-CP6 keeps gaps closed, airflow moving, and the installation looking finished without adding complexity or cost.
