Middle Atlantic 6PC. VTF4 Contract Pack - VTF4-CP6

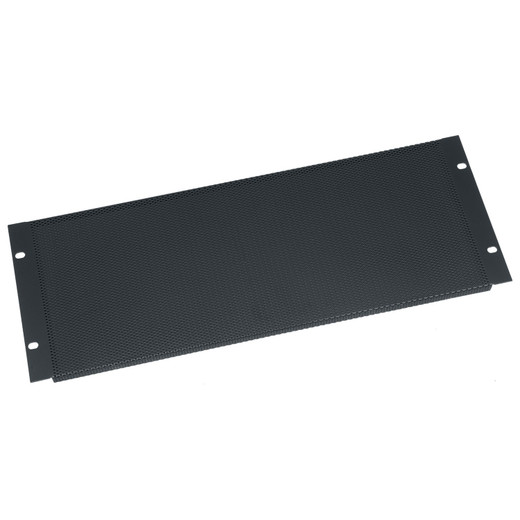

Middle Atlantic VTF4-CP6 4RU Vented Rack Panel — 6-Pack

Overview

The Middle Atlantic VTF4-CP6 is a 4-rack-unit vented filler panel sold as a contract pack of six — the right buy when you're populating multiple racks in a single project and don't want to order panels one at a time. Each panel occupies 7 inches of vertical rack space (4 RU at standard 1.75 in per unit) and ships with a flanged, two-point mounting profile that drops into any standard EIA 19-inch rack without adapters or additional hardware.

The VTF4-CP6 (often searched as VTF4 CP6) is purpose-built as an airflow management tool, not just a cosmetic cover. The 25% open vent area is the key functional spec here: it allows passive convective airflow through the rack without leaving open bays that create bypass air, hot spots, or bypass pathways that short-circuit your cold aisle. That matters on any rack that mixes heat-generating equipment — NVRs, PoE switches, UPS units — with passive gear.

For Middle Atlantic rack systems and enclosures, the VTF4-CP6 integrates directly without modification. The black powder coat finish matches standard Middle Atlantic rack aesthetics, so mixed-use racks look consistent from panel to equipment.

Key Features

• 4 RU Height (7 in / 17.8 cm): Fills a substantial gap in a standard rack — useful when you have a 4U open bay between a switch and an NVR, or when stacking two panels back-to-back to cover an 8U void. Four-unit increments are common in pre-configured rack layouts used in rack accessory planning.
• 25% Vented Open Area: Passive airflow passes through without creating full open-bay bypass. Hot exhaust from equipment below can rise through the panel rather than being trapped or forced sideways — relevant in any rack where you're relying on natural convection rather than forced-air cooling.
• 19-Inch Panel Width (48.3 cm): Standard EIA 19-inch form factor. Fits any commercial 19-inch rack enclosure without modification. No trimming, no brackets, no adapters.
• Flanged Style, 2 Mounting Points: The flanged profile locks the panel flat against the rack rail face — no gap, no flex. Two-point mounting is sufficient for a passive filler panel and keeps installation fast; a screw on each rail and the panel is secured.
• Black Powder Coat Finish: Durable baked-on finish that matches standard rack equipment aesthetics. Powder coat holds up in real rack environments — no chipping or corrosion from repeated access over years of service.
• 6-Panel Contract Pack: At 10.35 lbs shipping weight for the set, you're receiving six full panels in a single shipment. Multi-rack deployments — a typical security head-end room with 3–6 racks — can fill all unused bays from a single order line. Reduces procurement overhead versus ordering panels individually.
• Not Hinged, No Light Blocking: This panel is a passive vented cover. No hinged access door, no light-blocking gasket. If your application requires tool-free bay access or light isolation (for media rooms or broadcast racks), this is not the correct panel — plan accordingly.

Integration & Compatibility

The VTF4-CP6 is compatible with any standard 19-inch EIA rack that accepts two-point front-mount panels. It is a direct fit into Middle Atlantic rack enclosures and open-frame racks. There is no proprietary mounting system — standard rack screws (not included in evidence) secure the flanged ears to the rack rail.

Six panels per pack makes this a natural procurement unit for projects using network rack cabinets in quantity. A typical 42U rack with 10–12U of active equipment and miscellaneous 1U gear can easily consume 8–12U of filler panels; two VTF4-CP6 packs cover that need. For PoE switch and NVR rack designs, pairing these panels with proper rack power distribution and airflow management is standard practice.

What's in the Box

• 6x Middle Atlantic VTF4 4RU Vented Rack Panels (black powder coat)

Frequently Asked Questions

Q: How many panels are included in the VTF4-CP6?

A: The VTF4-CP6 is a contract pack containing 6 individual VTF4 4RU vented rack panels.

Q: What rack size does the VTF4-CP6 fit?

A: Each panel is 19 inches wide (48.3 cm), fitting any standard EIA 19-inch rack enclosure. Mounting is via two flanged points — one on each rack rail.

Q: Does the VTF4-CP6 have a hinged access door?

A: No. The VTF4-CP6 is a fixed (non-hinged) vented filler panel. There is no tool-free access door. If hinged access is required, a different panel model is needed.

Q: How much ventilation does each panel provide?

A: Each panel has 25% open vent area. This allows passive airflow through the rack while maintaining a closed-bay appearance — suitable for convective cooling in mixed-equipment racks.

Q: Does the VTF4-CP6 block light?

A: No. The panel does not include any light-blocking material or gasket. If light isolation is required (such as in broadcast or media rack applications), this panel is not appropriate for that use.

Q: What finish does the VTF4-CP6 use?

A: Black powder coat. This matches the standard finish of Middle Atlantic rack enclosures and most commercial rack equipment.

Jerry Tildsen

The VTF4-CP6 is the kind of item that separates a well-planned rack build from a sloppy one. That 25% open vent area on each panel isn't incidental — it's the spec that keeps passive airflow moving vertically through the rack without leaving a full open bay that collapses your hot/cold separation. I spec these for any security head-end room where we're stacking NVRs and PoE switches in the same enclosure and relying on convective airflow rather than active fan trays.

Technical Highlights:

• 25% Vent Open Area: Allows meaningful passive airflow through 4U of rack space — not a decorative cover. In a 42U rack with 10–12U of active gear, a vented filler in the right position can prevent localized hot spots between high-draw equipment layers.
• 4 RU / 7-inch Profile: Fills the gap height most commonly left between grouped equipment in standard rack layouts. One panel often covers an entire unused block between a switch shelf and an NVR unit.
• 6-Pack Contract Format: At 10.35 lbs shipped for the set, this is sized for multi-rack projects. A 4-rack head-end room running 8U of filler per rack consumes the full pack — one order line, no back-and-forth on individual panel requisitions.

Deployment Considerations:

• The two-point flanged mount is fast to install but assumes a standard 19-inch EIA rail spacing. Verify your rack's rail specification before ordering — non-standard rail spacing (common in some older or non-commercial enclosures) will prevent flush seating of the flanged ears.
• No light blocking and no hinge on this panel — if your rack sits in a media room or a space where light bleed from rack openings is a problem, or if you need tool-free front access through the filler bay, the VTF4 is the wrong choice and you'll need a hinged or solid panel variant instead.

The VTF4-CP6 earns its place in commercial security head-end rooms and AV/IT equipment rooms where you're filling multiple racks in a single project — the 6-pack contract format eliminates the nuisance of panel-by-panel procurement and the vented design means you're not inadvertently blocking airflow in racks that need it.
