IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Out of stock
Vivotek

SKU: AL-24A

Vivotek AL-24A 12-40mm P-Iris Lens for IP Cameras

12-40mm varifocal lens with P-Iris for 1/2-inch IP cameras
- 12–40mm varifocal range covers wide panoramic views to telephoto detail
- F1.8 aperture with P-Iris control for sharp focus across focal lengths
- CS-Mount design for 1/2-inch sensor cameras; low-light capable
Special Order · Ships in 2-3 weeks

$264.00 $188.99 Save $75.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AL-24B

Vivotek AL-24B 3.6-17mm Surveillance Lens P-Iris

4.7x zoom surveillance lens with F1.5 aperture and P-Iris for 1/1.8" sensors
- 3.6-17mm focal length captures wide overview and telephoto detail in one lens
- F1.5 maximum aperture with P-Iris precision control for low-light performance
- Engineered for Vivotek 1/1.8-inch sensor cameras with direct plug-and-play fit
Special Order · Ships in 2-3 weeks

$290.00 $206.99 Save $83.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AL-24E

Vivotek AL-24E Surveillance Lens 3.9-10mm F1.5 P-Iris

3.9-10mm varifocal lens with F1.5 aperture and P-Iris for low-light surveillance
- F1.5 aperture optimized for low-light and night-time security monitoring
- 3.9-10mm varifocal range covers wide areas to targeted points of interest
- P-Iris precision control maintains sharp focus and depth of field across zoom range
Special Order · Ships in 2-3 weeks

$271.00 $193.99 Save $77.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AL-252

Vivotek AL-252 9-50mm F1.5 i-CS Surveillance Lens

9-50mm F1.5 CS-mount lens for Vivotek IP cameras with i-CS control
- 9-50mm zoom range with F1.5 aperture for low-light surveillance
- i-CS electronic iris and focus for sharp, consistent images across zoom
- 1/1.8" image circle supports high-resolution sensor imaging
Special Order · Ships in 2-3 weeks

$1,000.00 $715.99 Save $284.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-105_V03

Vivotek AM-105_V03 Recessed Ceiling Mount Kit

Flush recessed ceiling mount for Vivotek FD-series dome cameras
- Integrates into ceiling cavities for discrete appearance in offices and retail
- Compatible with 10 FD-series models including FD8182, FD9167, FD9171 cameras
- White recessed design maintains full surveillance coverage with minimal visual footprint
Special Order · Ships in 2-3 weeks

$144.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-107

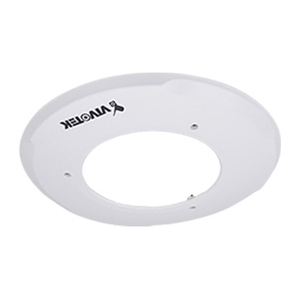

Vivotek AM-107 White Speed Dome Recessed Kit

Recessed ceiling mount kit for Vivotek speed dome cameras
- Flush Ø 230 mm polycarbonate housing with 11 mm depth for discreet integration
- White finish blends with standard ceiling panels in corporate and retail spaces
- Compatible with Vivotek speed dome camera line for straightforward installation
Special Order · Ships in 2-3 weeks

$262.00 $187.99 Save $74.01

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-10D

Vivotek AM-10D Multi-Sensor Camera Recessed Mount Kit

Recessed flush mount kit for Vivotek multi-sensor cameras
- Ø 297 mm bracket fits seamlessly into ceilings and walls
- SECC steel bracket and PC + ABS cover resist corrosion
- Complete fastener hardware included for straightforward installation
Special Order · Ships in 2-3 weeks

$315.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-10E

Vivotek AM-10E Recessed Speed Dome Mounting Kit

Recessed ceiling mount for Vivotek speed domes with full PTZ range
- Flush-mount design integrates into ceiling for discreet professional look
- Compatible with Vivotek speed dome cameras, supports pan-tilt-zoom motion
- Complete kit includes all hardware needed for ceiling installation
Special Order · Ships in 2-3 weeks

$317.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-10F

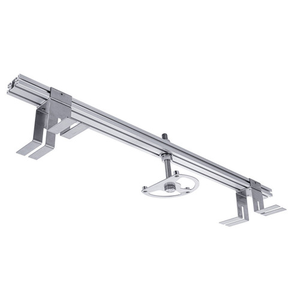

Vivotek AM-10F Multi-Sensor Camera Recessed Mounting Kit

Recessed mounting kit for Vivotek multi-sensor cameras with aluminum/stainless steel
- Flush-mount design hides camera hardware for discreet surveillance in upscale interiors
- Aluminum bracket with SUS304 stainless steel fasteners resists corrosion
- Fits Vivotek multi-sensor cameras; dimensions 660 x 88 x 160 mm
Special Order · Ships in 2-3 weeks

$304.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Vivotek

SKU: AM-10G

Vivotek AM-10G Recessed Mounting Kit

Recessed mount for SC9133 camera flush ceiling and wall installation
- Engineered for SC9133 compatibility with flush-mount design
- Maintains proper alignment and clearance for optimal performance
- Reduces installation time with streamlined mounting procedure
In stock · Ships same business day

$216.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-10G(RTL)

Vivotek AM-10G RTL Recessed Mounting Kit

Recessed mount for SC9133-RTL camera with flush ceiling/wall install
- Complete hardware kit included for fast integration into cavity openings
- Flush-mount design keeps camera concealed while maintaining viewing angles
- IP66-rated and IK10-rated protection against moisture and physical impact
Special Order · Ships in 2-3 weeks

$99.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-10H

Vivotek AM-10H Recessed Ceiling Mounting Kit

Recessed ceiling mount for Vivotek fisheye domes with flush install
- Fits FD9167-HT-v2, FD9367-EHTV-v2, FD9365-EHTV-v2, FD9391-EHTV-v2
- Flush-mount design with organized cable management and ventilation
- Shields camera from environmental exposure and tampering attempts
Special Order · Ships in 2-3 weeks

$177.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-10I

Vivotek AM-10I Recessed Ceiling Mount Kit

Recessed ceiling mount for Vivotek PTZ cameras, drop or solid ceiling
- Flush-mount design hides camera in ceiling cavity while maintaining full PTZ function
- Works with both drop ceiling and solid ceiling installations with included hardware
- Keeps camera controls accessible for professional commercial and institutional deployments
Special Order · Ships in 2-3 weeks

$298.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-114_V02

Vivotek AM-114_V02 Outdoor Pendant Mount

Pendant mount for Vivotek cameras in outdoor installations
- Aluminum alloy construction rated for extended weather exposure
- Secure attachment with vibration resistance for stable positioning
- Flexible angle adjustment for perimeter and entrance monitoring
Special Order · Ships in 2-3 weeks

$105.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-116_V02

Vivotek AM-116_V02 Pendant Pipe Mount

1.5" NPT pendant pipe mount, 20mm standoff, indoor/outdoor rated
- 1.5" NPT threaded connection for direct compatibility with standard pipe fittings
- 20mm compact standoff length fits space-constrained ceiling installations
- White finish with indoor/outdoor rating for retail, office, and industrial use
Special Order · Ships in 2-3 weeks

$42.99

Add to Cart
The item has been added
Compare

Out of stock
Vivotek

SKU: AM-11C_V01

Vivotek AM-11C Bullet Camera J-Shape Mounting Bracket

J-shape aluminum bracket with 360° pan and 56° tilt for Vivotek bullets
- Supports up to 10 kg camera load with full 360-degree rotation
- 56-degree tilt range enables precise vertical positioning for any angle
- Lightweight aluminum construction at 1.2 kg for straightforward wall mounting
Special Order · Ships in 2-3 weeks

$188.99

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Vivotek AL-24A 12-40mm P-Iris Lens for IP Cameras

Vivotek AL-24B 3.6-17mm Surveillance Lens P-Iris

Vivotek AL-24E Surveillance Lens 3.9-10mm F1.5 P-Iris

Vivotek AL-252 9-50mm F1.5 i-CS Surveillance Lens

Vivotek AM-105_V03 Recessed Ceiling Mount Kit

Vivotek AM-107 White Speed Dome Recessed Kit

Vivotek AM-10D Multi-Sensor Camera Recessed Mount Kit

Vivotek AM-10E Recessed Speed Dome Mounting Kit

Vivotek AM-10F Multi-Sensor Camera Recessed Mounting Kit

Vivotek AM-10G Recessed Mounting Kit

Vivotek AM-10G RTL Recessed Mounting Kit

Vivotek AM-10H Recessed Ceiling Mounting Kit

Vivotek AM-10I Recessed Ceiling Mount Kit

Vivotek AM-114_V02 Outdoor Pendant Mount

Vivotek AM-116_V02 Pendant Pipe Mount

Vivotek AM-11C Bullet Camera J-Shape Mounting Bracket

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
