IP Camera Accessories | Mounts, Enclosures, Lenses, IR & Power

Deployment Considerations

Environmental protection and weather resistance
Mounting stability and load support
Power and voltage compatibility
Cable management and termination quality
Compliance with local safety standards

Sub categories

Showing Results for Accessories

Compare

Out of stock
Pelco

SKU: WBOVA2

Pelco WBOVA2 Wall Bracket Internal Cable Channel Gray

Gray wall mount bracket with internal cable routing for Pelco WBOV cameras
- Internal cable channel routes power and network cabling through bracket body
- Gray powder-coated steel construction rated IP66 with optional gasket kit
- Wall-mount design integrates with Pelco WBOV series camera systems
Special Order · Ships in 2-3 weeks

$38.99

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: WBOVQ2B_FLIR

Pelco WBOVQ2B_FLIR Wall Mount FLIR Custom Color

Wall mount for Pelco outdoor housings with FLIR custom color finish
- Surface-mount bracket sized for Pelco camera housings in outdoor environments
- FLIR custom color finish coordinates thermal and visible-light camera deployments
- PoE++ powered, NDAA Section 889 compliant for government installations
Special Order · Ships in 2-3 weeks

$33.99

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: WCM3A

Pelco WCM3A Ceiling Bracket with Ball Joint

Ceiling bracket with ball joint for flexible Pelco camera positioning
- Angular adjustment without removing bracket during post-installation aiming
- Compatible with Pelco camera systems for straightforward integration
- NDAA Section 889 compliant for regulated surveillance deployments
Special Order · Ships in 2-3 weeks

$87.99

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: WCPA

Pelco WCPA Wall Bracket Adapter Plate

Adapter plate resolves Pelco camera-to-bracket mounting mismatches
- Precision metal construction eliminates field fabrication and maintains load integrity
- Works across Pelco camera systems and bracket families for flexible installations
- NDAA Section 889 compliant for government and regulated facility deployments
Special Order · Ships in 2-3 weeks

$40.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Pelco

SKU: WCS1-4

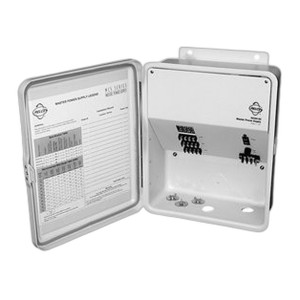

Pelco WCS1-4 Single-Output Camera Power Supply 4A

Regulated 4A DC supply for non-PoE camera installations
- Selectable 24, 26, or 28 VAC output with stable regulation
- Wall, pole, or rack mount for flexible indoor/outdoor deployment
- 4A capacity handles single camera or compatible accessory power
In stock · Ships same business day

$269.01 $184.99 Save $84.02

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: WCW2B_FLIR

Pelco WCW2B_FLIR Corner Mount Adapter

Corner mount adapter for Pelco systems in thermal/mixed deployments
- Inside/outside corner positioning with FLIR custom color coordination
- NDAA Section 889 compliant for government and regulated installations
- Integrates with Pelco WCW mounting interface for secure bracket alignment
Special Order · Ships in 2-3 weeks

$83.99

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: WCWA

Pelco WCWA Corner Mount Adaptor Bracket

Corner mount adaptor for L-shaped spaces and building angles
- Designed for Pelco wall bracket systems in interior and exterior corners
- IP66-rated professional-grade construction for commercial surveillance
- NDAA Section 889 compliant for government and secure deployments
Special Order · Ships in 2-3 weeks

$63.99

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: WCWG2B_FLIR

Pelco WCWG2B_FLIR Corner Mount FLIR Custom Color

90-degree corner mount for Pelco cameras with FLIR custom color
- Converts flat-surface wall mounts to inside or outside 90-degree corners
- WCWGC series design supports larger brackets and heavier camera assemblies
- FLIR custom color finish for color-matched mixed Pelco/FLIR deployments
Special Order · Ships in 2-3 weeks

$92.99

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: WCWGC

Pelco WCWGC Corner Mount Adapter Large Housing

Heavy-duty 90-degree corner mount adapter for Pelco camera systems
- Converts flat-surface brackets to corner configuration for dual-wall coverage
- Large housing variant supports heavier camera assemblies and housings
- NDAA Section 889 compliant for government and secure deployments
Special Order · Ships in 2-3 weeks

$106.99

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: WEXTUB30

Pelco WEXTUB30 Antistatic Water Pipe Extension 30m

30m antistatic water extension for Pelco camera housing washers
- 30-meter length routes pressurized water to remote lens cleaning nozzles
- Antistatic construction prevents static buildup near sensitive electronics
- Joinable design extends beyond 30m when paired with additional sections
Special Order · Ships in 2-3 weeks

$260.13 $191.99 Save $68.14

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Pelco

SKU: WFWCA

Pelco WFWCA Column Mount Ball Joint Camera Housing

Column clamp with ball joint for post-install camera aiming
- IP66 sealed housing resists rain, dust, and washdown spray
- Ball joint allows horizontal and vertical aim without unbolting
- Secures to poles and columns; eliminates wall anchors or brackets
In stock · Ships same business day

$109.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Pelco

SKU: WLMT-1001

Pelco WLMT-1001 Wall Mount Bracket Large Pendant

Heavy-duty wall mount for large pendant cameras on concrete and steel
- Supports oversized dome assemblies and multi-sensor systems exceeding standard capacity
- Surface-mount installation on concrete, steel, and load-bearing surfaces without anchors
- Compatible with Pelco large pendant cameras and specialty imaging platforms
In stock · Ships same business day

$400.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Pelco

SKU: WLMT-1031

Pelco WLMT-1031 30cm Pendant Arm

30cm pendant arm with interior cable routing for Pelco cameras
- 30cm horizontal extension clears obstructions in tight spaces without pole mount
- 1.5-inch NPT threading matches standard Pelco camera bases for direct compatibility
- Interior cable routing conceals wiring for cleaner aesthetics and weather protection
In stock · Ships same business day

$337.99

Add to Cart
The item has been added
Compare

Add to Cart The item has been added
Pelco

SKU: WMVE-SW

Pelco WMVE-SW Dome Wall Mount 0.75-1.5in NPT White

Wall mount for Pelco dome cameras, 0.75–1.5" NPT conduit
- Internal cable routing keeps wiring hidden for clean ceiling installations
- 0.75–1.5" NPT conduit range fits standard building infrastructure
- White finish matches drop-ceiling environments, NDAA Section 889 compliant
In stock · Ships same business day

$62.33 $45.99 Save $16.34

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: WSFPA

Pelco WSFPA Pole Mount Adapter 65-140mm

Non-drilling pole mount adapter for 65–140mm diameters
- Quick-release clamp design requires no fasteners or drilling
- Compatible with Pelco WSFP mount series camera systems
- Fits light poles, utility poles, and structural columns
Special Order · Ships in 2-3 weeks

$73.99

Add to Cart
The item has been added
Compare

Out of stock
Pelco

SKU: WSFPQ2B_FLIR

Pelco WSFPQ2B_FLIR Pole Mount Adapter FLIR Custom

Pole mount adapter for WSFP series cameras, FLIR custom color
- Direct clamping to cylindrical poles—no bracket or additional hardware needed
- IK10 vandal-resistant finish for outdoor thermal camera deployments
- Compatible with Pelco WSFP series and ONVIF-compliant camera systems
Special Order · Ships in 2-3 weeks

$65.99

Add to Cart
The item has been added

What to Look For When Buying

The six decisions that matter most before you spec.

Match Bracket to Camera + Surface

A dome camera mounted on a textured wall needs a wall-mount adapter with a gasket; mounted on a pole it needs a pole-mount arm; mounted on an eave it may need a pendant. Third-party brackets exist but brand-specific brackets include proper camera cable routing and weather gasketing. Buying a $40 generic bracket to save on a $80 Axis bracket usually costs more in installation time.

Enclosure NEMA Rating

NEMA 3R = light rain; NEMA 4 = splash + driving rain; NEMA 4X = above + corrosion resistance (coastal, industrial); NEMA 6 = temporary submersion. For weather-exposed camera enclosures, NEMA 4X is the commercial standard. For mission-critical outdoor gear, pair NEMA 4X enclosure + IP67 camera + IK10 vandal rating.

C/CS-Mount Lens Selection

Box cameras use interchangeable C-mount (17.526mm flange) or CS-mount (12.5mm flange). Lens focal length + sensor size determines field of view: a 4mm lens on a 1/3" sensor gives ~60° horizontal FOV. Our DORI guide covers lens selection by scene distance. F-stop matters for low-light; P-iris for auto-exposure.

IR Illuminator Wavelength

850nm IR is more efficient but produces a faint visible red glow (deterrent or accidental giveaway, depending on use case). 940nm is truly covert but requires ~2x the power for the same effective range, and many cameras have lower sensitivity at 940nm. Match illuminator wavelength to camera IR-cut filter spec, or image washout results.

Power Supply Sizing & Distance

12VDC cameras at 100ft from a power supply drop significant voltage over 18-gauge wire — a camera rated for 12V may see 10.5V at the camera end under load, triggering brownout resets. For long runs, use a higher-voltage power supply (24VAC or 48VDC) and step down at the camera. UL-listed surveillance power supplies (Altronix) publish voltage-drop tables.

Cable Jacket Rating

Indoor Cat6 is rated CM (communications); plenum-rated CMP is required for above-drop-ceiling runs per NFPA 70. Outdoor/direct-burial Ethernet is a different product (CMX, direct-burial gel-filled). Mixing jacket ratings causes code violations and fire inspector rejections. Always spec by run environment, not lowest-cost SKU.

Technology Stack

The specs and acronyms that actually affect outdoor performance.

NEMA vs IP Rating Systems

NEMA is the US enclosure standard (NEMA 1-13); IP is the international standard (IP00-IP68). Rough crosswalk: NEMA 4 ≈ IP66, NEMA 4X ≈ IP66 + corrosion, NEMA 6 ≈ IP67. Some spec sheets list both; when only one is given, the crosswalk is approximate. For coastal, industrial, and food-processing environments, specify NEMA 4X or IP66 + stainless steel.

C-Mount vs CS-Mount Lenses

C-mount: 17.526mm flange focal distance. CS-mount: 12.5mm flange. CS cameras accept both lens types (C lenses need a 5mm adapter ring); C cameras accept only C lenses. Most modern box cameras are CS-mount for lens flexibility. Lens thread is 1-inch × 32 TPI on both.

F-Stop / Iris

F-stop = focal length ÷ aperture diameter. Lower F-stop (wider aperture) means more light, better low-light performance, shallower depth of field. F1.4 is very low-light capable; F1.8 is common commercial spec. P-iris (precise iris) lenses auto-adjust aperture based on scene lighting — reduces over-exposure during day, improves low-light at night.

850nm vs 940nm IR

IR illuminators at 850nm are more energy-efficient and the sensitivity of most camera IR-cut filters peaks here — but 850nm produces a faint visible red glow from the LEDs. 940nm is invisible to human eye but requires ~2x the power or shorter effective range. Many covert-deployment cameras are re-tuned for 940nm sensitivity.

UL-Listed Power Supplies

Underwriters Laboratories listed power supplies meet safety standards for overcurrent, overvoltage, and enclosure isolation. UL 294 specifies additional requirements for access control; UL 603 for security burglary; UL 1310 for Class 2 power. Insurance and code requirements increasingly specify UL-listed supplies — particularly in commercial and institutional installations.

Plenum vs Riser vs PVC Cable

Plenum-rated (CMP) cable uses low-smoke FEP jacket for use above suspended ceilings where smoke spreads through return-air plenums. Riser (CMR) is for vertical shaft runs between floors. PVC (CM) is for open office runs only. Using CM in plenum spaces violates NFPA 70 — costly inspector rejection if caught.

Typical Deployment Scenarios

New Construction Retrofit

Cat6A plenum cable pulled to camera locations with proper service loops, 2-gang electrical boxes at each dome location with weatherproof backbox, Cat6A patch panel at the IDF, UL-listed power supplies for any 12V/24V camera, labeled and tested before cameras are mounted.

Coastal / Corrosive Environment

NEMA 4X stainless-steel enclosures for outdoor cameras, 316-grade stainless brackets, silicone dielectric grease on every connector, hot-dipped galvanized or powder-coated steel poles. Budget 15-25% more on accessories vs. standard outdoor — and plan for 3-5 year inspection cycles rather than 10.

Box-Camera LPR Application

Box camera with 50-150mm telephoto lens, dedicated 850nm IR illuminator at same height as camera, pole-mount bracket with junction box, UL power supply for camera + illuminator. LPR-specific enclosures with anti-reflective glass to avoid nighttime IR bloom. Typical deployment: dedicated lane camera, not general-purpose surveillance.

Parking Garage Retrofit

Existing analog coax cable replaced via NVT Phybridge or similar PoE-over-coax, vandal-resistant dome enclosures at ground level, low-profile bullet cameras on ceiling, LED-plus-IR-compatible illuminators to handle harsh fluorescent lighting. Enclosures rated for vehicle-exhaust environment.

Frequently Asked Questions

Do I need the OEM bracket for my camera, or will a generic bracket work?

For most commercial installations, specify the OEM bracket. Brand-specific brackets include proper cable routing, gasketed weather seals, and mounting-hole patterns matched to the camera — which matters more than the cost savings of a generic bracket. Generic brackets are acceptable for indoor standard-dome cameras on flat surfaces; for outdoor, vandal-rated, or pendant applications, use OEM.

What NEMA rating do I need for outdoor camera enclosures?

NEMA 4 for most weather-exposed deployments (driving rain, snow). NEMA 4X for coastal, industrial, or food-processing environments (adds corrosion resistance — typically stainless steel or fiberglass construction). NEMA 6 for temporary submersion or flood-prone areas. The IP-rating equivalent is IP66 for NEMA 4, IP66 + corrosion for NEMA 4X, IP67 for NEMA 6.

How do I choose the right lens focal length for a box camera?

Work backward from the scene. Identify the farthest point you need identification-grade coverage, use our DORI guide to calculate required pixels-per-foot at that distance, and match lens focal length + sensor size to deliver that PPF. A 4mm lens on a 1/3" sensor covers ~60° horizontal FOV; a 12mm lens on the same sensor covers ~20°. Wide FOV = shorter identification distance.

What's the difference between 850nm and 940nm IR illuminators?

850nm is more energy-efficient — you get more effective range per watt — but produces a faint visible red glow from the LEDs. 940nm is truly invisible to the human eye but requires about 2x the power for equivalent range, and many cameras have lower sensor sensitivity at 940nm. For deterrent visibility or cost-efficient long-range, 850nm; for covert applications, 940nm.

Can I power an IP camera with a generic 12V wall-wart?

Not for a commercial deployment. Generic wall-warts are unregulated, not UL-listed for security applications, and typically don't include surge protection. Use a UL-listed surveillance power supply (Altronix AL series, UL 294 or UL 603) with battery backup where required. PoE is preferred when possible — single cable, centralized power management, UPS-backed.

What cable jacket rating do I need for in-ceiling runs?

Plenum-rated (CMP) cable is required for any run through a return-air plenum space above suspended ceilings (most commercial buildings). Riser (CMR) for vertical shafts between floors. PVC (CM) for open office spaces only. Using non-plenum cable in a plenum space is a fire-code violation under NFPA 70 and will be rejected by inspectors. Budget plenum cable for any building where you're not 100% sure of the return-air path.

Accessories

Deployment Considerations

Sub categories

Showing Results for Accessories

Pelco WBOVA2 Wall Bracket Internal Cable Channel Gray

Pelco WBOVQ2B_FLIR Wall Mount FLIR Custom Color

Pelco WCM3A Ceiling Bracket with Ball Joint

Pelco WCPA Wall Bracket Adapter Plate

Pelco WCS1-4 Single-Output Camera Power Supply 4A

Pelco WCW2B_FLIR Corner Mount Adapter

Pelco WCWA Corner Mount Adaptor Bracket

Pelco WCWG2B_FLIR Corner Mount FLIR Custom Color

Pelco WCWGC Corner Mount Adapter Large Housing

Pelco WEXTUB30 Antistatic Water Pipe Extension 30m

Pelco WFWCA Column Mount Ball Joint Camera Housing

Pelco WLMT-1001 Wall Mount Bracket Large Pendant

Pelco WLMT-1031 30cm Pendant Arm

Pelco WMVE-SW Dome Wall Mount 0.75-1.5in NPT White

Pelco WSFPA Pole Mount Adapter 65-140mm

Pelco WSFPQ2B_FLIR Pole Mount Adapter FLIR Custom

Browse by Product Family

What to Look For When Buying

Technology Stack

Typical Deployment Scenarios

Top Brands for Outdoor Deployments

Frequently Asked Questions

Related Categories

Engineering Reading
