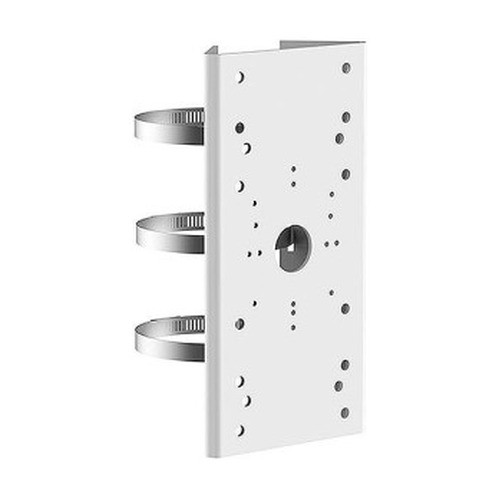

Hikvision PM Pole Mount Adapter, White
The Hikvision PM pole mount adapter delivers a straightforward mechanical solution for securing IP cameras to poles in outdoor surveillance installations. Built from aluminum die-cast construction reinforced with stainless steel clasps, this adapter is engineered for long-term durability in weather-exposed environments without overcomplicating the installation.
Key Features
- Aluminum die-cast mounting board: Resists corrosion and maintains structural integrity through thermal cycling and UV exposure — critical for outdoor installations where rust or material degradation could compromise camera alignment over months or years.
- Stainless steel clasps: Handle the salt, humidity, and temperature swings typical of perimeter and parking lot deployments without requiring periodic maintenance or replacement.
- 14.3 lbs maximum weight capacity: Supports most standard fixed and varifocal IP cameras plus moderate-weight lens kits or weatherproof housings, but falls short for heavy PTZ units or multi-sensor arrays — size your camera payload before ordering.
- White finish: Blends into building fascias and pole surfaces for low-profile installations where visual discretion matters more than high-visibility deterrent mounting.
- Pole-mount form factor: Designed to wrap around poles ranging from 2 to 4 inches in diameter — verify your pole size before installation to avoid fitment issues.
- Compatible with select wall mount brackets: Check your camera's mounting interface and the bracket compatibility matrix before assuming drop-in integration; not all Hikvision bracket patterns work with this adapter.
Installation & Safety Considerations
For optimal stability and to prevent vibration-induced image drift during wind events, select a pole rated to support at least three times the combined weight of your camera, adapter, and any weatherproof enclosure. This 3:1 safety margin is essential—undersizing the pole will result in movement that degrades video quality and can stress the adapter fasteners over time. Ensure the pole surface is clean and free of loose paint or rust before clamping; debris can prevent even clasp contact and create micro-movement under load.
Integration & Compatibility
This adapter integrates with Hikvision IP camera mounting interfaces and select third-party bracket patterns. Verify your specific camera model's mounting footprint against the adapter's clasp geometry. The white finish coordinates with typical outdoor infrastructure but may require touch-up paint in high-UV environments after 2–3 years of exposure.
When to Choose a Different Mounting Solution
If your camera payload exceeds 14.3 lbs, or if you require articulated pan-tilt capability, evaluate dedicated pole mounts or PTZ-rated adapters in the same manufacturer's accessory line. For wall-only or soffit installations, a standard bracket mount may be simpler and faster to deploy.
Frequently Asked Questions
Q: Will the PM adapter work with non-Hikvision cameras?
A: The PM is designed primarily for Hikvision camera mounting interfaces. If your camera uses a standard 1/4-inch tripod mount or universal VESA pattern, compatibility depends on mechanical fit—verify before purchase.
Q: What is the maximum pole diameter the PM supports?
A: The adapter is designed for poles approximately 2 to 4 inches in diameter. Outside this range, clasp pressure and contact may be compromised.
Q: Can I use the PM in coastal or high-salt environments?
A: The stainless steel clasps resist corrosion in coastal settings, but the aluminum die-cast body will benefit from periodic rinsing with fresh water to remove salt residue. Plan for eventual surface oxidation in extreme salt-spray zones.
Q: Is the PM weatherproof rated to IP66 or IP67?
A: The adapter itself does not carry an IP rating—it is a mechanical mounting bracket. Your camera's IP rating determines water and dust ingress protection. The adapter's stainless steel components resist corrosion but are not hermetically sealed.
Q: What fasteners are included?
A: Refer to the installation guide in your shipment for a complete list of included fasteners and torque specifications. Ensure fasteners are stainless or galvanized steel for outdoor durability.
Q: Can the PM be mounted horizontally on a flat pole or only vertically?
A: The adapter clamps around the pole circumference, so orientation (horizontal, vertical, or angled) depends on the pole's shape and your camera's desired field of view. Test the clasp's grip on your specific pole before final installation.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Hikvision PM is a no-nonsense pole clamp designed to handle the mechanical demands of outdoor surveillance without engineering overreach. Its 14.3 lbs weight capacity places it squarely in the fixed-camera range—expect to work with bullet and turret form factors, not PTZ units or multi-sensor arrays.
Technical Highlights:
- Aluminum die-cast with stainless steel clasps: Dual-material approach means corrosion resistance on the critical contact surfaces (clasps) while keeping weight down on the structural member (die-cast body). Real-world durability benefit: outdoor installations will see minimal maintenance requirements over 3–5 years, even in humid or salt-spray environments.
- 14.3 lbs capacity: This is the hard constraint. A typical 2MP fixed camera with a weatherproof housing runs 6–8 lbs; a 4MP varifocal with extended lens can push 9–11 lbs. You've got headroom, but multi-camera or heavy lens combinations will overshoot this limit.
- White finish with 2–4 inch pole diameter range: The finish choice affects visual discretion but requires touch-up paint every 2–3 years in high-UV zones. Pole diameter tolerance is tight—loose clamping on 2-inch poles or squeeze-related alignment shift on 4-inch poles are real gotchas on borderline sizes.
Deployment Considerations:
- The 3:1 safety margin recommendation is not marketing language—it is structural fact. A 14 lb camera on a pole rated for 40 lbs will vibrate audibly in wind events, degrading image quality and stressing fasteners. You must over-spec the pole, not just meet the minimum.
- Clasp contact depends on pole surface cleanliness. Old paint, rust, or corrosion layer on the pole surface will prevent even pressure, leading to micro-movement under thermal cycling. Pre-installation pole preparation is not optional.
Deploy the PM in perimeter surveillance, parking lot pole runs, and building exterior bracket-replacement work where camera payloads stay under 11 lbs and poles are structurally robust. Skip this adapter for any PTZ unit, multi-sensor module, or installation on undersized poles.
