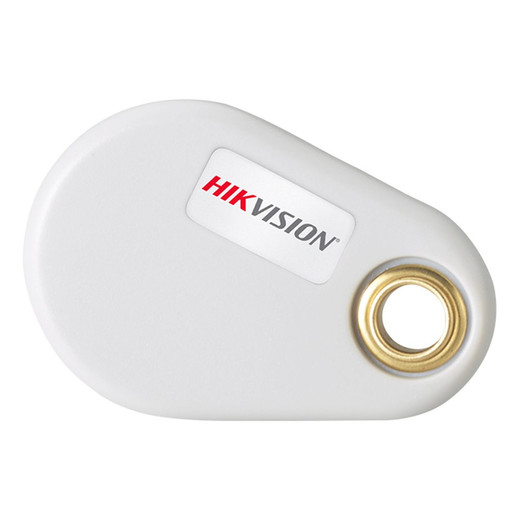

Hikvision DS-K7M153-P RFID Proximity Key Fob
The Hikvision DS-K7M153-P is a passive RFID proximity key fob designed for secure, contactless access control in enterprise and institutional environments. Operating at 125 kHz with no battery requirement, this compact clamshell fob delivers reliable authentication across standard Wiegand and magnetic stripe formats, integrating seamlessly into existing Hikvision access control systems and compatible third-party infrastructure.
Key Features
- Passive RFID technology—no battery maintenance required
- 125 kHz frequency with up to 3.5" (88 mm) read range
- Dual format support: Wiegand (26-bit and custom) and ABA Track II magnetic stripe
- Compact clamshell design with reinforced brass eyelet for keychain attachment
- Durable ABS construction rated for –35° to 122° F operating temperatures
- Lightweight at 0.12 oz per fob, shipped in convenient packs of 25
Technical Specifications
- Format Compatibility: Wiegand 26-bit, custom Wiegand formats, ABA Track II magnetic stripe (clock and data)
- Material: ABS with gray finish
- Dimensions: 1.2" W × 1.5" H × 0.15" D (30 mm × 38 mm × 3.8 mm)
- Operating Environment: –35° to 122° F (–37° to 50° C); 0–95% humidity (non-condensing)
- Bulk Packaging: 25 fobs per box; shipping dimensions 3.5" W × 2.3" H × 1.8" D
Applications
Ideal for corporate offices, educational institutions, government facilities, and access-controlled venues requiring cost-effective, maintenance-free credential distribution. The passive design eliminates battery replacement cycles while maintaining reliable performance across diverse climate conditions.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DS-K7M153-P represents a mature, vendor-neutral approach to RFID access credentials. Its passive operation removes operational overhead associated with active fobs, while dual-format support ensures compatibility with both modern Wiegand readers and legacy magnetic stripe infrastructure. The 3.5-inch read range is standard for 125 kHz proximity devices and suits typical door reader installations.
Wide temperature tolerance and non-condensing humidity rating indicate suitability for outdoor or temperature-variable deployments. For organizations managing mixed access control generations, this fob's format flexibility provides an efficient migration bridge.
