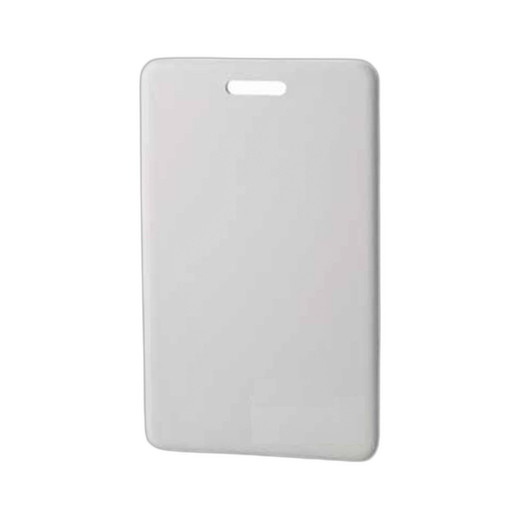

Hikvision DS-K7M151-P 125kHz Proximity Clamshell Access Card

Hikvision DS-K7M151-P 125kHz Proximity Clamshell Card

The DS-K7M151-P is a passive 125 kHz proximity card engineered for enterprise access control without battery maintenance overhead. Operating passively means no cell replacement cycles, no disposal costs, and no performance degradation as power depletes—a meaningful reduction in lifecycle overhead across large deployments. The card delivers consistent range and read reliability across temperature extremes from –35°F to 122°F, making it viable for both climate-controlled office lobbies and unheated loading docks or outdoor credential stations.

Key Features

• Passive 125 kHz operation: No battery required. In a 500-card annual refresh cycle, battery-free design eliminates roughly 500 battery disposal events and recurring provisioning labor—a practical advantage in high-turnover environments like retail, hospitality, and logistics hubs.
• 8-inch read range (202 mm): Users don't need to remove the card from a wallet or badge holder or position it precisely at the reader. Faster throughput at access points, reduced friction at high-traffic entry gates, and lower reader mounting precision requirements during installation.
• Dual format support (Wiegand + magnetic stripe): Wiegand 26-bit and custom formats plus ABA Track II magnetic stripe (clock and data) allow you to migrate between legacy magnetic-stripe systems and modern Wiegand-based platforms without replacing cards. Cuts cost and operational disruption during system upgrades.
• Durable ABS clamshell construction: The standard vertical slot punch integrated into the card housing withstands repeated insertion cycles, key-ring attachment, and wallet wear. In high-churn facilities (contract staff, temporary access, frequent card reissues), durability directly impacts replacement frequency and support costs.
• Standard ID dimensions (2.2" W × 3.4" H × 0.06" D): Fits wallets, lanyards, and badge holders without requiring custom carry solutions. No special infrastructure needed for issuance or distribution.
• Off-white finish with date code and ID marking: Professional appearance plus built-in inventory tracking—date code ties each card to an issuance batch, ID marking supports audit trails and loss recovery workflows.

Environmental & Operating Specifications

Operating temperature range of –35°C to 50°C (–35°F to 122°F) with humidity tolerance from 0% to 95% (non-condensing) means the card performs reliably in unheated warehouses, outdoor entry gates, and refrigerated facilities without environmental degradation. Weight of 0.3 oz per card and 0.6 lbs per box of 25 simplifies inventory tracking and logistics; shipping box footprint (3.5" W × 2.3" H × 1.8" D) fits standard storage and reduces bulk in secure issuance closets.

Integration & Compatibility

The DS-K7M151-P integrates with Hikvision access control systems and any third-party reader supporting 125 kHz Wiegand (26-bit, custom format) and ABA Track II magnetic stripe protocols. Dual-format capability is especially valuable if you operate a mixed ecosystem—existing readers using magnetic stripe can coexist with newer Wiegand-based readers without credential replacement. During a phased access control modernization, cards purchased today remain usable throughout the transition.

Frequently Asked Questions

Q: Can the DS-K7M151-P be used with non-Hikvision access control readers?

A: Yes. The card supports industry-standard Wiegand (26-bit and custom formats) and ABA Track II magnetic stripe, so it works with any reader implementing these protocols. Hikvision readers are supported, but the card is not proprietary to Hikvision hardware.

Q: Is the card reusable if an employee leaves, or is it single-use?

A: The DS-K7M151-P is a physical credential; it can be deprovisioned in the access control system and reissued to another employee. The card itself is durable and reusable across multiple users if your security policy permits.

Q: What is the practical read range in real-world conditions?

A: The spec is up to 8 inches (202 mm). Actual range depends on reader antenna design and magnetic shielding in the immediate environment. Most enterprise readers achieve the full 8 inches; some legacy readers may require closer positioning.

Q: Does the clamshell design prevent the card from being demagnetized?

A: The ABS clamshell provides physical protection but does not shield against magnetic fields. Prolonged exposure to strong magnets may degrade the magnetic stripe data. Standard office handling and wallet storage do not pose a risk.

Q: Can I print or encode custom data on the card after purchase?

A: The DS-K7M151-P arrives blank. Encoding (Wiegand or magnetic stripe) and printing (photo, name, ID number) are typically handled by the access control system or card issuance software during provisioning. Verify your issuance equipment supports this card's format.

Q: What happens if a card is lost or stolen?

A: Deprovisioning the card in your access control system immediately revokes access. The physical card itself cannot be remotely disabled, so prompt deactivation upon loss or theft is essential. No remote wipe capability exists.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-K7M151-P (often searched as DS K7M151 P) makes sense when your facility is built on proximity reader infrastructure and you want zero ongoing card maintenance. Passive 125 kHz technology means the card works reliably in -35°F warehouse environments without battery management headaches—deploy it and forget it.

Technical Highlights:

• 8-inch read range: Users don't position cards precisely; throughput at access gates increases and reader mounting tolerance widens during install. Meaningful in high-traffic environments (50+ passages per day per reader).
• Dual-format support (Wiegand + magnetic stripe): If you're running a mixed-vintage system or migrating readers, this card is transparent to both—no forced replacement during infrastructure upgrades.
• Temperature resilience (-35°C to 50°C): Unheated loading docks, outdoor credential stations, and refrigerated access points don't stress the card. No performance cliff at temperature extremes.

Deployment Considerations:

• Magnetic stripe is susceptible to demagnetization if stored near strong magnets—relevant if cards live in tool belts or near industrial machinery.
• The card must be deprovisioned in your access control system to revoke access; there is no remote disable. Lost or stolen cards require immediate administrative action.
• Card issuance and encoding must be handled by software compatible with Wiegand or magnetic stripe encoding—verify your card printer or issuance platform supports the DS-K7M151-P before bulk purchase.

Best fit: corporate office deployments, retail/hospitality with high staff turnover, logistics and warehouse facilities, and any site running legacy magnetic-stripe readers alongside newer Wiegand systems. Skip this if you need advanced capabilities like smart cards, biometric integration, or mobile/cloud credential revocation.
