Hikvision DS-9616NI-I8 16-Channel 4K NVR

Hikvision DS-9616NI-I8 16-Channel 4K NVR

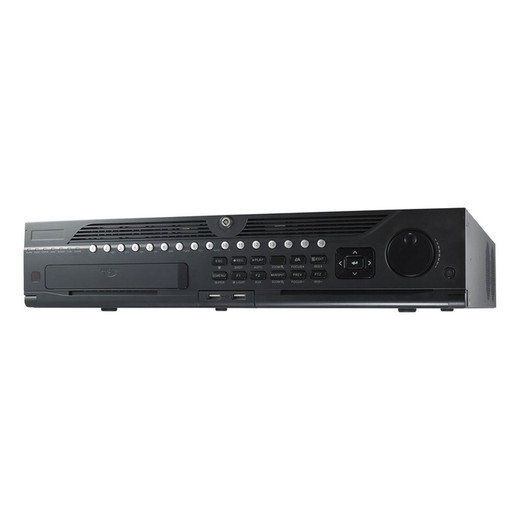

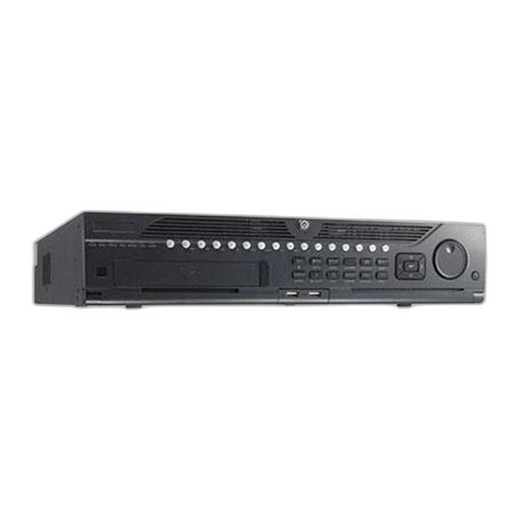

The Hikvision DS-9616NI-I8 is a professional-grade 16-channel network video recorder built for enterprise surveillance deployments requiring high-capacity recording, advanced data protection, and flexible connectivity. This 2U rackmount NVR combines powerful processing capabilities with efficient H.265+ compression to deliver 4K-quality footage while minimizing storage overhead and bandwidth consumption. Ideal for large-scale security operations, the DS-9616NI-I8 supports simultaneous recording from up to 16 IP cameras at resolutions up to 12MP, with channel 1 capable of ultra-HD 32MP or 24MP recording when ultra HD resolution mode is enabled.

Key Features

• 16-channel IP video input supporting resolutions up to 12MP (32MP/24MP on channel 1 with ultra HD mode)
• H.265+ video compression reducing storage and bandwidth by up to 70% versus H.264
• Dual-stream recording for flexible playback and remote access configurations
• 8 SATA interfaces with hot-plug support (up to 80TB total capacity with 10TB drives)
• RAID 0, 1, 5, 6, and 10 support for data redundancy and fault tolerance
• Dual gigabit Ethernet ports (10/100/1000 Mbps) with 256 Mbps incoming/outgoing bandwidth
• 4K HDMI 1 output (3840×2160 @ 60Hz) plus dual simultaneous video outputs (HDMI/VGA)
• Two-way audio support with multiple compression formats (G.711, G.722, G.726, AAC, PCM)
• 128 remote user connections for distributed monitoring
• 1 eSATA port for external backup and expanded storage
• 16 alarm inputs and 4 alarm outputs for integrated security workflows
• Low power consumption (≤30W) suitable for always-on operations

Technical Highlights

The DS-9616NI-I8 features comprehensive H.265+/H.265/H.264+/H.264/MPEG4 decoding capabilities, enabling 1-channel 32MP @ 30fps, 2-channel 12MP @ 20fps, 4-channel 8MP @ 25fps, or 16-channel 1080p @ 30fps simultaneous playback. Network protocols include TCP/IP, DHCP, IPv4/IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCAI, and UPnP for seamless integration into diverse IT environments. Serial interfaces include RS-485 (full-duplex) and RS-232 for PTZ camera control and third-party device management. The unit operates reliably across -10°C to 55°C with 10% to 90% humidity tolerance.

Applications

Designed for enterprise, industrial, and critical infrastructure surveillance including large retail facilities, corporate campuses, airports, transportation hubs, and data centers. The combination of high-channel density, robust RAID options, and extensive remote connectivity makes it suitable for 24/7 continuous recording environments where data integrity and accessibility are paramount.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-9616NI-I8 represents Hikvision's enterprise-class NVR platform, prioritizing storage efficiency and operational resilience. The H.265+ codec is production-proven for reducing TCO in large deployments—a 70% bandwidth reduction directly lowers ISP costs and enables higher-resolution cameras on existing network infrastructure. RAID support (particularly RAID 6 and 10) is essential for mission-critical recording; the requirement of minimum 4TB per drive reflects professional-grade expectations.

Dual gigabit Ethernet with 256 Mbps per direction is adequate for 16×8MP streams at 30fps with overhead, though larger camera sensor deployments (24MP/32MP on channel 1) may require careful bandwidth planning. The 8 SATA bays and 10TB per-drive capacity ceiling provide 80TB maximum internal capacity—sufficient for 30+ days of 16-channel 8MP continuous recording depending on compression ratios. Simultaneous dual-output support (HDMI1/VGA1 primary, HDMI2/VGA2 auxiliary) is valuable in SOCs where separate monitoring consoles and backup displays are standard.

The low power envelope (≤30W) is noteworthy for a 16-channel unit and suggests efficient architecture suitable for remote or power-constrained installations.
