Hikvision DS-9616NI-I8-1TB
Hikvision DS-9616NI-I8-1TB

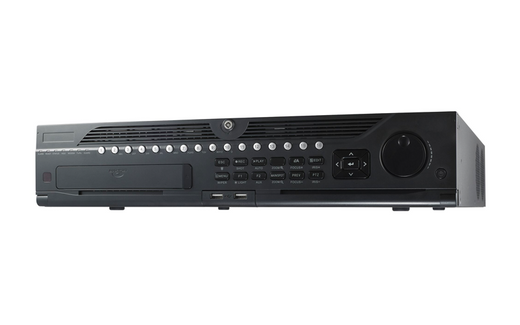

Hikvision DS-9616NI-I8-1TB 16-Channel 4K 1TB NVR - image 1
Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: DS-9616NI-I8-1TB
UPC: 842571103595
Condition: New
Availability: No Longer Available
Warranty 5-year warranty
Write a Review 31% OFF
Hikvision

Hikvision DS-9616NI-I8-1TB 16-Channel 4K 1TB NVR

Discontinued — No Longer Available NewThis model has been discontinued by Hikvision. Shop current Hikvision products → or see the recommended alt…

$1,835.00 $1,263.99 SAVE $571
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Senior specialists for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Laura Bennett, IPSD Senior Specialist

Talk to Laura

200+ hrs training • U.S - based

Senior Specialist • 877-277-7147

Message Call

Hikvision DS-9616NI-I8-1TB 16-Channel 4K 1TB NVR

$1,835.00
$1,263.99
Add to Cart

Overview

SKU: DS-9616NI-I8-1TB
UPC: 842571103595
Condition: New
Availability: No Longer Available
Warranty 5-year warranty

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Discontinued — No Longer Available New

This model has been discontinued by Hikvision. Shop current Hikvision products → or see the recommended alternatives below.

The Hikvision DS-9616NI-I8-1TB is a cost-effective network video recorder (NVR) designed for businesses requiring high-definition surveillance with basic recording needs. It delivers exceptional 4K resolution recording, making it suitable for applications where intricate detail in captured footage is crucial. The NVR features efficient H.265+ video compression and offers remote access capabilities, allowing convenient management and monitoring from anywhere. While the pre-installed 1TB HDD caters to shorter recording durations, the NVR provides expandability for increased storage demands.

Key Features:

  • 16-channel recording support: Manage and record footage from up to 16 IP cameras simultaneously.
  • 4K Ultra HD resolution: Experience unparalleled image clarity and detail with 4K resolution recording (3840 x 2160 pixels).
  • 1TB pre-installed HDD: Store essential video footage for basic recording needs.
  • H.265+ video compression: Save significant storage space and bandwidth with cutting-edge H.265+ compression, reducing requirements by up to 70% compared to H.264.
  • Up to 12 MP resolution recording: Supports a wide range of camera resolutions for versatile deployment scenarios.
  • 8 SATA HDD interfaces: Provides flexibility for expanding storage capacity as needed (up to 8TB total).
  • RAID 0, 1, 5, and 6 support: Enhances data redundancy and fault tolerance, protecting your recordings in case of drive failure (RAID configuration requires additional HDDs).
  • Two-way audio support: Enables real-time audio communication through connected cameras.
  • HDMI and VGA outputs: Connect the NVR to displays for local monitoring and playback.
  • Mobile and remote access: Monitor your cameras and recordings remotely through the Hikvision mobile app or web interface.

Compatibility:

  • The Hikvision DS-9616NI-I8-1TB is compatible with a wide range of IP cameras, including Hikvision and third-party brands conforming to ONVIF standards.

Package Contents:

  • Hikvision DS-9616NI-I8-1TB NVR
  • 1TB HDD pre-installed
  • Power cord
  • USB mouse
  • Quick start guide

Summary:

The Hikvision DS-9616NI-I8-1TB NVR offers a cost-effective solution for businesses seeking high-definition surveillance with the ability to scale storage capacity as needed. Its 4K recording capabilities, H.265+ compression, and remote access features make it a valuable asset for organizations requiring a balance between functionality and affordability.

Expert Analysis
Specifications
Frame Rate: 30fps
IP Video Input: 16-ch, up to 12 MP
Incoming Bandwidth: 256 Mbps
Outgoing Bandwidth: 256 Mbps
Incoming Bandwidth (RAID Mode: 200 Mbps
Outgoing Bandwidth (RAID Mode: 200 Mbps
HDMI 1 Output: 4K/60Hz, 1080p/60Hz
HDMI 2 Output: 1920×1080@60Hz, 1280×1024@60Hz
VGA 1 Output: 1920×1080@60Hz
VGA 2 Output: 1920×1080/60Hz, 1280×1024/60Hz
Video Output Mode: HDMI 1, VGA 1 (main); HDMI 2, VGA 2 (aux)
CVBS Output: 1-ch BNC, 1.0 Vp-p 75Ω, PAL 704×576 NTSC 704×480
Audio Output: 2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4
Recording Resolution: 32 MP, 24 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP
Synchronous Playback: 16-ch
Decoding Capability: 1-ch@32MP/2-ch@12MP/4-ch@8MP/8-ch@4MP/16-ch@1080p
Dual-Stream Recording: Support
Stream Type: Video, Video & Audio
Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Remote Connection: 128
Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID Type: RAID 0/1/5/6/10
Serial Interface: 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
SATA: 8 SATA interfaces supporting hot-plug
ESATA: 1 eSATA interface
Capacity: Up to 10TB capacity for each disk
Alarm In/Out: 16/4
USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power Type: 100 to 240 VAC, 50 to 60 Hz
Consumption: ≤ 30 W
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10% to 90%
Chassis: 2U chassis
Dimension (W × D × H: 445 × 465 × 92 mm ( 17.5"× 18.3" × 3.6")
Weight: ≤ 10 kg (22 lb)
FCC: Part 15 Subpart B, ANSI C63.4-2014
CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Housing Color: White
