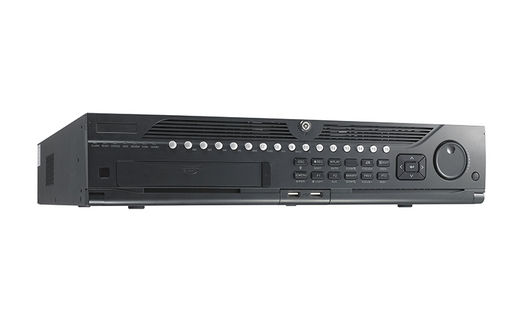

Hikvision DS-9616NI-I8-32TB 16-Channel 4K 32TB NVR

Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: DS-9616NI-I8-32TB

UPC: 842571103731

Condition: New

Availability: No Longer Available

Warranty 5-year warranty

Write a Review 43% OFF

Hikvision DS-9616NI-I8-32TB 16-Channel 4K 32TB NVR

Discontinued — No Longer Available NewThis model has been discontinued by Hikvision. Shop current Hikvision products → or see the recommended alt…

$5,380.00 $3,076.99 SAVE $2303

Usually Ships Same Business Day

In stock

Compatibility guidance available for your deployment

Experts for pre and post-sales support

Technical and documentation support

Shipping and lead-time confirmation before install

Talk to Laura

Specialized training • U.S - based

Senior Specialist • 877-277-7147

Message Call

Frame Rate 30fps
IP Video Input 16-ch, up to 12MP
Incoming Bandwidth 256 Mbps
Outgoing Bandwidth 256 Mbps
Incoming Bandwidth (RAID Mode 200 Mbps
Outgoing Bandwidth (RAID Mode 200 Mbps
HDMI 1 Output 4K@60Hz, 1080p@60Hz
HDMI 2 Output 1920×1080@60Hz, 1280×720@60Hz
VGA 1 Output 1920×1080@60Hz
VGA 2 Output 1920×1080@60Hz, 1280×1024@60Hz
Video Output Mode HDMI 1, VGA 1 (main); HDMI 2, VGA 2 (aux)
CVBS Output 1-ch BNC, 704×576 (PAL) / 704×480 (NTSC)
Audio Output 2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format H.265+/H.265/H.264+/H.264/MPEG4
Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/720p/
Synchronous Playback 16-ch
Decoding Capability 1-ch@32MP(30fps)/16-ch@1080p(30fps)
Dual-Stream Recording Support
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Remote Connection 128
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID Type RAID 0/1/5/6/10
Serial Interface 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
SATA 8 SATA interfaces supporting hot-plug
ESATA 1 eSATA interface
Capacity Up to 10TB capacity for each disk
Alarm In/Out 16/4
USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power Type 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 30 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Chassis 2U chassis
Dimension (W × D × H 445 × 465 × 92 mm ( 17.5"× 18.3" × 3.6")
Weight ≤ 10 kg (22 lb)
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Housing Color White

Support & deployment services are available

Hikvision DS-9616NI-I8-32TB 16-Channel 4K 32TB NVR

$5,380.00

$3,076.99

Overview

SKU: DS-9616NI-I8-32TB

UPC: 842571103731

Condition: New

Availability: No Longer Available

Warranty 5-year warranty

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)

Description
Expert Analysis
Specifications
Product Video
Q&A
Reviews

Description

Discontinued — No Longer Available New

This model has been discontinued by Hikvision. Shop current Hikvision products → or see the recommended alternatives below.

The Hikvision DS-9616NI-I8-32TB is a high-performance network video recorder (NVR) designed for demanding business security applications. It delivers exceptional 4K resolution recording and boasts a substantial 32TB pre-installed HDD, ideal for organizations requiring extensive, high-definition surveillance footage storage. Additionally, the NVR incorporates advanced features like H.265+ video compression and mobile remote access, ensuring efficient storage management and convenient monitoring capabilities.

Key Features:

16-channel recording support: Manage and record footage from up to 16 IP cameras simultaneously.
4K Ultra HD resolution: Experience unparalleled image clarity and detail with 4K resolution recording (3840 x 2160 pixels).
32TB pre-installed HDD: Store significant video footage with the generous pre-installed hard drive capacity.
H.265+ video compression: Save significant storage space and bandwidth with cutting-edge H.265+ compression, reducing requirements by up to 70% compared to H.264.
Up to 12 MP resolution recording: Supports a wide range of camera resolutions for versatile deployment scenarios.
8 SATA HDD interfaces and 1 eSATA interface: Provides flexibility for expanding storage capacity as needed.
RAID 0, 1, 5, 6, and 10 support: Enhances data redundancy and fault tolerance, protecting your recordings in case of drive failure.
Two-way audio support: Enables real-time audio communication through connected cameras.
HDMI and VGA outputs: Connect the NVR to displays for local monitoring and playback.
Mobile and remote access: Monitor your cameras and recordings remotely through the Hikvision mobile app or web interface.

Compatibility:

The Hikvision DS-9616NI-I8-32TB is compatible with a wide range of IP cameras, including Hikvision and third-party brands conforming to ONVIF standards.

Package Contents:

Hikvision DS-9616NI-I8-32TB NVR
32TB HDD pre-installed
Power cord
USB mouse
Rack-mounting kit
Quick start guide

Summary:

The Hikvision DS-9616NI-I8-32TB NVR stands out with its exceptional 4K resolution recording, massive pre-installed storage capacity, and advanced features like H.265+ compression and mobile remote access. It caters to demanding business security requirements, offering a comprehensive solution for extensive, high-definition surveillance needs.

Expert Analysis

Specifications

Frame Rate: 30fps

IP Video Input: 16-ch, up to 12MP

Incoming Bandwidth: 256 Mbps

Outgoing Bandwidth: 256 Mbps

Incoming Bandwidth (RAID Mode: 200 Mbps

Outgoing Bandwidth (RAID Mode: 200 Mbps

HDMI 1 Output: 4K@60Hz, 1080p@60Hz

HDMI 2 Output: 1920×1080@60Hz, 1280×720@60Hz

VGA 1 Output: 1920×1080@60Hz

VGA 2 Output: 1920×1080@60Hz, 1280×1024@60Hz

Video Output Mode: HDMI 1, VGA 1 (main); HDMI 2, VGA 2 (aux)

CVBS Output: 1-ch BNC, 704×576 (PAL) / 704×480 (NTSC)

Audio Output: 2-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4

Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/720p/

Synchronous Playback: 16-ch

Decoding Capability: 1-ch@32MP(30fps)/16-ch@1080p(30fps)

Dual-Stream Recording: Support

Stream Type: Video, Video & Audio

Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Remote Connection: 128

Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID Type: RAID 0/1/5/6/10

Serial Interface: 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard

SATA: 8 SATA interfaces supporting hot-plug

ESATA: 1 eSATA interface

Capacity: Up to 10TB capacity for each disk

Alarm In/Out: 16/4

USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Power Type: 100 to 240 VAC, 50 to 60 Hz

Consumption: ≤ 30 W

Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity: 10% to 90%

Chassis: 2U chassis

Dimension (W × D × H: 445 × 465 × 92 mm ( 17.5"× 18.3" × 3.6")

Weight: ≤ 10 kg (22 lb)

FCC: Part 15 Subpart B, ANSI C63.4-2014

CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Housing Color: White
