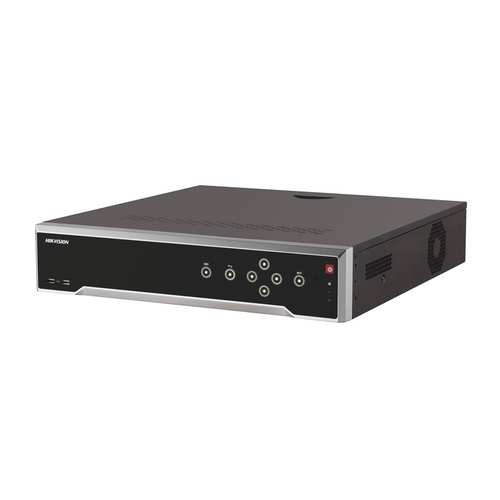

Hikvision DS-7716NI-I4/16P-2TB DS-7716NI-I4/16P-2TB 16-Channel 4K 2TB NVR

Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: DS-7716NI-I4/16P-2TB

UPC: 813908024654

Condition: New

Availability: No Longer Available

Warranty 5-year warranty

Write a Review 43% OFF

Hikvision DS-7716NI-I4/16P-2TB 16-Channel 4K 2TB NVR

Discontinued — No Longer Available NewThis model has been discontinued by Hikvision. Shop current Hikvision products → or see the recommended alt…

$1,370.00 $783.99 SAVE $586

Usually Ships Same Business Day

In stock

Compatibility guidance available for your deployment

Experts for pre and post-sales support

Technical and documentation support

Shipping and lead-time confirmation before install

Talk to Laura

Specialized training • U.S - based

Senior Specialist • 877-277-7147

Message Call

Frame Rate 32fps
IP Video Input 16-ch;16-ch;Up to 12 MP resolution
Outgoing Bandwidth 256 Mbps
VGA Output 1920×1080/60Hz, HDMI, VGA
CVBS Output 1-ch BNC, PAL 704×576, NTSC 704×480
HDMI 1 Output 4K@60Hz, 1080p@60Hz
HDMI 2 Output 1920×1080/60Hz
Video Output Mode HDMI1/VGA simultaneous output, HDMI2/VGA independent output
Incoming Bandwidth 160 Mbps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Dual-Stream Recording Support
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726
Decoding Format H.265+/H.265/H.264+/H.264/MPEG4
Decoding Capability 2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps);16-ch@1080p
Synchronous Playback 16-ch
Recording Resolution 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, V
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Remote Connection 128
Network Interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Connectivity Wired
Standard IEEE 802.3 af/at
ESATA 1 eSATA interface (optional)
SATA 4 SATA interfaces for 4HDDs;4 SATA interfaces
Capacity Up to 10 TB capacity for each disk
Serial Interface 1 RS-485 (half-duplex), 1 RS-232
USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out 16/4 (16/8 optional)
Power Type 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 20 W (without HDD and PoE off)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Chassis 19-inch rack-mounted 1.5U chassis
Dimension (W × D × H 440 × 387 × 75 mm ( 17.3"× 15.2" × 3.0")
Weight ≤ 5 kg (11 lb) (without HDD)
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Housing Color White

Support & deployment services are available

Hikvision DS-7716NI-I4/16P-2TB 16-Channel 4K 2TB NVR

$1,370.00

$783.99

Overview

SKU: DS-7716NI-I4/16P-2TB

UPC: 813908024654

Condition: New

Availability: No Longer Available

Warranty 5-year warranty

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)

Description
Expert Analysis
Specifications
Product Video
Q&A
Reviews

Description

Discontinued — No Longer Available New

This model has been discontinued by Hikvision. Shop current Hikvision products → or see the recommended alternatives below.

For businesses requiring a high-definition surveillance solution with streamlined setup, the Hikvision DS-7716NI-I4/16P-2TB NVR delivers exceptional value. This feature-rich NVR boasts 4K ultra-high definition recording capabilities, ensuring crisp visuals for detailed forensic analysis. The integrated PoE switch eliminates the need for separate power supplies for connected IP cameras, simplifying installation. The pre-installed 2TB hard drive offers adequate storage capacity for basic surveillance needs, making the DS-7716NI-I4/16P-2TB ideal for smaller deployments or businesses on a budget.

Key Features:

Integrated 16-Port PoE Switch: Powers IP cameras directly through the NVR, reducing cabling complexity and installation time.
4K Ultra-HD Recording: Delivers exceptional image quality with superior detail for reliable identification and evidence collection.
2TB Pre-installed HDD: Provides sufficient storage for video recordings, suitable for smaller surveillance systems or budget-conscious needs.
H.265+ Video Compression: Reduces storage requirements and bandwidth consumption by up to 50% compared to H.264, optimizing storage efficiency.
Plug-and-Play Functionality: Simplifies setup with an intuitive interface, minimizing IT resource requirements.
Smart Search and Playback: Enables quick retrieval of specific events using intelligent search filters based on motion detection or timeframes.
Mobile and Remote Access: Enables live viewing and playback of recorded footage from anywhere via a smartphone or tablet using the Hikvision mobile app.

Compatibility:

Compatible with a wide range of Hikvision IP cameras and other ONVIF-compliant IP cameras.

Package Contents:

Hikvision DS-7716NI-I4/16P-2TB NVR
Power supply
Mouse
Quick Start Guide

Summary:

The Hikvision DS-7716NI-I4/16P-2TB NVR offers a compelling solution for businesses seeking a cost-effective and user-friendly 4K video surveillance system. The integrated PoE switch streamlines setup, while exceptional image quality and H.265+ video compression provide efficient storage utilization. With remote access capabilities and included management software, the DS-7716NI-I4/16P-2TB is a versatile NVR for organizations seeking a balance between affordability and performance.

Expert Analysis

Specifications

Frame Rate: 32fps

IP Video Input: 16-ch;16-ch;Up to 12 MP resolution

Outgoing Bandwidth: 256 Mbps

VGA Output: 1920×1080/60Hz, HDMI, VGA

CVBS Output: 1-ch BNC, PAL 704×576, NTSC 704×480

HDMI 1 Output: 4K@60Hz, 1080p@60Hz

HDMI 2 Output: 1920×1080/60Hz

Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output

Incoming Bandwidth: 160 Mbps

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Dual-Stream Recording: Support

Stream Type: Video, Video & Audio

Audio Compression: G.711ulaw/G.711alaw/G.722/G.726

Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4

Decoding Capability: 2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps);16-ch@1080p

Synchronous Playback: 16-ch

Recording Resolution: 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, V

Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Remote Connection: 128

Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Connectivity: Wired

Standard: IEEE 802.3 af/at

ESATA: 1 eSATA interface (optional)

SATA: 4 SATA interfaces for 4HDDs;4 SATA interfaces

Capacity: Up to 10 TB capacity for each disk

Serial Interface: 1 RS-485 (half-duplex), 1 RS-232

USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm In/Out: 16/4 (16/8 optional)

Power Type: 100 to 240 VAC, 50 to 60 Hz

Consumption: ≤ 20 W (without HDD and PoE off)

Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity: 10% to 90%

Chassis: 19-inch rack-mounted 1.5U chassis

Dimension (W × D × H: 440 × 387 × 75 mm ( 17.3"× 15.2" × 3.0")

Weight: ≤ 5 kg (11 lb) (without HDD)

FCC: Part 15 Subpart B, ANSI C63.4-2014

CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Housing Color: White
