Hikvision DS-7716NI-I4/16P 16-Channel 4K NVR

Hikvision DS-7716NI-I4/16P 16-Channel 4K NVR with 16TB Storage

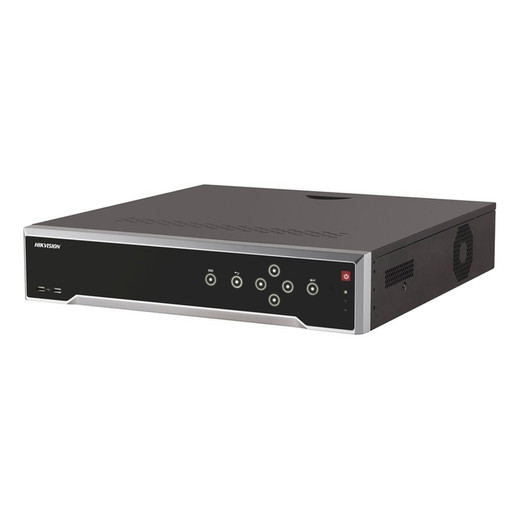

The Hikvision DS-7716NI-I4/16P-16TB is a professional-grade network video recorder engineered for mid to large-scale security deployments. This 16-channel NVR combines exceptional 4K recording capabilities with integrated PoE switching, delivering a complete surveillance backbone that reduces infrastructure complexity and total cost of ownership. The pre-installed 16TB hard drive provides extended retention periods, making it ideal for enterprises requiring comprehensive video archives for compliance and forensic investigation.

Key Features

• 16-Channel 12MP Recording: Supports simultaneous capture from 16 IP cameras at resolutions up to 12MP, with flexible resolution options (12MP, 8MP, 6MP, 4MP, 1080p, and lower) accommodating diverse camera deployments
• Integrated 16-Port PoE Switch: Eliminates need for external power supplies and separate network infrastructure, streamlining installation and reducing cable clutter
• H.265+ Compression: Advanced video codec reduces storage consumption and bandwidth requirements by up to 50% compared to H.264, extending recording duration and lowering operational costs
• Pre-installed 16TB Storage: Supports up to 4 SATA HDDs with 10TB capacity per disk, offering scalable storage architecture for growing surveillance needs
• Dual-Stream Recording: Enables simultaneous high-resolution primary streams and lower-bandwidth secondary streams for optimized playback and remote viewing
• 4K HDMI Output: HDMI 1 supports 4K (3840×2160) output at 60Hz, with simultaneous VGA output for flexible multi-monitor configurations
• 16-Channel Synchronous Playback: Review all camera feeds simultaneously during forensic analysis or incident investigation
• 128 Concurrent Remote Connections: Supports multiple authorized users accessing live feeds and recordings simultaneously via network

Technical Specifications

• Network Interface: 1 × RJ-45 10/100/1000 Mbps Gigabit Ethernet with TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, and HTTP/HTTPS protocols
• Decoding Capability: 2-ch@12MP (20fps), 4-ch@8MP (25fps), 8-ch@4MP (30fps), or 16-ch@1080p (30fps)
• Audio Support: Two-way audio via RCA connection; supports G.711ulaw/alaw, G.722, and G.726 compression formats
• Bandwidth Management: 160 Mbps incoming, 256 Mbps outgoing for optimized performance in bandwidth-constrained environments
• Connectivity Options: RS-485 serial interface, RS-232, 16/4 alarm I/O (expandable to 16/8), 2 × USB 2.0 (front), 1 × USB 3.0 (rear), and optional eSATA interface
• Power Efficiency: ≤200W consumption with optional PoE support (IEEE 802.3 af/at); operates in -10°C to 55°C temperature range
• Form Factor: Compact 19-inch rack-mounted 1.5U chassis (440×387×75mm) weighing ≤5kg without HDDs

Applications

Ideal for enterprise data centers, corporate campuses, retail chains, airports, transportation hubs, and critical infrastructure facilities requiring extensive multi-camera surveillance with centralized management and long-term video retention.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-7716NI-I4/16P represents Hikvision's mature approach to scalable surveillance architecture. The integrated 16-port PoE switch is a significant differentiator—it eliminates the need for external PoE injectors or separate network switches, reducing both hardware procurement costs and physical footprint. H.265+ encoding is particularly valuable for organizations managing extended retention schedules; the bandwidth and storage efficiencies compound significantly across 16 simultaneous camera feeds over weeks or months of continuous recording.

The NVR's support for 12MP resolution input positions it well for future-proofing—many enterprises are migrating to higher-density sensors, and this device accommodates that upgrade path. Dual-stream recording capability is essential for mixed-bandwidth environments where remote viewing needs differ from primary forensic recording requirements. The 256 Mbps outgoing bandwidth supports multiple simultaneous remote sessions without degrading local system performance.

The 16TB pre-install is practical but worth calculating: at 16 channels of H.265+ compressed video, actual retention depends heavily on camera resolution mix and motion-triggered recording policies. Organizations should model their specific scenario before purchase. The synchronous 16-channel playback is critical for incident investigation, enabling operators to review all camera perspectives simultaneously rather than sequentially.
