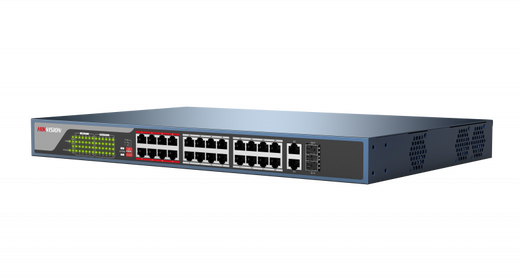

Hikvision DS-3E1326P-E
Hikvision DS-3E1326P-E
Hikvision DS-3E1326P-E
Hikvision DS-3E1326P-E 24-Port 10/100M PoE Web-Managed Switch 2 Gigabit RJ45 2 SFP Ports
Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: DS-3E1326P-E
UPC: 842571100945
Condition: New
Availability: No Longer Available
Warranty 5-year warranty
Write a Review 43% OFF

Hikvision DS-3E1326P-E 24-Port 10/100M PoE Web-Managed Switch 2 Gigabit RJ45 2 SFP Ports

Discontinued — No Longer Available NewThis model has been discontinued by Hikvision. Shop current Hikvision products → or see the recommended alt…

$746.00 $426.99 SAVE $319
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Certified experts for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Laura Bennett, IPSD Senior Specialist

Talk to Laura

200+ hrs training • U.S - based

Certified Expert • 877-277-7147

Live Chat Call

Hikvision DS-3E1326P-E 24-Port 10/100M PoE Web-Managed Switch 2 Gigabit RJ45 2 SFP Ports

$746.00
$426.99
Add to Cart

Overview

SKU: DS-3E1326P-E
UPC: 842571100945
Condition: New
Availability: No Longer Available
Warranty 5-year warranty

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Discontinued — No Longer Available New

This model has been discontinued by Hikvision. Shop current Hikvision products → or see the recommended alternatives below.

The Hikvision DS-3E1326P-E Web-Managed PoE Switch represents a significant leap forward in network management for IP surveillance and security systems, catering specifically to the nuanced needs of the business and IT sectors. This advanced switch features a comprehensive suite of 24 10/100M RJ45 PoE ports, supplemented by 2 high-speed 10/100/1000M RJ45 ports and 2 versatile 1000M SFP multiplex ports. Designed for optimal flexibility and performance, the DS-3E1326P-E enables efficient, high-speed data transmission and power over Ethernet, streamlining the deployment and management of network devices while providing robust web-managed capabilities for precise network customization and optimization.

Key Features:

  • 24 PoE Ports : Equipped with 24 10/100M RJ45 ports supporting Power over Ethernet, ideal for powering IP cameras and other PoE-enabled devices.
  • Gigabit Uplink Ports : Includes 2 10/100/1000M RJ45 ports for high-speed uplink connections, enhancing network backbone capabilities.
  • SFP Multiplex Ports : Offers 2 1000M SFP multiplex ports for flexible fiber connectivity, supporting long-distance network extensions.
  • Web-Managed Interface : Features a user-friendly web interface for advanced network management, including VLAN configuration, QoS prioritization, and security settings.
  • High PoE Power Budget : Delivers a substantial power budget to accommodate multiple high-powered PoE devices, ensuring reliable device operation.
  • Energy-Saving Technology : Integrates energy-efficient features to minimize power consumption across the network without compromising performance.

Compatibility:

  • Seamlessly integrates with Hikvision IP surveillance equipment and a broad array of PoE-compatible devices, ensuring a cohesive networking environment.
  • The diverse connectivity options, including fiber and gigabit uplink ports, provide versatile compatibility with existing network infrastructures and future expansions.

Package Contents:

  • Hikvision DS-3E1326P-E Web-Managed PoE Switch
  • Power Cable
  • Rack Mounting Brackets
  • Quick Start Guide
  • User Documentation

Summary:

The Hikvision DS-3E1326P-E stands out as a superior networking solution, combining extensive PoE port availability, high-speed uplink capabilities, and advanced web-managed features. It is engineered to meet the dynamic requirements of modern IP surveillance systems, offering businesses an efficient, scalable, and customizable network management platform. With its robust performance, energy efficiency, and extensive device compatibility, the DS-3E1326P-E PoE Switch is an ideal choice for enhancing the sophistication and reliability of networked security systems.

Expert Analysis
Specifications
Shell: Metal material
Net Weight: 2.83 kg (6.24 lb)
Gross Weight: 3.800 kg (8.38 lb)
Dimensions (W × H × D: 440.00 mm × 44.00 mm × 221.00 mm (17.32'' × 1.73'' × 8.70'')
Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity: 5% to 95% (no condensation)
Relative Humidity: 5% to 95% (no condensation)
Power Type: 100-240 VAC, 50/60 Hz, Max. 6.5 A
Max. Power Consumption: 400 W
Port Type: RJ45 port,full duplex,MDIMDI-X adaptive
Ports: 24 × 10/100 Mbps PoE port,2 × 1 Gigabit combo
Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
High Priority Ports: Ports 1 to 8
Forwarding Mode: Store-and-forward switching
Working Mode: Standard mode (default),Extend mode
MAC Address Table: 16 K
Switching Capacity: 8.8 Gbps
Packet Forwarding Rate: 6.5472 Mpps
Internal Cache: 4 Mbits
PoE Standard: IEEE 802.3af,IEEE 802.3at
PoE Power Pin: End-span: 1/2(-), 3/6(+); Mid-span: 4/5(+), 7/8(-)
PoE Port: PoE: Ports 1 to 24
Max. Port Power: 30 W
PoE Power Budget: 370 W
Device Maintenance: Remote upgrade, logs viewing, basic config
PoE Configuration: PoE port configuration
EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry: CE-RoHS, WEEE, REACH compliant
Housing Color: White
