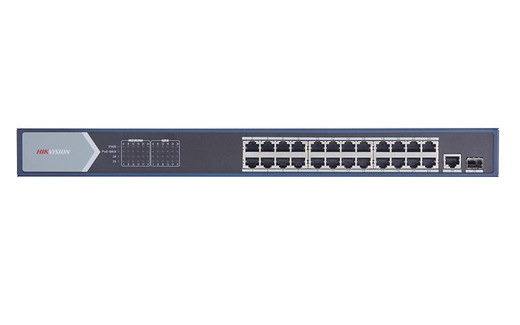

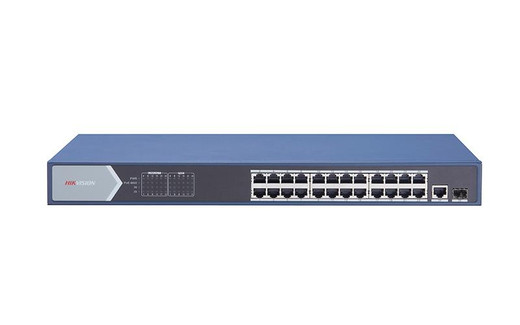

Hikvision DS-3E0526P-E 24-Port Gigabit PoE Unmanaged Switch

Hikvision DS-3E0526P-E 24-Port Gigabit PoE Unmanaged Switch

The Hikvision DS-3E0526P-E is a purpose-built unmanaged gigabit PoE switch engineered for IP camera deployments and distributed security infrastructure. With 24 gigabit PoE ports, a 1 gigabit RJ45 uplink, and 1 SFP fiber port, it delivers simultaneous power and data across a single cable to all connected devices—eliminating the need for separate power supplies and reducing installation labor on large surveillance jobs.

Key Features

• 24 Gigabit PoE Ports: Each port supplies power and data simultaneously via 802.3af and 802.3at standards, so any PoE-enabled camera or access control reader connects with one cable. No extra power injectors means fewer points of failure and simpler troubleshooting on multi-building sites.
• 225 W PoE Power Budget: Enough capacity to run 7–8 high-power cameras (30 W each) at full draw simultaneously. Real-world planning should account for 5–10% voltage drop over cable runs and device variance, but this budget handles most standard IP security deployments without requiring additional power modules.
• 52 Gbps Switching Capacity & 38.69 Mpps Throughput: High-performance fabric ensures latency-free forwarding even under peak load. For surveillance networks with dozens of simultaneous streams, this prevents bottlenecks at the switch and keeps frame delivery consistent across all cameras.
• Dual Uplink Options (RJ45 + SFP Fiber): The 1 gigabit RJ45 uplink serves most deployments, but the SFP slot lets you switch to multimode or single-mode fiber when the backbone spans buildings or long outdoor runs. This flexibility prevents hardware obsolescence if your network architecture changes without requiring a forklift upgrade.
• Unmanaged Zero-Touch Design: No VLAN configuration, no firmware updates, no login credentials—just power on and connect. This eliminates misconfiguration risk across multi-site deployments and drastically reduces training overhead for field technicians. Critical for rapid rollouts where deployment speed matters more than granular traffic control.
• 6 kV Surge Protection: Built-in defense against transient voltage spikes from lightning strikes or electrical faults. For outdoor perimeter cameras and rooftop sensors, this means fewer burned-out devices and lower warranty claim overhead compared to unprotected switches.
• 8 K MAC Address Table & 4.1 Mbit Packet Buffer: Stable performance under burst traffic from multiple high-resolution cameras or edge analytics devices. The large buffer prevents dropped frames during peak recording moments (e.g., alarm triggers across all cameras simultaneously).
• Compact 1U Rack Mount (440 × 44 × 220.8 mm): Fits standard 19-inch server racks, taking minimal space in control rooms, data closets, or outdoor equipment enclosures. Integrated mounting ears mean no additional bracket purchases.
• Low Idle Power Draw (25 W) & Maximum 250 W Under Full Load: Operating 24/7 across a year costs roughly $22–$26 in electricity (at U.S. average rates), making this practical for unattended remote sites. Energy efficiency supports longer UPS runtime if backup power is required.
• Wide Input Voltage (100–240 VAC, 50/60 Hz): Works globally without voltage converters. Single power supply covers North American, European, and Asian installations without stock-keeping headaches.
• Metal Chassis & Multi-Standard Certifications (FCC, CE-EMC, UL, CB, RCM, RoHS): Durable construction with electromagnetic shielding prevents RF interference in environments with radio transmitters or high-voltage equipment. Global certifications reduce import/export friction for multinational integrators.

Integration & Deployment Context

The DS-3E0526P-E integrates seamlessly into managed network switch backbones via its dual uplink ports. Connect the RJ45 to your core switch or use the SFP fiber port for longer-distance trunk runs. The unmanaged design does not support VLANs, QoS, or port mirroring—if you need traffic segmentation or granular monitoring, pair this switch with a managed upstream device or choose a managed variant from the Hikvision family.

For access control, building intercoms, and door readers operating over Ethernet, the 225 W budget accommodates 7–10 additional devices alongside cameras, though real deployments benefit from power calculations before final commissioning.

When to Choose a Different Model

If your deployment requires VLAN segmentation, per-port QoS, or port mirroring for network intrusion detection, evaluate a managed PoE switch instead. Similarly, if your cameras draw more than 30 W each (some panoramic or PTZ models exceed this), calculate total power demand before ordering—you may need multiple switches or a higher-budget managed variant.

What's in the Box

The DS-3E0526P-E ships ready to deploy: the switch itself includes integrated mounting ears for 19-inch rack installation. Consult the manufacturer datasheet for complete package contents and any optional accessories.

Frequently Asked Questions

Q: Can the DS-3E0526P-E power cameras that draw more than 30 W each?

A: No. The switch is rated for maximum 30 W per port under 802.3at. High-draw devices (panoramic sensors, certain PTZ models, or edge analytics boxes) may exceed this and require a dedicated power injector or powered device.

Q: Is the DS-3E0526P-E suitable for outdoor installations?

A: The switch itself is rated for indoor operation (0°C to 45°C). The 6 kV surge protection defends against lightning spikes, so it works well in outdoor-mounted enclosures or equipment rooms at building perimeters. Mount it in a weatherproof IP65+ enclosure if exposed to rain or direct sunlight.

Q: Does the DS-3E0526P-E support VLAN or QoS configuration?

A: No. It is unmanaged and has no configuration interface. If you need traffic segmentation, per-port traffic shaping, or VLAN tagging, choose a managed PoE switch or insert a managed switch upstream.

Q: What is the maximum cable run length from the switch to a PoE camera?

A: Gigabit Ethernet over Cat5e or Cat6 supports up to 100 meters (328 feet) per IEEE 802.3. Power delivery via PoE experiences roughly 5–10% voltage drop over long runs, so cameras near the 100 m limit may receive slightly less than their rated input voltage. Use Cat6 or higher for runs over 70 meters.

Q: Can I use the SFP fiber port while the RJ45 uplink is active?

A: The RJ45 and SFP ports are separate uplinks. You can use both simultaneously for load balancing or one as a failover. Consult your network architecture to determine the best topology.

Q: Is firmware upgradeable on the DS-3E0526P-E?

A: As an unmanaged switch, it does not have user-accessible firmware updates. Any updates are handled by the manufacturer and may not be available for this model.

Eden Phillips

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-3E0526P-E (often searched as DS 3E0526P E) strikes a critical balance between simplicity and capability. Its unmanaged architecture eliminates misconfiguration risk entirely—no VLAN mistakes, no accidental port blocking, no firmware bugs. That matters enormously on high-volume rollouts across 50+ sites where consistency and rapid deployment trump granular traffic control. The 225 W PoE budget comfortably powers 7–8 high-draw cameras at 30 W each, though real-world installations must account for 5–10% cable voltage drop and device variance during commissioning.

Technical Highlights:

• 52 Gbps Switching Capacity at 38.69 Mpps: High-throughput fabric prevents bottlenecks even under peak simultaneous recording. Multi-camera alarm triggers (all cameras recording at once) maintain consistent frame delivery without packet loss.
• 6 kV Surge Protection: Meaningful defense against lightning-induced transients on outdoor runs. Without this, a single strike can propagate through the power and data lines, burning out cameras and the switch itself. Worth the protection on perimeter systems.
• 8 K MAC Address Table & 4.1 Mbit Buffer: Supports stable operation with 30+ concurrent devices; the large buffer absorbs burst traffic from multiple high-resolution feeds without frame drops.
• Dual Uplink (RJ45 + SFP): Flexibility to migrate from copper to fiber backbone later without hardware replacement. SFP fiber enables longer trunk runs (2+ km on single-mode) if your campus grows.
• Idle Power 25 W / Max 250 W: Year-round 24/7 operation costs roughly $22–$26 in electricity. Practical for remote, unattended sites where power efficiency extends UPS runtime and reduces cooling load in enclosed cabinets.

Deployment Considerations:

• Unmanaged design means no QoS, VLAN, or port mirroring. If network security requires traffic segmentation or intrusion detection via port mirroring, this switch cannot deliver it—pair with a managed upstream device or choose a managed variant.
• Operating temperature range (0°C to 45°C) is limited to indoor or climate-controlled enclosures. For harsh outdoor environments, mount in a weatherproof cabinet or data closet and use SFP fiber over long outdoor runs to avoid temperature stress.
• Real-world power planning: 7–8 cameras at 30 W each consume the budget rapidly. Count all PoE devices (cameras, access readers, intercoms, analytics boxes) before ordering. If total exceeds 225 W, budget for a second switch or verify that non-camera devices are PoE-optional (can be powered separately).

For organizations prioritizing rapid, error-free deployment of surveillance infrastructure across multiple sites, this switch delivers exceptional reliability and practical value. It is not a replacement for managed switches in complex networks requiring VLAN or QoS, but for straightforward camera-and-reader installations, the zero-configuration design eliminates a major class of field failures.
