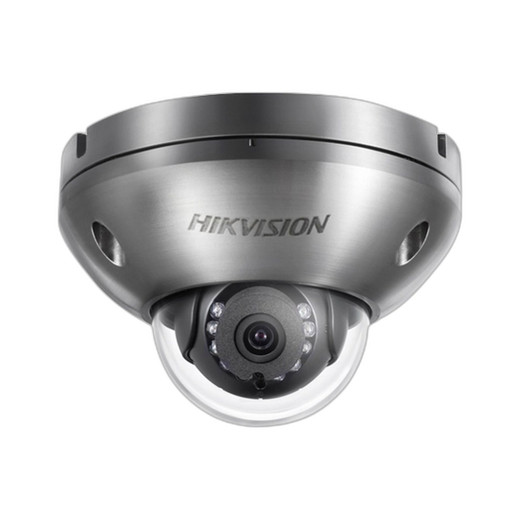

Hikvision DS-2XC6142FWD-IS-4mm 4MP Outdoor Anti-Corrosion Fixed Dome IP Camera
Hikvision DS-2XC6142FWD-IS-4mm 4MP Outdoor Anti-Corrosion Fixed Dome IP Camera
Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: DS-2XC6142FWD-IS-4mm
UPC: 842571115994
Condition: New
Availability: Backorder Available — Contact for ETA
Warranty 5-year warranty
Write a Review 47% OFF

Hikvision DS-2XC6142FWD-IS-4mm 4MP Outdoor Anti-Corrosion Fixed Dome IP Camera

The Hikvision DS-2XC6142FWD-IS-4mm 4 MP Anti-Corrosion Network Dome Camera is a specialized surveillance solution designed to thrive in challenging en…

Add to cart for sale price
$1,722.00
$912.99
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Certified experts for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Bryan

Talk to Bryan

200+ hrs training • U.S - based

Certified Expert • 877-277-7147

Live Chat Call

Hikvision DS-2XC6142FWD-IS-4mm 4MP Outdoor Anti-Corrosion Fixed Dome IP Camera

$1,722.00
$912.99
Add to Cart

Your recommended setup

Review items below — quantities update pricing automatically.

Item Qty Status Price
Optional Add-Ons recommended
Services optional

Bundle Summary

Bundle Subtotal: $0.00
Optional Add-Ons: $0.00
Services: $0.00
Total: $0.00

Overview

SKU: DS-2XC6142FWD-IS-4mm
UPC: 842571115994
Condition: New
Availability: Backorder Available — Contact for ETA
Warranty 5-year warranty
Description

The Hikvision DS-2XC6142FWD-IS-4mm 4 MP Anti-Corrosion Network Dome Camera is a specialized surveillance solution designed to thrive in challenging environments. This camera stands out with its robust construction and advanced imaging capabilities, making it a reliable choice for comprehensive security monitoring.

Key Features:

  • The camera is equipped with a 1/3" Progressive Scan CMOS sensor, delivering high-quality imagery with a maximum resolution of 2560 × 1440.
  • It features a 4mm fixed lens offering a horizontal field of view of 83° and a vertical field of view of 44.7°, ensuring broad coverage.
  • The camera's anti-corrosion standards (WF-2, NEMA 4X, C5-M) and IP67 rating attest to its resilience in corrosive and outdoor environments.
  • With 120dB Wide Dynamic Range (WDR) and 3D Digital Noise Reduction (DNR), the camera ensures clarity in varied lighting conditions.
  • It supports H.265+/H.265/H.264+/H.264 compression, optimizing storage and bandwidth use without compromising video quality.
  • Enhanced security features include six behavior analyses, two exception detections, and one recognition feature, making it adept at recognizing potential security threats.
  • The camera is designed for easy installation with adjustable pan, tilt, and rotate options for the lens.

Compatibility:

  • This camera's network interface is a self-adaptive Ethernet port, supporting common network protocols like TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, making it compatible with a wide range of network infrastructures.
  • The camera's power options include both 12 V DC and PoE (Power over Ethernet), providing flexibility in installation and ensuring compatibility with various power setups.

Specifications:

  • Chip Inch Size: 1/3 inch, supporting both color and monochrome modes.
  • Sensitivity: 0 to 0.01 lux, ensuring performance in low-light conditions.
  • Electronic Shutter range: 1s to 1/100,000s.
  • Operating Temperature: -30°C to +60°C (-22°F to +140°F), with an operating humidity of 0% to 95%.
  • Dimensions: 113mm x 77mm, with a weight of 1,680g.

Package Contents:

  • Hikvision DS-2XC6142FWD-IS-4mm Camera.
  • Mounting Accessories.
  • Installation Guide.
  • Warranty Information.
Expert Analysis
Specifications
Sensor Type: 1/3" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. Illumination: Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR;B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens Type: Fixed focal lens, 2.8 mm, 4 mm, and 6 mm optional
Focal Length & FOV: 2.8 mm, horizontal FOV 98.5°, vertical FOV 52.8°, diagonal FOV 116.2°;4 mm, horizontal FOV 78.8°, vertical FOV 40.5°, diagonal FOV 92.8°;6 mm, horizontal FOV 49.1°, vertical FOV 26.3°, diagonal FOV 57.2°
Lens Mount: M12
Aperture: F1.6
DORI: 2.8 mm, D: 54.6 m, O: 21.7 m, R: 10.9 m, I: 5.5 m;4 mm, D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m;6 mm, D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m
Supplement Light Type: IR
Supplement Light Range: Up to 15 m
Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360);60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream: 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream: H.265+/H.265/H.264+/H.264;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264
Video Bit Rate: 32 Kbps to 8 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main Profile
Scalable Video Coding (SVC: H.264 and H.265 encoding
Region Of Interest (ROI: 5 fixed regions for each stream
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface, ISAPI, ISUP 5.0
User/Host: Up to 32 users;3 levels: Administrator, Operator and User
Network Storage: NAS (NFS, SMB/CIFS), ANR
Client: iVMS-4200, Hik-Connect
Web Browser: Plug-in required live view: IE10, IE11;Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Wide Dynamic Range (WDR: 120 dB
Image Enhancement: BLC, HLC, 3D DNR, defog
Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB;*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Alarm: 1 alarm input, 1 alarm output
Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection;Scene change detection, unattended baggage detection, object removal detection
Power Type: PoE
Material: 316L and anti-corrosion coating
Dimension: Ø113 mm × 77.3 mm (4.45" × 3.04")
Package Dimension: 257 mm × 167 mm × 145 mm (10.12" × 6.57" × 5.71")
Weight: Approx. 1500 g (3.3 lb.)
With Package Weight: Approx. 1900 g (4.2 lb.)
Startup And Operating Conditions: -30°C to +60 °C (-22 °F to +140 °F). Humidity less than 95% (non-condensing)
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition
General Function: Heartbeat, password protection, privacy mask, watermark, IP address filter, mirror
EMC: FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B);CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013);RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015;IC: IC-VoC (ICES-003 Issue 7:2020);KC: KN 301489-
Safety: UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014;CB: IEC 62368-1:2014;BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015;LOA: SANS IEC60950-1
Environment Rating: CE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
Protection: IP67 (IEC 60529-2013)
Anti-Corrosion Protection: WF2, NEMA-4X;C5-M: 720H neutral salt spray, 480H water condensation; Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity; Interior environments: buildings or areas with almost perm
Product Type: Dome
Connectivity: Wired
Resolution: 4MP
Night Vision: IR
