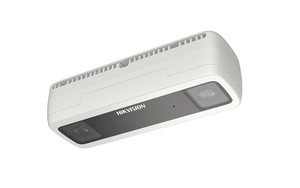

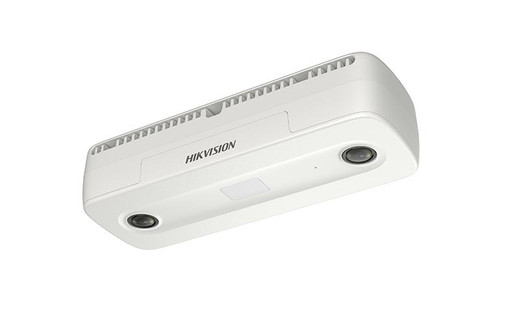

Hikvision DS-2CD6825G0/C-IS 2MP Dual-Lens People Counting Camera

Hikvision DS-2CD6825G0/C-IS 2MP Dual-Lens People Counting Camera

The Hikvision DS-2CD6825G0/C-IS is a specialized indoor IP camera engineered for accurate real-time people counting and crowd density analysis. Featuring dual high-precision lenses and advanced analytics, this 2MP camera delivers bi-directional foot traffic monitoring essential for retail operations, facility management, and security applications in shopping centers, corporate lobbies, and transit hubs.

Key Features

• Dual-lens design for accurate bi-directional people counting and entry/exit monitoring
• 2MP (1920 × 1080) 1/2.7" progressive scan CMOS sensor with 104.5° horizontal field of view
• Extreme low-light performance: 0.001 Lux (B&W) with IR illumination up to 6m (850nm)
• PoE-powered wired connectivity; compact form factor (168 × 61 × 41mm)
• Advanced video compression: H.265+/H.265/H.264+ for optimized bandwidth and storage
• People counting with height-based target filtering and automated daily/weekly/monthly email reporting
• IP67-rated (-V model) for enhanced durability in demanding environments

Technical Highlights

The camera combines dual 2mm fixed focal lenses with an F2.25 aperture to capture wide-angle coverage (112° diagonal FOV) while maintaining analytical precision. The 1/2.7" CMOS sensor achieves exceptional low-light performance, delivering 0.005 Lux color and 0.001 Lux B&W sensitivity with automatic IR cut filter switching for day/night operation. Video is encoded at up to 30fps (1920×1080) in H.264 or H.265, with configurable bit rates from 32 Kbps to 16 Mbps, enabling flexible bandwidth management across distributed deployments.

Advanced image processing includes digital WDR, 3D DNR, HLC, BLC, and defog capabilities. The built-in microphone and audio I/O support multi-format compression (G.711, G.722.1, G.726, MP2L2, PCM). Security features encompass HTTPS encryption, 802.1X authentication, IP address filtering, WSSE/digest authentication for ONVIF, and watermarking. The camera supports up to 32 simultaneous users across three privilege levels (Administrator, Operator, User).

People Counting & Analytics

The integrated people counting engine separately tracks entries and exits with support for real-time uploading or statistical cycle batching. Height-based target filtering minimizes false counts from moving objects. Automated reporting functionality sends daily, weekly, monthly, or annual email summaries to designated recipients, supporting data-driven decisions on staffing, capacity planning, and retail conversion analysis.

Connectivity & Integration

The camera features 1×RJ45 10M/100M Ethernet port (M12 aviation plug option available). It supports ONVIF Profile S/G, Hikvision ISAPI/SDK, and Ehome 5.0 protocols. Compatible clients include iVMS-4200 and Hik-Connect. Network protocols include TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP, NTP, SNMP, IPv6, and Bonjour.

Applications

Ideal for retail foot traffic analysis, shopping mall occupancy management, office lobby security monitoring, and transportation hub crowd assessment. The people counting analytics support capacity planning, marketing effectiveness measurement, and operational optimization across commercial and institutional facilities.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-2CD6825G0/C-IS addresses a critical gap in facility analytics by combining reliable people counting with industrial-grade surveillance. The dual-lens architecture is superior to software-based counting algorithms, providing hardware-level accuracy resistant to occlusion and perspective distortion. The 0.001 Lux B&W sensitivity and 6m IR range ensure consistent counting performance in poorly lit environments—a common challenge in basements, corridors, and evening retail scenarios.

H.265+ codec efficiency reduces storage costs by 30-50% versus H.264 at equivalent quality, particularly valuable for continuous 24/7 counting deployments. The height-filtering feature mitigates common false-positive issues from strollers, packages, and low-mounted signage. For enterprises deploying multi-location analytics platforms, the standardized ONVIF/ISAPI support enables vendor-neutral integration with third-party VMS systems and business intelligence tools.

IP67 rating on the -V variant provides critical durability for high-traffic areas, kitchens, and facilities requiring washdown protocols.
