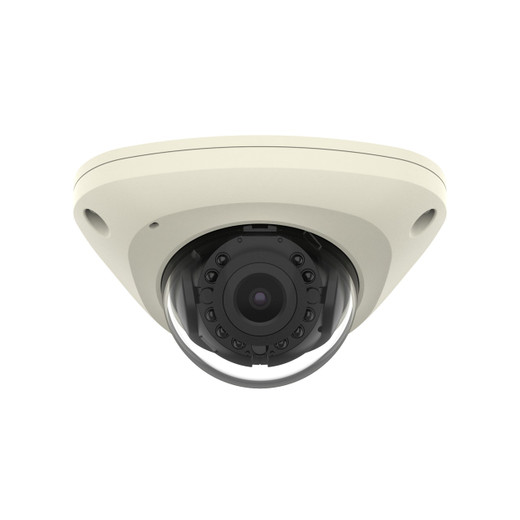

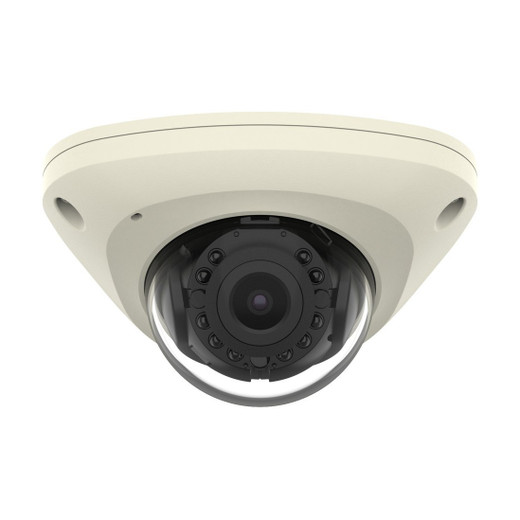

Hanwha XNV-6022R 2MP Vandal Dome IP Camera

Hanwha XNV-6022R 2MP Vandal Dome IP Camera

The Hanwha XNV-6022R is a professional-grade 2MP dome camera engineered for demanding indoor and outdoor surveillance applications. Built with IK10 vandal resistance and IP66 weatherproofing, this camera delivers reliable 1080p video capture in environments where durability and performance are non-negotiable. The combination of wide dynamic range (WDR) technology, advanced day/night imaging, and intelligent video analytics makes it an excellent choice for facilities requiring robust, long-term security coverage.

Key Features

• 2MP (1920x1080) CMOS sensor with 30fps capture
• 150dB Wide Dynamic Range (WDR) for clear imaging across extreme lighting conditions
• Day/night capability with automatic ICR switching and IR illumination up to 15 meters
• IP66 rated dome with IK10 vandal resistance and NEMA 4X certification
• PoE (IEEE 802.3af, Class 3) power delivery—simplified installation, max 6.70W consumption
• H.265/H.264/MJPEG video compression with WiseStream II smart codec support
• Fixed 3.6mm lens with 94.8° horizontal field of view and F2.0 aperture
• 8-point polygonal motion detection zones with 32-zone privacy masking
• Integrated audio (selectable mic-in/line-in/built-in microphone) and line output
• microSD/SDHC/SDXC card recording with NAS backup support
• ±5° pan, 0–67° tilt, ±90° rotation with digital image stabilization

Technical Specifications

This camera operates reliably across -30°C to +55°C (-22°F to +131°F), making it suitable for both temperate and extreme climates. The 1024MB RAM and 256MB flash support simultaneous multi-profile streaming (up to 10 profiles) to 20 unicast users. Advanced image processing includes defog, lens distortion correction (LDC), electronic shutter anti-flicker, and adaptive white balance modes. Audio compression uses G.711 u-law or G.726 ADPCM at selectable bitrates (16–40 Kbps), while video streams support both CBR and VBR bitrate control to optimize bandwidth usage.

Connectivity is comprehensive: Gigabit Ethernet (10/100BASE-T), Micro USB for installation, IPv4/IPv6 dual-stack support, and protocols including ONVIF Profile S/G/T, RTSP, HTTP/HTTPS, SMTP, and SNMP v1/v2c/v3. Security features encompass HTTPS/SSL encryption, digest authentication, IP filtering, 802.1X (EAP-TLS/EAP-LEAP), and user access logging. The camera measures 98.9 × 52.0 × 100.0 mm and weighs 295g (0.65 lb) in ivory aluminum construction.

Analytics & Intelligence

The XNV-6022R includes sophisticated video analytics: motion detection, defocus detection, directional detection, fog detection, face detection, digital auto-tracking, appear/disappear, enter/exit, loitering detection, tampering alerts, virtual line crossing, and audio detection with sound classification. Alarm events trigger file upload (via email/FTP), notifications, and automated SD/NAS recording.

Applications

Ideal for retail environments, office buildings, parking facilities, and industrial sites requiring weatherproof, vandal-resistant surveillance. The robust feature set and intelligent analytics support loss prevention, access control verification, and behavioral monitoring in diverse commercial and institutional settings.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNV-6022R represents Hanwha's commitment to durability and functionality in mid-range surveillance. The 150dB WDR performance ensures usable video in high-contrast scenes—critical for outdoor deployments. PoE simplicity reduces infrastructure cost, while H.265 compression maximizes storage efficiency.

The fixed 3.6mm lens provides a practical 94.8° horizontal view suitable for general-area monitoring without the complexity of motorized zoom. Advanced analytics (face detection, line-crossing, loitering) enable proactive security workflows, though users should validate recognition distance thresholds for their specific application (35.3m at 25 PPM for detect-level performance). The camera's compact form factor and -30°C to +55°C operating range make it resilient for diverse deployment scenarios.

IP66/IK10 ratings eliminate concerns about weather ingress or physical tampering in unsecured locations.
