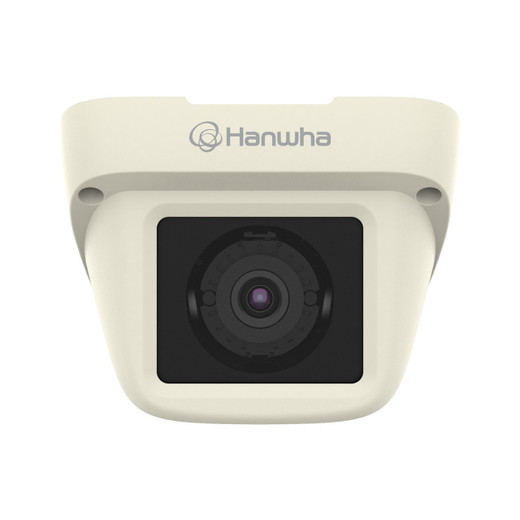

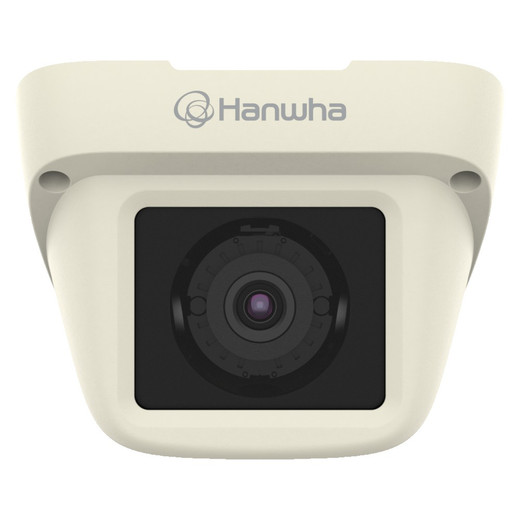

Hanwha XNV-6013M 2MP Vandal Dome IP Camera

Hanwha XNV-6013M 2MP Vandal Dome IP Camera

The Hanwha XNV-6013M is a robust 2MP mobile surveillance dome camera engineered for deployment in challenging environments where traditional network infrastructure is unavailable or unreliable. Built with IP67/NEMA 4X and IK10 vandal ratings, this camera delivers dependable monitoring for remote sites, temporary installations, and high-risk locations requiring resilient security solutions.

Key Features

• 2MP (1920×1080) CMOS imaging with 30fps native frame rate
• 150dB Wide Dynamic Range (WDR) for balanced images in mixed lighting
• Day/Night functionality with 0.04 Lux minimum illumination (F2.0)
• IP67/NEMA 4X and IK10 vandal-resistant construction
• PoE powered (IEEE 802.3af, Class 3) with compact 7.2W maximum consumption
• H.265/H.264/MJPEG video compression for bandwidth optimization
• M12 Ethernet connectivity for reliable wired deployment
• MicroSD/SDHC/SDXC edge storage (up to 256GB)
• Comprehensive analytics: motion detection, face detection, tampering, loitering, virtual line crossing
• Audio support with bidirectional communication (mic/line in and line out)

Technical Highlights

The XNV-6013M features a 2.8mm fixed focal lens with a 107.4° horizontal field of view, delivering broad coverage in compact spaces. Its 1/2.8" CMOS sensor captures fine detail across diverse lighting conditions, enhanced by electronic image stabilization via built-in gyro sensor and optical defog filtering for environmental reliability. The camera supports 10 simultaneous streaming profiles with unicast and multicast options, enabling flexible multi-user access and scalable deployment across enterprise VMS platforms.

Advanced backlight compensation includes BLC, HLC, and WDR modes, while SSNRV digital noise reduction maintains image clarity in low-light scenarios. Motion detection operates across 8 selectable polygonal zones, with privacy masking available in 32 zones using customizable colors or mosaic blur. The camera integrates directional detection, fog detection, defocus detection, and digital auto-tracking for intelligent, context-aware monitoring.

Security & Integration

Enterprise-grade security features include HTTPS/SSL encryption, 802.1X authentication (EAP-TLS, EAP-LEAP), IP address filtering, and comprehensive access logging. The camera supports ONVIF Profile S/G, Wisenet open platform APIs, and HTTP-based SUNAPI integration, ensuring compatibility with leading VMS and third-party systems. IPv4/IPv6 dual-stack networking with DDNS, QoS, and SNMPv1/v2c/v3 management enables seamless integration into modern IP surveillance infrastructures.

Applications

Ideal for retail locations, parking facilities, industrial sites, transit hubs, and outdoor perimeters requiring weatherproof, tamper-resistant surveillance. The robust construction withstands harsh environmental conditions (-40°C to +60°C operating range) and high-impact scenarios common in public-facing installations.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNV-6013M balances cost-effective 2MP resolution with enterprise-class durability, making it a practical choice for organizations deploying vandal-prone environments. The 150dB WDR capability ensures usable imagery across dramatic lighting transitions, while comprehensive analytics reduce reliance on continuous monitoring. PoE power simplicity and microSD edge storage provide operational resilience in remote or unstable network conditions.

For integrators, ONVIF compliance and Wisenet platform access streamline deployment across heterogeneous VMS ecosystems. The compact form factor (103.7×72.3×126.8mm) and 478g weight simplify mounting on poles, walls, or ceiling surfaces where space is constrained.
