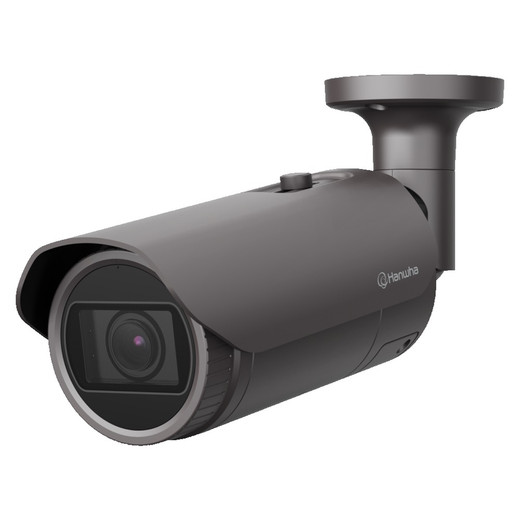

Hanwha XNO-L6080R 2MP Outdoor Bullet IP Camera

Hanwha XNO-L6080R 2MP Outdoor Bullet IP Camera

The Hanwha XNO-L6080R is a purpose-built 2MP outdoor bullet camera for facilities where coverage flexibility, environmental durability, and all-hours visibility matter. Its motorized varifocal lens, IR illumination, and Wide Dynamic Range processing deliver reliable perimeter surveillance in rain, dust, and variable lighting—without requiring repositioning hardware or separate night-vision equipment.

Key Features

• 2MP Full HD resolution at 60fps: Delivers frame rate 2x faster than standard 30fps bullets, meaning smoother motion capture for vehicle gate analysis and incident review. The 1/2.8" CMOS sensor captures fine detail needed for facial recognition or license-plate verification at moderate distances.
• Motorized varifocal 3.2–10mm lens with DC auto iris: Adjust field of view from 109° (wide, perimeter sweeps) to 33.2° (tele, gate entry detail) without climbing a ladder or remounting. The DC auto iris compensates for changing daylight, keeping exposure consistent as clouds pass or sunlight shifts across the scene.
• 120dB Wide Dynamic Range with BLC and HLC: Handles backlit entrances (bright sunlight behind a person) and high-contrast loading docks (dark interior, bright exterior) in a single frame. Without WDR, you'd lose either the face or the background; 120dB lets you see both.
• 30m integrated IR illumination: Night vision activates automatically; no external spotlights needed. Typical warehouses and perimeters stay visible in total darkness out to roughly 100 feet—adequate for motion detection and rough identification, though facial detail requires either closer proximity or supplementary lighting.
• IP66 weather protection and IK10 vandal rating: Direct rain and dust don't penetrate; IK10 (equivalent to a 5kg steel ball dropped from 1.25m) absorbs impact without cracking the lens or housing. Skip this camera only if you need full submersion (IP67+) or salt-spray corrosion resistance (IP69K).
• PoE power at 5W typical consumption: Runs off standard 802.3af PoE without drawing down your switch's power budget. A 48-port PoE switch can easily supply 40+ of these cameras, avoiding the cost and management overhead of separate power supplies.
• H.265 and H.264 codec support (60fps) plus MJPEG (capped at 30fps): H.265 compresses video roughly 40–60% more efficiently than H.264, cutting storage costs in half on 24/7 multi-camera systems. Important note: if you need MJPEG for compatibility with legacy VMS systems, frame rate drops to 30fps.
• WiseStream II smart codec optimization: Automatically reduces bitrate during low-motion periods (empty parking lot at night) and boosts it during events, stretching your storage retention or allowing longer edge-recording windows on microSD cards.
• microSD/SDHC/SDXC edge storage up to 256GB: Record directly to onboard storage, reducing dependency on centralized NVR bandwidth or providing failover if network drops. A 256GB card at H.265 typically holds 24–48 hours of continuous recording, depending on scene complexity.
• 8-zone motion detection and defocus/tampering analytics: Mask off sky or reflective surfaces that trigger false alarms; trigger alerts only in zones you care about. Defocus and tampering detection catch lens fogging or intentional obstruction, alerting operators before hours of footage become unusable.
• ONVIF Profile S/G compliance and dual streaming: Integrates with mainstream NVR platforms and IP camera management systems. Support for up to 20 concurrent unicast/multicast users across five independent profiles means multiple operators and analytics engines can stream simultaneously without performance loss.
• 802.1X authentication and HTTPS/SSL encryption: Protects live feeds and recorded data from unauthorized access. In regulated environments (finance, healthcare, government), this is often non-negotiable.

Integration & Compatibility

The XNO-L6080R (often searched as XNO L6080R) supports ONVIF Profile S and G standards, enabling integration with Milestone XProtect, Genetec Security Center, and other ONVIF-certified VMS platforms. Event-driven alerting via HTTP callbacks or MQTT simplifies connection to third-party automation and incident-response systems. Private polygonal privacy masking (32 zones with color or mosaic overlay) addresses GDPR and operational discretion in mixed-use facilities.

When to Choose a Different Model

If you need higher resolution (4MP or 5MP) for extended-range facial recognition, consider a higher-megapixel variant in the same Hanwha IP camera family. If your application requires panoramic or multi-sensor coverage, a different form factor may be more efficient. For indoor-only deployments, an indoor-rated dome often offers better aesthetics and easier installation. If your network has strict bandwidth caps and you cannot rely on H.265, confirm codec support with your VMS vendor before committing.

Deployment Context

This camera excels in mid-range perimeter surveillance: parking lots, building entrances, fence lines, loading docks, and utility access points. The 60fps capability sets it apart for traffic monitoring and detailed motion analysis, while the motorized optics eliminate the need to re-aim or swap lenses when coverage priorities shift. Pair it with PoE switch infrastructure planning guidance to validate power budget, and refer to edge storage and retention planning to size microSD cards or central NVR capacity appropriately.

Frequently Asked Questions

Q: What is the maximum IR range on the XNO-L6080R?

A: 30 meters (approximately 98 feet) with integrated IR LEDs. At this distance, you will achieve motion detection and rough identification in total darkness; facial detail and license-plate legibility typically require closer proximity or supplementary lighting.

Q: Does the XNO-L6080R support 60fps at all resolutions and codecs?

A: Yes for H.265 and H.264 at Full HD 1080p (2MP). MJPEG is capped at 30fps, so if your VMS or edge recorder requires MJPEG, frame rate will drop. Confirm codec requirements with your platform before deployment.

Q: Can I adjust the lens field of view after installation?

A: Yes. The motorized varifocal lens ranges from 3.2–10mm, covering 109° (wide) to 33.2° (tele) without physical repositioning. Adjust via the management interface or compatible mobile app.

Q: How much bandwidth does the XNO-L6080R consume on a 24/7 recording schedule?

A: Bitrate depends on codec, frame rate, scene complexity, and WiseStream II optimization. H.265 at 60fps in a typical outdoor scene (parking lot, fence) typically ranges 1.5–3 Mbps continuous; H.264 will be roughly double. WiseStream II adapts dynamically, so low-motion periods consume significantly less.

Q: Is the XNO-L6080R compliant with any government or export standards?

A: No evidence in the datasheet indicates NDAA Section 889 compliance, TAA status, or FIPS certification. Contact the manufacturer directly if your procurement requires these certifications.

Q: What is the power consumption?

A: Typical 5W via PoE (IEEE 802.3af). This low draw means standard PoE infrastructure can power many units simultaneously without expensive switch upgrades.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNO-L6080R hits a practical sweet spot for outdoor 24/7 surveillance where mid-range resolution, flexible optics, and modest power draw matter more than megapixel count. The 60fps capability is the real differentiator here—standard outdoor bullets max out at 30fps, which means motion artifacts and ghosting on fast-moving subjects (vehicles, personnel). At 60fps Full HD, you get smooth vehicle-gate sequences and clearer incident review footage, a tangible advantage in transportation and logistics environments.

Technical Highlights:

• H.265 codec at 60fps: Cuts storage bitrate roughly 40–60% versus H.264, directly extending edge-recording retention on microSD or reducing NVR disk consumption across a 20+ camera system. WiseStream II layered on top adapts compression on the fly, so you don't waste bits on static scenes.
• Motorized 3.2–10mm varifocal plus 120dB WDR: Two operational advantages in one: adjust field of view after installation (no ladder work), and handle backlit loading docks or bright-dark perimeter transitions without rebalancing exposure. The DC auto iris handles daylight shifts automatically.
• 5W typical PoE draw: Low enough that a 48-port 802.3af switch can reliably power 40+ units without thermal stress or budget surprises. Simplifies infrastructure significantly versus cameras that demand PoE+ or external supplies.
• 30m IR with 0.03Lux color / 0Lux B/W sensitivity: Night vision is built-in and requires no external illuminators. At 30 meters in pitch black, expect monochrome motion detection and rough ID; closer than 10 meters, color and detail emerge. Plan lighting accordingly for facial recognition in unmanned facilities.

Deployment Considerations:

• Frame-rate codec mismatch: If your VMS or edge recorder mandates MJPEG (older integrations, specialized analytics), be aware that MJPEG is hard-capped at 30fps. Test codec compatibility in pre-deployment pilots to avoid surprises at commission time.
• ONVIF compliance, but not all profiles: Supports S and G, which covers most mainstream NVRs and ONVIF-certified platforms. If you're running proprietary closed-loop systems (non-ONVIF), confirm integration before purchase.
• MicroSD for edge storage is optional, not redundant: 256GB edge cards are useful for failover or extending retention, but they are not a substitute for centralized NVR backup in security-critical environments. Treat them as a convenience, not a primary archive.

Position the XNO-L6080R in perimeter and access-point surveillance where smooth motion capture, all-hours visibility, and operational flexibility justify the motorized lens cost over a fixed-lens 2MP alternative. It's a sound choice for warehouse gates, utility fences, and multi-building campuses where field-of-view adjustments avoid repositioning equipment mid-deployment.
