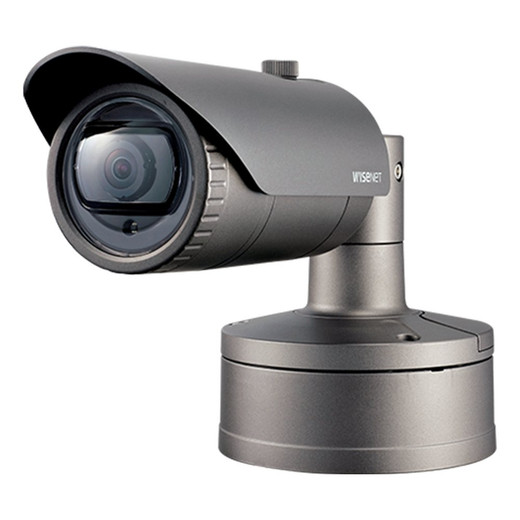

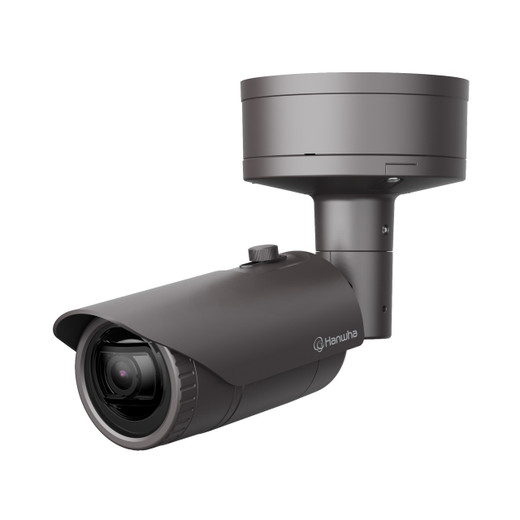

Hanwha XNO-6010R 2MP Outdoor Bullet IP Camera

Hanwha XNO-6010R 2MP Outdoor Bullet IP Camera

The Hanwha XNO-6010R is a professional-grade 2MP outdoor bullet camera engineered for 24/7 surveillance in demanding environments. Built with IP67/IP66 weatherproofing and IK10 vandal resistance, this camera delivers reliable performance across industrial, commercial, and critical infrastructure applications. Its compact aluminum housing and wide 139° horizontal field of view make it ideal for perimeter monitoring, entry points, and outdoor facility surveillance.

Key Features

• 2MP (1/2.8" CMOS) sensor with 2.4mm fixed focal length and F2.0 aperture
• 150dB Wide Dynamic Range (WDR) for challenging lighting environments
• Built-in IR illumination with 20m (65.6 ft) night vision range
• Auto day/night switching with ICR (Infrared Cut filter Removal)
• PoE (IEEE 802.3af Class 3) powered with minimal 8.8W DC consumption
• H.265/H.264/MJPEG multi-codec support with WiseStream II intelligent bitrate control
• Dual microSD/SDHC/SDXC card slots (up to 512GB total edge storage)
• IP67 rated; operating temperature range -30°C to +55°C

Advanced Imaging & Analytics

The XNO-6010R combines exceptional low-light sensitivity (0.055 lux in color; full IR capability at 0 lux) with sophisticated image processing. Backlight compensation modes include BLC, HLC, WDR, DWDR, and SSDR to handle extreme contrast scenes. Digital image stabilization, defog support, and lens distortion correction (LDC) ensure stable, clear video in adverse weather. The camera features 8-zone motion detection, 32-zone polygonal privacy masking, and built-in analytics including face detection, defocus detection, tampering alerts, virtual line crossing, loitering detection, and audio-based event triggers.

Connectivity & Integration

Full ONVIF Profile S/G/T compliance ensures seamless integration with third-party VMS platforms. The camera supports IPv4/IPv6, RTSP streaming (up to 20 unicast users or multicast), and 10 simultaneous streaming profiles. Secure access is enforced through HTTPS/SSL, digest authentication, 802.1X EAP, and IP filtering. Built-in alarm I/O (1 input, 1 output) enables integration with external sensors and relays. Edge recording to local microSD cards provides failsafe video retention independent of network connectivity.

Technical Specifications Highlight

Maximum frame rates reach 60fps (H.265/H.264) or 30fps (MJPEG) at 2MP resolution. The camera supports multiple bitrate control modes (CBR/VBR) and intelligent codec selection across 5 user-defined ROI areas. Audio I/O includes selectable mic/line input with 2.5VDC supply and line-level output. Extensive protocol support encompasses TCP/IP, UDP/IP, RTCP, NTP, DHCP, FTP, SMTP, DNS, DDNS, QoS, and SNMPv1/v2c/v3.

Applications

Ideal for logistics centers, business parks, industrial yards, warehouse perimeters, toll plazas, and critical infrastructure protection. The rugged construction and advanced WDR technology excel in mixed outdoor lighting conditions where bright skies and shadowed areas coexist.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNO-6010R represents Hanwha's commitment to cost-effective enterprise surveillance. Its 150dB WDR capability and fixed-focus 2.4mm lens deliver strong performance in typical outdoor scenarios without the complexity of motorized optics. PoE Class 3 operation minimizes infrastructure requirements, while dual microSD slots provide on-camera recording resilience.

The robust analytics engine—including defocus detection and digital auto-tracking—enables proactive incident response. Best suited for sites requiring weatherproof coverage with moderate detail capture and where edge storage backup is valuable. Integration via ONVIF ensures future platform flexibility.
