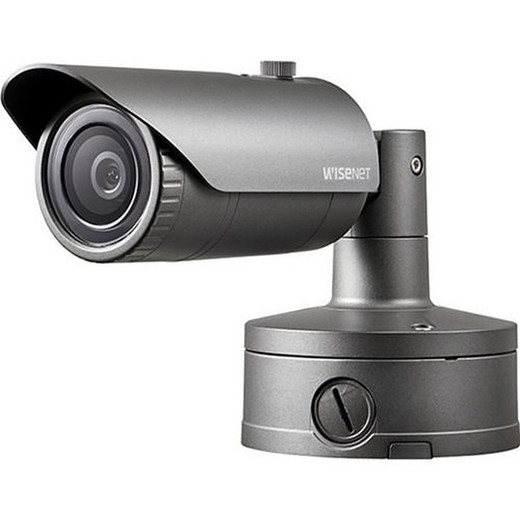

Hanwha XNO-8030R 5MP Outdoor PoE Bullet Camera

Hanwha XNO-8030R 5MP Outdoor PoE Bullet Camera

The Hanwha XNO-8030R is a professional-grade 5MP outdoor bullet camera engineered for reliable day/night surveillance in demanding environments. Built on a 1/1.8" 6MP CMOS sensor, this weatherproof PoE camera delivers sharp, detailed imagery across a wide 77.9° horizontal field of view. Ideal for commercial perimeters, parking facilities, and critical infrastructure, the XNO-8030R combines robust durability with intelligent video analytics to provide comprehensive security coverage in any lighting condition.

Key Features

• 5MP resolution with 30fps video at H.265/H.264 or MJPEG
• 30m IR illumination with auto day/night (ICR) switching
• 120dB Wide Dynamic Range (WDR) for balanced exposure in mixed lighting
• IP67/IP66 weatherproof and IK10 vandal-resistant design
• PoE (IEEE 802.3af Class 3) for simplified single-cable installation
• Dual microSD/SDHC/SDXC slots supporting up to 512GB edge storage
• Advanced analytics: motion detection, line crossing, face detection, digital auto-tracking
• Dual alarm I/O with FTP/email notifications and event-triggered NAS recording
• ONVIF Profile S/G/T compliance with Wisenet open platform support

Technical Specifications

The XNO-8030R features a fixed 4.6mm focal length with F1.6 maximum aperture, delivering 0.16 Lux color sensitivity and 0 Lux B/W operation with IR. Video compression options include H.265, H.264 (Main/Baseline/High profiles), and MJPEG, with bitrate control via CBR/VBR modes. Smart codec functionality with WiseStream II reduces bandwidth consumption by up to 50% in user-defined regions. The camera supports multiple concurrent streams (up to 10 profiles) for flexible client connectivity.

Imaging enhancements include SSNR V digital noise reduction, digital image stabilization, automatic defog, lens distortion correction (LDC), and advanced backlight compensation (BLC, HLC, DWDR, SSDR). Electronic shutter speed ranges from 2 to 1/12,000 seconds with anti-flicker modes. Video rotation options include flip, mirror, and 90°/270° hallway view.

Audio input accepts microphone or line-level signals (2K Ω impedance, 2.5VDC supply) with G.711/G.726 compression, while line-level audio output supports external monitoring. The camera operates across -30°C to +55°C (-22°F to +131°F) and draws maximum 10.3W via PoE or 9.3W via 12VDC auxiliary power.

Security & Connectivity

Integrated security includes HTTPS (SSL/TLS), 802.1X EAP authentication, IP address filtering, and comprehensive user access logging. Network protocols encompass IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, NTP, DHCP, DDNS, SNMPv1/v2c/v3, and multicast streaming. The camera supports 20 unicast users simultaneously and is compatible with SUNAPI (HTTP API) and Wisenet open platform ecosystems.

Applications

Deployable in parking structures, building exteriors, entry/exit points, and perimeter monitoring for commercial and government facilities. The 4.6mm fixed lens and 98.7° diagonal FOV suit mid-range coverage zones; intelligent analytics enable proactive threat detection, people counting, queue management, and heatmap reporting for operational intelligence.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNO-8030R represents a mature, feature-rich platform for organizations requiring reliable outdoor surveillance without premium pricing. Its 120dB WDR engine effectively handles high-contrast outdoor scenes—critical for perimeter and entrance monitoring where shadow and sunlight coexist. The 30m IR reach with IR LED coverage ensures usable B/W imagery in complete darkness, while the 0.16 Lux color sensitivity preserves details in twilight conditions.

Bandwidth efficiency is a practical strength: WiseStream II adaptive compression, multiple codec support, and dual microSD recording reduce backhaul demands and storage costs. The dual alarm I/O, coupled with rich analytics (motion, line crossing, appearance/disappearance, loitering detection), enables event-driven workflows without reliance on centralized NVR processing. Vandal-resistant IK10 rating and IP67 sealing make the camera suitable for vandalism-prone sites. ONVIF compliance ensures vendor flexibility, while Wisenet open platform integration provides proprietary deep learning analytics if desired. Typical ROI improves in 24/7 outdoor deployments where reliable low-light performance and local storage reduce infrastructure overhead.
