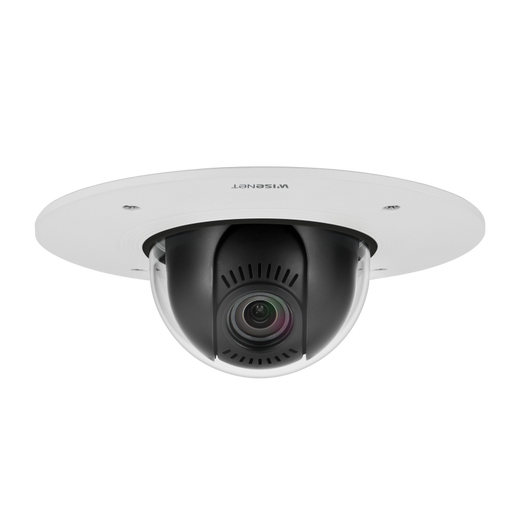

Hanwha XND-8081FZ 5MP Vandal-Resistant PTZ Dome

Hanwha XND-8081FZ 5MP Vandal-Resistant PTZ Dome IP Camera

The Hanwha XND-8081FZ is a professional-grade 5MP indoor PTZ dome camera engineered for high-security environments requiring discreet, durable surveillance. Combining flush-mount design with robust vandal resistance (IK10 rating), this camera delivers crisp 2560×1920 resolution imaging while maintaining a low-profile aesthetic ideal for financial institutions, corporate offices, and retail spaces. The camera's motorized 2.6x varifocal lens (3.6–9.4mm) with pan/tilt/rotate capability enables flexible coverage from a single mounting point, reducing deployment complexity and maximizing area monitoring efficiency.

Key Features

• 5MP 1/1.8" CMOS sensor with 30fps capture at H.265/H.264
• Motorized 2.6x varifocal lens with 102.5° to 38.7° horizontal FOV
• Pan/Tilt/Rotate: ±175°/0–85°/±175° with remote adjustment (200 cycles max)
• 120dB Wide Dynamic Range (WDR) plus HLC, BLC, and SSDR for extreme lighting
• IR night vision (0.007 Lux in B/W) with F1.2–F2.4 adaptive aperture
• IP52 dust/moisture protection and IK10 vandal resistance
• PoE (Class 3) powered with 5.40W typical consumption
• Dual microSD/SDHC/SDXC slots supporting 512GB edge storage

Imaging & Lighting Performance

The XND-8081FZ captures multiple resolution modes (up to 2560×1920) at 30fps, with intelligent video stabilization and defog support for challenging environmental conditions. Automatic day/night switching via ICR technology ensures seamless transitions, while manual focus control and lens distortion correction (LDC) optimize image clarity across varying distances. Exceptional low-light performance—0.07 Lux color and 0.007 Lux monochrome—enables reliable 24/7 monitoring without auxiliary lighting.

Advanced Analytics & Intelligence

Built-in analytics include motion detection (8 polygonal zones), face detection, directional detection, audio detection with sound classification, tamper detection, and virtual line crossing. Business intelligence features—people counting, queue management, and heatmap generation—support operational insights beyond security. Multiple alarm triggers (analytics, network disconnect, GPIO input) enable automated responses: email/FTP file uploads, event-triggered recording to SD or NAS, and audio clip playback.

Connectivity & Integration

Full ONVIF Profile S/G/T compliance ensures interoperability with third-party VMS platforms. HTTPS/SSL encryption, 802.1X authentication, digest login, and IP filtering provide multi-layered security. Dual-stream capability supports up to 10 concurrent video profiles with H.265, H.264, or MJPEG codec selection. Audio I/O (microphone/line-in and line-out) enable two-way communication. Operating range: –25°C to +60°C.

Applications

Ideal for secure indoor environments: bank vaults, server rooms, executive offices, high-traffic retail floors, and access-controlled areas where vandal resistance and aesthetic integration are critical. The PTZ capability eliminates blind spots, while edge storage provides autonomous recording during network outages.

Karl Wilson

The XND-8081FZ stands out for its integration of motorized PTZ functionality in a compact, vandal-resistant form factor. The 2.6x zoom range and wide-to-tele FOV shift (102.5° to 38.7°) provide effective coverage flexibility without external lenses. The 120dB WDR combined with F1.2 wide aperture and 0.007 Lux IR sensitivity addresses demanding lighting scenarios common in mixed-use facilities.

WiseStream II smart codec and H.265 compression optimize bandwidth for resource-constrained networks. The IK10 rating ensures durability in public spaces where deliberate or accidental impact is possible. For integrators, the ONVIF compatibility and Wisenet open API reduce vendor lock-in, while dual SD card slots provide cost-effective edge storage redundancy.

Typical PoE consumption (5.4W) fits Class 3 budgets, simplifying PoE switch planning. The IP52 rating and plenum-rated construction support both standard and restricted airspace installations.

Product Documentation

📄 Download Product Datasheet (PDF)
