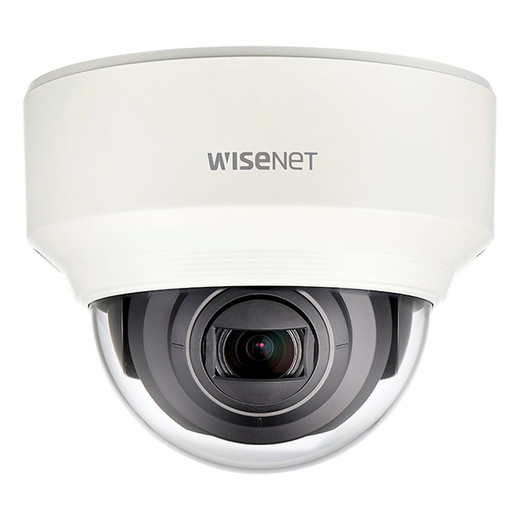

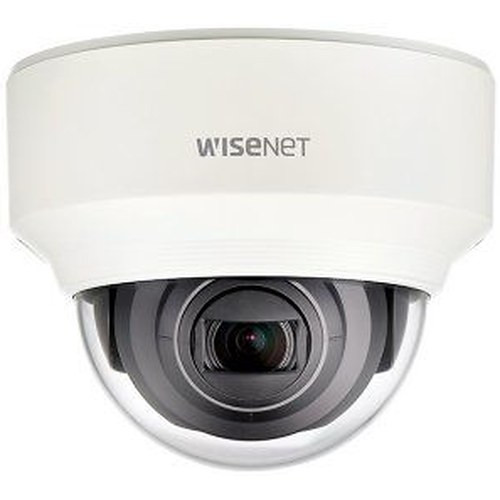

Hanwha XND-6080V 2MP WDR Varifocal Indoor Dome

Hanwha XND-6080V 2MP WDR Varifocal Indoor Dome IP Camera

The Hanwha XND-6080V is a professional-grade 2MP indoor dome camera engineered for organizations requiring flexible, high-performance surveillance in complex lighting environments. Featuring motorized varifocal optics, 150dB WDR, and advanced video analytics, it delivers reliable monitoring across corporate offices, retail spaces, financial institutions, and other demanding indoor environments.

Key Features

• 2MP 1/2.8" CMOS sensor with 30fps native recording (up to 60fps H.265/H.264)
• Motorized 2.8–12mm varifocal lens (4.3x zoom) with auto iris and simple focus
• 150dB Wide Dynamic Range (WDR) for balanced imaging in high-contrast scenes
• Pan/tilt/rotate capability (0–354° / 0–67° / 0–355°)
• Built-in IR night vision with 0.5m minimum object distance
• PoE (IEEE 802.3af Class 3) power delivery; max 6.5W consumption
• Dual microSD/SDHC/SDXC card slots (up to 512GB total edge storage)
• IK08 vandal rating for robust physical protection

Technical Highlights

Image Quality & Compression: The camera supports H.265, H.264, and MJPEG compression with adaptive bitrate control (CBR/VBR). WiseStream II smart codec and up to 10 simultaneous streaming profiles enable efficient bandwidth and storage management. Minimum illumination is 0.015 lux in both color and monochrome modes, ensuring low-light performance.

Optical Performance: The varifocal lens delivers a horizontal field of view ranging from 119.5° (wide) to 27.9° (telephoto), enabling both wide-area coverage and detailed close-range monitoring. Maximum aperture ranges F1.4 (wide) to F3.6 (telephoto), supporting operation in dim conditions. Advanced noise reduction (SSNR V), digital image stabilization, and lens distortion correction round out image enhancement capabilities.

Intelligent Analytics: Embedded analytics include motion detection (8 polygonal zones), directional detection, line crossing, loitering, enter/exit, appear/disappear, face detection, defocus detection, tampering, fog detection, and audio detection with sound classification. Digital auto-tracking supports dynamic scene monitoring.

Security & Connectivity: HTTPS/SSL, 802.1X EAP authentication, IP filtering, and digest login protect against unauthorized access. ONVIF Profile S/G/T compliance ensures integration with third-party VMS platforms. Full IPv4/IPv6 support with DHCP, DNS, DDNS, NTP, and multicast/unicast streaming (20 concurrent users) simplify deployment and scaling.

Privacy & Masking: 32 polygonal privacy zones with color options (grey, green, red, blue, black, white) and mosaic masking provide flexible PII protection. Video rotation (flip, mirror, hallway view at 90°/270°) accommodates varied installation orientations.

Operational Specifications

The XND-6080V operates reliably from –10°C to +55°C (–14°F to +131°F) and supports both CVBS (composite) and micro-USB video outputs for installation and troubleshooting. Alarm I/O (1 input / 1 output) trigger event-driven recording, FTP/email notifications, and external device handover. The ivory metal dome measures 140.8 × 113.0 mm and weighs 1.57 lb.

Applications

Ideal for corporate offices, retail environments, banks, warehouses, and public facilities where flexible focal length, excellent low-light sensitivity, and advanced video analytics are required. The motorized varifocal design minimizes the need for multiple fixed-lens cameras, reducing deployment complexity and cost.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XND-6080V balances versatility and cost-effectiveness. Its motorized varifocal lens eliminates the guesswork in scene composition—installers can adjust zoom and focus remotely or on-site without swapping hardware. The 150dB WDR is best-in-class for indoor environments with windows or mixed lighting, making it particularly valuable for retail and office deployments.

H.265 codec support with WiseStream II compression significantly reduces bandwidth and storage demands compared to H.264 or MJPEG alone, a critical advantage in large multi-camera systems. The 0.015 lux minimum illumination in both color and B/W modes ensures usable video even in near-darkness, though IR range (0.5m) is minimal—pair with external IR or ensure ambient light for dark areas.

ONVIF compatibility is a strong point for VMS flexibility, and the 32 privacy zones with polygonal masking meet strict data protection standards. The IK08 rating provides moderate vandal resistance suitable for most indoor spaces, though not for high-risk outdoor or extremely hostile environments. Edge storage up to 512GB via dual microSD slots adds resilience against network failures.

Power efficiency (6.5W max over PoE) and low heat output make it easy to deploy on standard PoE infrastructure. Organizations should note that this is a dome camera; while discreet, it is not covert, which is appropriate for legitimate surveillance and transparent security policies.
