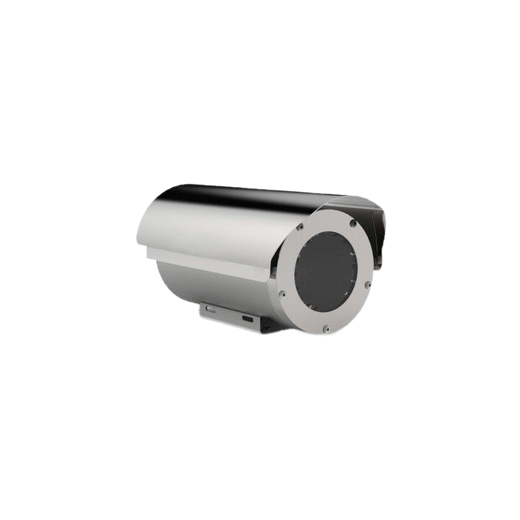

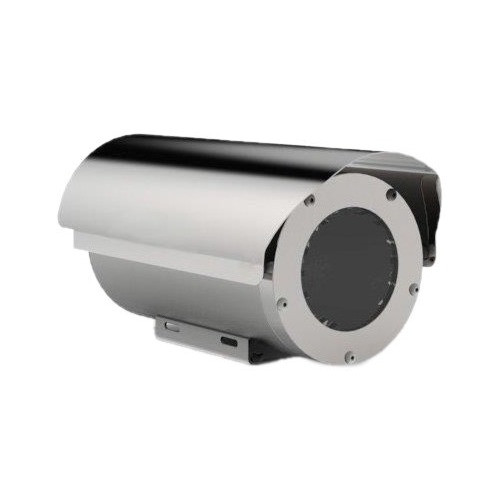

Hanwha TNO-X6320EPT0-Z Explosion-Proof Thermal Camera

Hanwha TNO-X6320EPT0-Z Explosion-Proof High Temperature Fixed Bullet Thermal IP Camera

The Hanwha TNO-X6320EPT0-Z is a specialized thermal IP camera engineered for deployment in hazardous and explosive environments. Combining certified explosion-proof construction with advanced thermal imaging, this camera delivers critical surveillance capabilities for oil and gas, chemical processing, petrochemical facilities, and other high-risk industrial operations where safety and continuous monitoring are non-negotiable.

Key Features

• Explosion-Proof Certified: Ex d IIC T4 (INMETRO), Class I Division 1 Groups B,C,D (cLCus), and CSA-certified for North American deployment
• 2MP Thermal Imaging: 1/2.8" 2.4MP CMOS sensor with 60fps frame rate for real-time monitoring
• Advanced Zoom Capability: 32x optical + 16x digital zoom (4.44–142.6mm lens) with 62.8° to 2.23° horizontal field of view
• High-Performance Optics: F1.6–F4.4 aperture with auto iris and auto focus for adaptive imaging
• IP66-Rated Enclosure: Fully sealed stainless steel 316L construction with toughened glass window; withstands harsh industrial washdown and moisture
• Wide Temperature Range: Operates reliably from –10°C to +55°C (–60°C to +60°C with certification variants)
• PoE Powered: IEEE 802.3af PoE, Class 3, drawing maximum 12.0W for simplified deployment
• Thermal Detection in Darkness: Extreme low-light performance for visibility through smoke and fog
• Smart Analytics: Intelligent video analytics, motion detection, day/night ICR, and Gyro DIS
• Advanced Image Processing: WDR (150dB dynamic range), HLC, SSDR, SSNR III, defog, and BLC
• Flexible Streaming: H.265, H.264, and MJPEG codecs with multiple simultaneous streams and WiseStream II efficiency
• Robust Protocols: ONVIF Profile S/G/T, RTSP, HTTPS, SNMP v1/v2c/v3, and DDNS for enterprise integration

Technical Specifications

• Resolution & Sensor: 2MP (1/2.8" 2.4MP CMOS), 60fps streaming
• Night Vision: Thermal imaging with minimum illumination of 0.05 Lux (color) and 0.005 Lux (B&W)
• Optical Design: 32x optical + 16x digital zoom, F1.6–F4.4 variable aperture
• Power & Connectivity: PoE (IEEE 802.3af), wired connection, ½" NPT cable entry
• Durability: IP66 rating, electro-polished 316L stainless steel body, A4 stainless fixings, toughened glass window
• Weight: Up to 8.54 kg (18.9 lb)

Ideal Applications

This camera is purpose-built for monitoring critical infrastructure in hazardous zones, including petrochemical facilities, refineries, chemical plants, offshore platforms, storage depots, and industrial equipment yards where explosive atmospheres may be present and temperatures can exceed normal ranges. Thermal imaging ensures early detection of hot spots, equipment faults, and unauthorized intrusion even in complete darkness or obscured conditions.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNO-X6320EPT0-Z represents a rare convergence of explosion-proof certification and thermal imaging in a single compact form factor. Its multi-jurisdictional approvals (INMETRO, cLCus, and CSA) make it suitable for global deployment in regulated hazardous areas. The 32x optical zoom combined with thermal sensing eliminates the need for multiple cameras in large industrial spaces, reducing installation complexity and cost.

The 150dB WDR and advanced noise reduction algorithms ensure thermal clarity even when scanning across surfaces with vastly different emissivities. PoE delivery simplifies power infrastructure in explosive environments where traditional AC wiring presents additional risk. For operators managing critical infrastructure, this camera's combination of safety certification, thermal sensitivity, and rugged construction provides defensible ROI in high-consequence monitoring scenarios.
