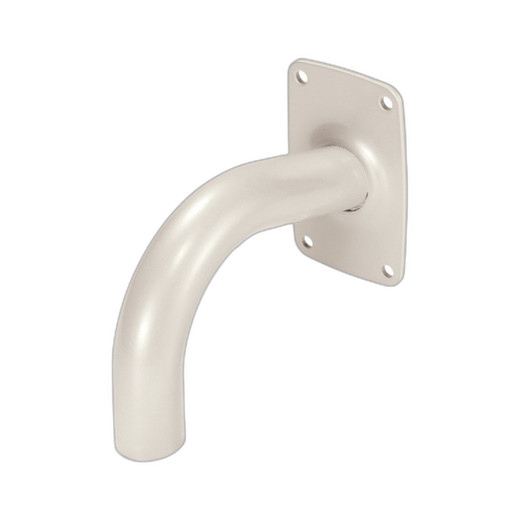

Hanwha SBP-300WM PTZ Wall Mount Gooseneck
The Hanwha SBP-300WM is a professional-grade wall-mounted accessory engineered to support PTZ (pan-tilt-zoom) camera deployment. Its flexible gooseneck design allows installers to position cameras at precise angles without the mechanical constraints of fixed mounts or ball-joint alternatives, making it practical for environments where coverage needs to be optimized without relocating wall anchors.
Key Features
- Gooseneck Design for Flexible Positioning: The articulating arm enables 360-degree rotational adjustment and multi-axis tilting, so you can aim the mounted PTZ camera exactly where it needs to point without worrying about rigid mechanical stops or angle limitations that would require a second anchor point.
- Compatible with Hanwha PTZ Camera Line: Built to interface directly with Hanwha PTZ cameras, eliminating adapter plates or third-party mounting brackets that introduce play or misalignment over time.
- Durable High-Quality Construction: The SBP-300WM uses materials rated for both indoor and outdoor environments, so installations in temperature-fluctuating zones—loading docks, outdoor corridor entrances, light industrial spaces—won't degrade the mount or introduce vibration that causes the PTZ to drift out of position.
- Secure Mechanical Attachment: The mount locks the camera body in place once adjusted, preventing drift or accidental repositioning due to vibration, wind, or facility traffic. This stability is critical for PTZ units left in stationary mode for long-period recording on a fixed scene.
- Wall-Surface Installation: Direct wall mounting simplifies installation on masonry, steel, or composite surfaces without the need for additional support structures, ceiling rigging, or pole clamps that would add cost and labor to the deployment.
- Comprehensive Surveillance Coverage: By enabling precise angle adjustment at a single mounting point, the SBP-300WM allows architects to maximize coverage of blind spots, loading areas, and perimeter zones that would otherwise require multiple fixed cameras or repositioning of existing installations.
Integration and Compatibility
The SBP-300WM mount is designed for use with Hanwha surveillance cameras in the PTZ portfolio. Confirm your specific PTZ model's mounting interface before purchase to ensure direct fitment without adapters. The gooseneck form factor is particularly suited to installations where vertical or near-horizontal sightlines are required—for example, monitoring down a hallway from a corner position or capturing activity at a high-angle threshold entry point.
When selecting a mounting location, consider camera placement and coverage planning to ensure the gooseneck's reach and bend radius align with your desired field of view. Wall surface preparation is standard: ensure anchors are rated for the combined weight of the PTZ unit and mount, and allow adequate clearance around the gooseneck so the camera lens or pan mechanism does not strike railings, pipes, or structural elements during rotation.
Frequently Asked Questions
Q: Is the SBP-300WM suitable for outdoor mounting?
A: Yes, the mount is engineered for both indoor and outdoor use. The durable construction handles temperature and humidity variations typical of exterior wall surfaces. Ensure all fasteners are corrosion-resistant and that the PTZ camera itself carries appropriate weathering (IP66 or higher) for your climate.
Q: What is the maximum load capacity of the SBP-300WM?
A: Load capacity is not specified in available documentation. Contact the manufacturer or your distributor with the weight and dimensions of your specific Hanwha PTZ model to confirm the mount can safely support it.
Q: Can the gooseneck be adjusted after installation?
A: Yes. The gooseneck design allows repositioning of the camera angle after mounting, though you should not frequently flex the arm once the camera is secured. This is useful for fine-tuning coverage after initial deployment or when seasonal changes alter sight lines due to foliage or structural additions.
Q: Does the SBP-300WM come with all necessary fasteners for wall installation?
A: Package contents documentation is not available. Confirm with your supplier whether wall anchors, bolts, and washers are included or whether you need to source fasteners separately based on your wall material (drywall anchors for drywall; masonry bolts for concrete or brick).
Q: What is the recommended maintenance schedule for the SBP-300WM?
A: The gooseneck mount itself is passive and requires no routine maintenance. Periodically inspect the connection points between the mount and camera for corrosion (especially in coastal or humid environments) and verify that locking bolts remain tight, particularly on outdoor installations subject to vibration or thermal cycling.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-300WM addresses a specific and practical pain point: conventional PTZ mounts—ball joints, fixed brackets, pendant arms—lock the camera into a narrow range of angles or require multiple anchor points to cover different sight lines. This gooseneck design sidesteps that trade-off by delivering true 360-degree rotational freedom plus multi-axis tilt in a single wall-mounted footprint. For retail or warehouse deployments where you need to shift PTZ coverage between a loading bay, entry threshold, and perimeter in one pass, the SBP-300WM's flexibility translates into fewer re-anchoring conversations with facilities and faster coverage adjustments mid-deployment.
Technical Highlights:
- Flexible Multi-Directional Positioning: Gooseneck geometry eliminates the rigid pan/tilt limits imposed by ball mounts or fixed arms, allowing you to position a Hanwha PTZ camera at angles—especially steep vertical or near-horizontal sightlines—that would be awkward or impossible with alternatives. This matters when your target area is directly below or above the proposed anchor point.
- Single Wall Anchor Point: Unlike pendant or multiple-bracket solutions, the SBP-300WM requires only one structural anchor, reducing installation labor and the number of fastener holes you need to drill or core into a finished wall surface—a significant advantage in leased or historic facilities where wall penetrations are restricted.
- Durable Construction for Mixed Environments: Rated for both indoor and outdoor use, the mount's material specification means it won't corrode, warp, or degrade in temperature-swinging spaces (loading docks, unheated warehouses, exterior transitional areas) where cheaper mounts would begin to drift after a single season.
Deployment Considerations:
- Load capacity is not published in available documentation—you must cross-reference your specific Hanwha PTZ model's weight and mounting interface specifications before committing to this mount on high-value or mission-critical cameras.
- The gooseneck is designed for adjustment during installation and periodic fine-tuning, not for frequent repositioning in the field. Once the camera is locked in place, treat it as a static mounting point; repeated flexing will eventually introduce micro-fractures or loosening at the anchor.
Best suited for: retail environments (POS area, customer entrance, loading dock) and small-to-medium warehouse deployments where a single PTZ camera needs to cover multiple sightlines from one wall position without the bulk or cost of installing separate fixed cameras or relocating anchors.
