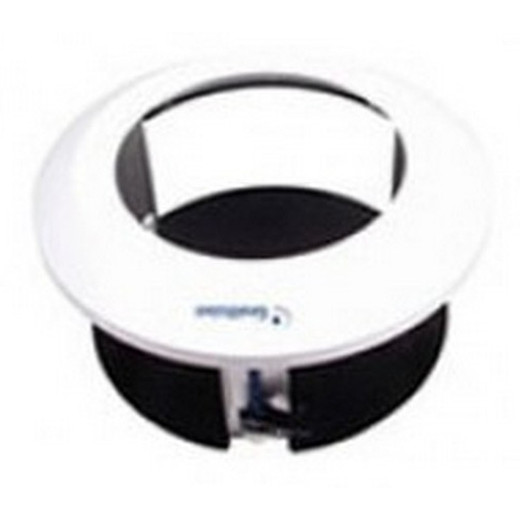

Geovision 51-MT91500-EFD1 915 In-Ceiling Mount
The Geovision 51-MT91500-EFD1 is an in-ceiling mounting bracket designed for the Geovision 915 series compact dome cameras. This accessory enables flush, recessed ceiling installation in applications where concealed surveillance is required without visible camera housings or external brackets. The mount integrates cable routing and positioning hardware to maintain professional appearance while supporting the camera's weight and operational envelope.
Key Features
- 915 Series Compatibility: Engineered fit for Geovision 915 series domes. Verify camera model against compatibility matrix before ordering.
- Flush In-Ceiling Design: Mounts directly into standard ceiling cavity openings. Camera recesses cleanly within ceiling plane for minimized visual footprint in retail, office, or institutional spaces.
- Integrated Cable Management: Built-in cable routing and strain relief guides organize network and power lines within ceiling plenum. Reduces visible cord sag and improves installation aesthetics.
- Structural Support Hardware: Mounting plate and fastening hardware rated for camera weight and vibration isolation. Standard ceiling stud or joist anchorage required.
- Tool-Free Adjustment: Quick-position collar allows azimuth and tilt fine-tuning post-installation without full bracket removal.
- Plenum-Rated Cable Passages: Designed for code-compliant installations in return-air plenums where fire-rated cable routing is specified.
In-ceiling mounting eliminates the visual impact of surface-mounted brackets and outdoor pedestals, making it the standard choice for retail loss-prevention programs, corporate office security, and institutional surveillance where aesthetics and covert positioning are priorities. The 915 series cameras themselves are compact (under 4 inches diameter) and designed specifically for this concealed deployment model.
Installation requires access to ceiling cavity space and structural confirmation that mounting surface (drywall backing, metal stud, or joist) supports the camera and bracket assembly weight. Pre-installation site survey should confirm ceiling height, lighting conditions above and below the dome, and network/power routing paths. Cable management during ceiling installation directly impacts both operational reliability and compliance with plenum fire codes — loose or improperly routed cables can trigger environmental monitoring alerts on some building management systems.
This mount is a passive structural accessory with no active electronics or power draw. It is compatible with all Geovision VMS platforms (GV-Center, GV-Compact, GV-Control) via standard ONVIF Profile S streaming from the 915 camera itself. Integrators deploying mixed-vendor environments should confirm that the 915 camera's network requirements align with their NVR and switching infrastructure before ordering this mount, as the mount itself does not include network provisioning.
The 51-MT91500-EFD1 is a commodity mounting accessory with no geographic or export restrictions. Geovision manufactures this product to standard mechanical tolerances; verify dimensional fit against your specific ceiling opening and camera model before bulk ordering for multi-site deployments. For installations in environments with vibration (HVAC systems, machinery proximity) or high-humidity plenums, confirm bracket corrosion-resistance ratings with Geovision technical support.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
In our experience deploying 915 series domes across retail and office environments, the in-ceiling mount is less about performance and more about installation discipline. The bracket itself is straightforward — a plate, fasteners, and cable guides — but the real difference between a professional installation and a messy one hinges on three factors we've seen repeatedly go wrong: (1) confirming ceiling structural capacity before ordering, (2) managing cable routing in a way that doesn't create service call callbacks, and (3) understanding local building codes around plenum-rated cables. We've seen integrators save time by standardizing on this mount across a 20-site retail chain; we've also seen it create delays when ceiling cavities were shallower than expected or when plenum certification wasn't confirmed upfront with the general contractor. The 915 camera itself is bulletproof for concealed installations, but this bracket is just the starting point — proper planning on site reduces rework and callback risk significantly.
Technical Highlights:
- Flush-Mount Cavity Fit: Designed to sit entirely within standard 6-inch ceiling cavity depth. Know your plenum height and ceiling construction type (drywall, suspended T-bar) before installation — non-standard cavity dimensions can require field modification or alternative mounting strategies.
- Cable Routing Envelope: Integrated passages accommodate standard RJ45 Ethernet and 12V power leads without kinking. Oversized cable bundles or armored conduit require advance routing planning to avoid bracket interference.
- Weight Support: Rated for 915 series camera weight (under 300g typical). Does not include extension poles or repositioning hardware — bracket position is fixed once ceiling is closed. Confirm final aiming during commissioning before drywall closure.
- Vibration Isolation: Rubber bushings on fastening points dampen HVAC-induced vibration. Not engineered for high-vibration industrial environments — use reinforced brackets in machinery-proximity installations.
Deployment Considerations:
- Verify ceiling cavity dimensions and structural framing type before ordering. Drywall backing, metal studs, and wooden joists have different fastening requirements — use appropriate anchors for your substrate.
- Route all cables before ceiling panel closure. Once drywall or drop-ceiling tiles are installed, cable modifications become labor-intensive. Pre-pull network and power to the mount location and test connectivity before sealing.
- Plenum certification matters: if your ceiling cavity is a return-air plenum for HVAC, confirm that all cabling and the mount bracket itself meet local fire codes. Non-compliant cable runs can trigger building inspector rejection at final walkthrough.
- Plan camera aiming and focus during open-ceiling installation. Adjusting azimuth after drywall closure is possible but difficult — finalize coverage geometry before commissioning is complete.
- For multi-site retail deployments, order all brackets and fasteners upfront. Site-to-site ceiling variations (height, framing, cavity size) are common; standardizing the mount across locations improves logistics but requires dimensional pre-validation at each location.
The 51-MT91500-EFD1 is the right choice for integrators standardizing on Geovision 915 domes across retail, office, or institutional sites where concealed ceiling mounting is the aesthetic and operational requirement. For larger deployments or non-standard ceiling geometries, consult the Geovision catalog for alternative bracket options or contact Geovision technical support for custom mounting guidance.
