Middle Atlantic 90 Degree Turn Hdwr 1PR - CLH-90T

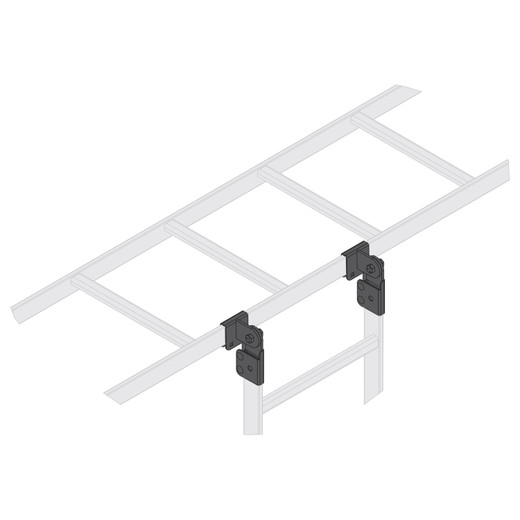

Middle Atlantic CLH-90T Cable Ladder 90-Degree Turn Hardware Kit

Overview

The Middle Atlantic CLH-90T is a 90-degree turn splice kit designed for use with Middle Atlantic cable ladder systems. When a cable run needs to change direction — rounding a corner in a ceiling plenum, turning along a wall, or navigating around a structural obstruction — this hardware pair provides the mechanical connection point. Rather than improvising with field-cut bracket stock or relying on unsupported cable bends, the CLH-90T gives integrators a purpose-built, factory-finished fitting that maintains the ladder system's structural continuity through the turn. It ships as one pair (1 PR) and is compact enough to stage and install in tight above-ceiling spaces.

Key Features

• Purpose-built 90-degree turn geometry: Designed specifically for directional changes in Middle Atlantic cable management ladder runs — eliminates improvised field bends that stress cable jackets and create future maintenance headaches in structured cabling environments.
• Black zinc coat finish: The zinc coating provides corrosion resistance in the plenum and above-ceiling environments where cable ladders typically run. The black finish reduces visual contrast against dark ceiling spaces, which matters in exposed-ceiling architectural installations where aesthetics count.
• Compact footprint (2.13" W × 4.32" H × 2.9" D): At under 3 inches deep, the CLH-90T fits into constrained plenum and above-ceiling spaces without requiring you to clear additional clearance for the fitting itself. Stage it before the run reaches the corner to avoid awkward overhead assembly.
• Ships as one pair (1 PR): Each CLH-90T unit contains the hardware for one 90-degree turn — plan your cable ladder layout and count directional changes before ordering so you have the right quantity on hand for the full run.
• Shipping weight of 1.8 lbs: Lightweight construction means the fitting adds negligible load to the cable ladder span, which matters on longer unsupported runs where cumulative hardware weight can affect sag calculations.
• Integrates with Middle Atlantic cable ladder infrastructure: Part of the broader Middle Atlantic cable ladder accessory line — designed to splice and connect within that system's dimensional standards, not a generic fitting adapted from another product family.

Integration & Compatibility

The CLH-90T is a component within the Middle Atlantic cable ladder product family. It is intended for use with compatible Middle Atlantic cable ladder sections. Verify ladder width compatibility before ordering — cable ladder systems come in multiple widths, and the turn hardware must match the ladder width in use on your project. This fitting is not TAA compliant, which is a disqualifier for federal government installations subject to the Trade Agreements Act. For commercial, enterprise, and private-sector structured cabling deployments, TAA status is typically not a constraint.

Frequently Asked Questions

Q: Is the CLH-90T TAA compliant?

A: No. The CLH-90T is not TAA compliant. Federal installations requiring TAA-compliant cable management hardware should source an alternative fitting that meets those requirements.

Q: What finish does the CLH-90T use, and does it hold up in plenum environments?

A: The CLH-90T uses a black zinc coat finish, which provides corrosion resistance appropriate for typical above-ceiling and plenum cable ladder installations.

Q: How many 90-degree turns does one CLH-90T cover?

A: One CLH-90T unit provides the hardware for one 90-degree turn (sold as one pair). Count the number of directional changes in your cable ladder run and order accordingly.

Q: What are the physical dimensions of the CLH-90T?

A: The CLH-90T measures 2.13 inches wide, 4.32 inches tall, and 2.9 inches deep (5.4 cm × 11 cm × 7.4 cm). Shipping weight is 1.8 lbs (0.8 kg).

Q: Is the CLH-90T compatible with all Middle Atlantic cable ladder widths?

A: The CLH-90T is designed for the Middle Atlantic cable ladder system. Confirm the specific ladder width compatibility with the Middle Atlantic product documentation for your ladder series before ordering.

Jerry Tildsen

The CLH-90T is one of those fittings that seems minor until you're 20 feet up on a lift trying to make a cable ladder turn work with improvised hardware. At 2.9 inches deep and 1.8 lbs shipping weight, it is genuinely compact and light enough to pre-stage on the ladder before the lift goes up — which is how I'd always approach it on a multi-turn ceiling run.

Technical Highlights:

• Black zinc coat finish: Zinc coating handles the moisture and temperature swings typical of plenum and mechanical room environments — not a cosmetic choice, it's the right material call for above-ceiling installs that won't be re-accessed for years.
• Compact geometry (2.13" W × 2.9" D): Fits into tight plenum corridors without requiring you to engineer around the fitting itself. On dense above-ceiling runs with multiple conduit, HVAC, and cable tray conflicts, every inch of clearance matters.
• One pair per turn: Sold as 1 PR — straightforward to quantity-take-off from your ladder layout drawing. No ambiguity about what you're getting per unit.

Deployment Considerations:

• Verify ladder width compatibility before the CLH-90T arrives on site — Middle Atlantic cable ladder sections come in multiple widths, and the wrong turn hardware will not fit without modification.
• TAA non-compliance is a hard stop for federal and GSA projects. Flag this early in the spec review if your project has government procurement requirements, not after the hardware is on site.

The CLH-90T is the right call for commercial integrators running structured cable ladder systems through multi-turn ceiling paths in office buildouts, data rooms, or security head-end closets — where a factory-finished, properly dimensioned turn fitting keeps the installation looking professional and performing long-term.
