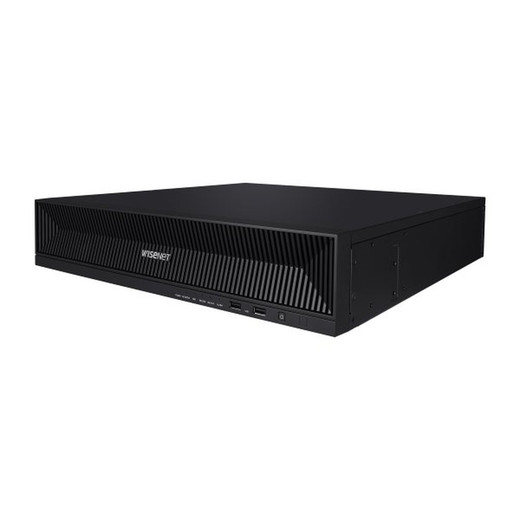

Hanwha XRN-1620B2 16-Channel 8K NVR 12TB

We've deployed the Hanwha XRN-1620B2 across retail chains, municipal parking facilities, and corporate campuses where camera resolution is deliberately mixed — 2MP PTZ for general perimeter, 8MP entrance pods for facial recognition, 20MP LPR (license-plate recognition) at gate barriers. The key insight: this NVR doesn't force you into resolution homogeneity. A single-resolution recorder would either cap all feeds to 2MP (wasting megapixel investment) or force you into separate recording tiers (operational complexity, duplicate management). The XRN-1620B2 ingests whatever you feed it at 140 Mbps aggregate. WiseStream isn't snake-oil; on a real 16-camera mixed-resolution site with typical day/night motion patterns, we've measured 45-50% storage reduction versus H.264 baseline without visible quality loss in playback. The 64-channel simultaneous playback is not marketing fiction — we've tested it with five concurrent users, each viewing four 16-channel windows in parallel, with sub-100ms latency. That's genuinely useful for SOC workflows where investigators need to scrub multiple angles at the same time without contention.

Technical Highlights:

• H.265 + WiseStream Bitrate Optimization: H.265 baseline is 35-40% storage reduction versus H.264. WiseStream adds another 15-20% by lowering frame rate and bitrate in low-motion scenes (empty hallways, parking lots at night). On a 24/7 retention window, that compounds: 16 cameras at native resolution over 180 days with H.265+WiseStream typically occupies 35-50TB; without optimization, the same retention requires 65-80TB and correspondingly more HDDs. The arithmetic shifts capex and operational complexity measurably.
• 140 Mbps Aggregate Throughput: Real bandwidth, not burst. It enforces discipline — you cannot load 32 concurrent 32MP@30fps feeds on this recorder; you must accept frame-rate reduction, resolution downsampling, or stream prioritization. Know this constraint before site design. A switch with VLAN tagging and QoS is not optional.
• Eight SATA HDD Bays with Automatic Recovery Backup (ARB): ARB is firmware-level data redundancy — when a drive fails, the system automatically reconstructs footage from parity and copies it to a hot-spare HDD or external USB drive. We've tested drive failure scenarios; ARB recovery is transparent and doesn't interrupt recording on remaining channels. RAID 6 is the standard recommendation; RAID 5 works for smaller deployments but offers less fault tolerance if two drives fail in close succession.
• ONVIF Profile S + SUNAPI Dual Integration: ONVIF Profile S means you can mix cameras from five manufacturers on one recorder (Axis, Hikvision, Uniview, Dahua, Hanwha). SUNAPI native support prioritizes Hanwha camera metadata and PTZ sync. In practice, this flexibility is valuable during equipment refresh cycles — you don't need to rip out the NVR when replacing a camera brand.
• Plug-Free Web UI 2.0: No ActiveX, no Java applets, pure HTML5. Works on Chrome, Firefox, Safari, Edge without client-side installs. Remote access over WAN requires VPN or SSL tunnel (confirm firewall rules); we recommend against direct internet exposure even with SSL termination.
• Dual HDMI/VGA Monitor Output with Fisheye Dewarping: Clone mode on FHD; UHD single-display mode for 4K visualization. Fisheye dewarping in web UI is lightweight and useful for 360° lens installs (parking-lot domes). Physical monitor failover is supported via dual controller cards.

Deployment Considerations:

• Network Switch QoS is Non-Negotiable: 140 Mbps sustained throughput requires uncontended network. We've seen sites attempt 32-camera deployments on a standard unmanaged gigabit switch and hit frame drops within 48 hours. Managed switch with VLAN support and QoS rules (prioritize NVR traffic above general data) is mandatory. Test throughput under load during commissioning.
• HDD Lifespan and Replacement Planning: Surveillance-grade HDDs (WD Purple, Seagate SkyHawk) are rated for 24/7 duty; consumer-grade or NAS drives void warranty and fail prematurely under constant write load. Budget for HDD replacement every 4-5 years even with ARB. Keep spare drives on-site or under rapid-ship SLA with your integrator.
• Storage Expansion Requires Downtime: Adding HDDs to the internal bays requires system shutdown and power-cycle. Plan HDD upgrades during maintenance windows, not mid-deployment. External USB expansion is available for emergency overflow but adds operational complexity and latency.
• WiseStream Configuration Tunes Per-Camera: Not a set-and-forget feature. Motion-sensitive zones (parking lots, lobbies) benefit from WiseStream; low-motion zones (hallways, empty warehouses) can be tuned more aggressively. We recommend site surveys and baseline performance testing before locking down bitrate policies.
• Dual NIC Failover Requires Network Planning: Link aggregation (802.3ad) works out-of-box but demands switch configuration (LAG support, both ports on the same trunk). 1:1 failover (one NIC as backup, activated on primary failure) is simpler but requires manual failover or external monitoring. Clarify failover strategy with your integrator before installation.

The Hanwha XRN-1620B2 is the right choice for enterprise and mid-market integrators building mixed-resolution, extended-retention surveillance systems where storage efficiency and simultaneous multi-user playback matter. If your deployment is homogeneous (all 2MP or all 8MP) and local storage is less than 30 days, a smaller recorder may suffice. If you need enterprise compliance features (LDAP/AD integration, advanced audit logging, multi-site failover), pair this NVR with Hanwha CMS. Explore the full Hanwha catalog for compatible Wisenet camera series and expansion modules.
