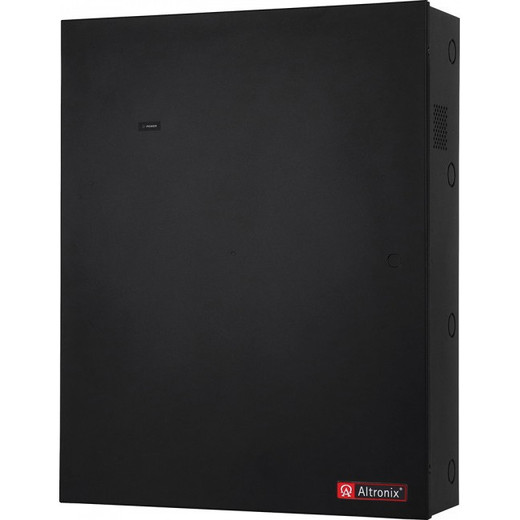

Altronix 8DR SWH/EFLOW/PTC/115 - T2SH7F8DPQ

Altronix T2SH7F8DPQ Surveillance Power Distribution Module

Overview

The Altronix T2SH7F8DPQ is a specialized power distribution module designed to manage and distribute power to multiple surveillance devices. It integrates switch, EFLOW, PTC, and 115V capabilities into a single unit, simplifying installation and reducing wiring complexity in commercial security deployments. This unit is engineered for environments requiring reliable, centralized power for IP cameras, access control panels, or other low-voltage security equipment.

Compatibility

This module is designed for integration with 115VAC power sources and is compatible with a wide range of low-voltage surveillance devices that require up to 8A total current, with individual PTC protected outputs. It is suitable for use with Altronix power distribution systems and other commercial-grade security infrastructure where precise power management is critical.

Installation Notes

The T2SH7F8DPQ requires a 115VAC input. Each of the eight outputs is protected by a resettable PTC (Positive Temperature Coefficient) current limiter, providing individual device protection and preventing cascading failures. Proper wiring to the 115VAC input and to the low-voltage devices is essential. Ensure the total current draw does not exceed the module's 8A capacity. Consult the manufacturer's installation guide for specific wiring diagrams and load balancing recommendations.

What's in the Box

• 1x Altronix T2SH7F8DPQ Power Distribution Module
