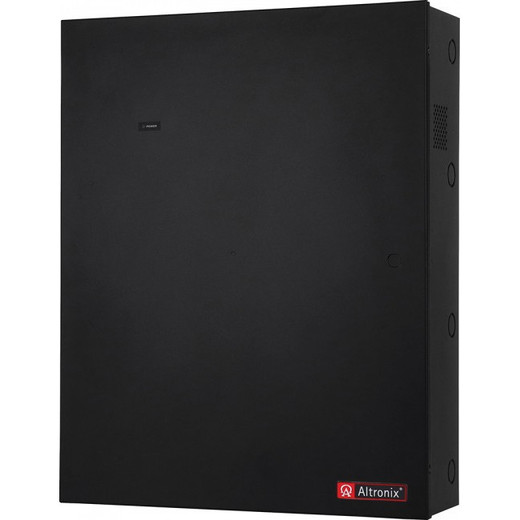

Altronix 8DR SWH/EFLOW/FUSE/115 - T2SH7F8PQ

Altronix T2SH7F8PQ Concise Descriptor

Overview

The Altronix T2SH7F8PQ is an 8-output, fused power distribution module designed to provide distributed power for surveillance cameras and accessories. It accepts a 115VAC input and converts it to eight individually fused 12VDC outputs, simplifying wiring and enhancing system reliability in commercial surveillance deployments. This unit is suitable for rack-mount installations or wall mounting where localized power distribution is required for multiple devices.

Compatibility

This module is compatible with a wide range of 12VDC powered surveillance devices, including but not limited to: Altronix power distribution enclosures, various IP camera brands requiring 12VDC input (e.g., Axis, Hanwha, Hikvision, Dahua), IR illuminators, and other low-voltage surveillance accessories. It is designed to integrate into existing power infrastructure where a central 115VAC source is available and needs to be distributed to multiple endpoints.

Installation Notes

Input voltage is 115VAC. Each of the eight outputs provides 12VDC with individual fuse protection. The module requires a standard 115VAC power source. Ensure proper ventilation around the unit, especially when operating at full load. Fuse replacement is straightforward, allowing for quick serviceability without powering down the entire system. Consult the manufacturer's installation guide for specific wiring gauge recommendations based on output current and cable length.

What's in the Box

• 1x Altronix T2SH7F8PQ Power Distribution Module
• 1x Mounting Template
• 1x Installation Guide
