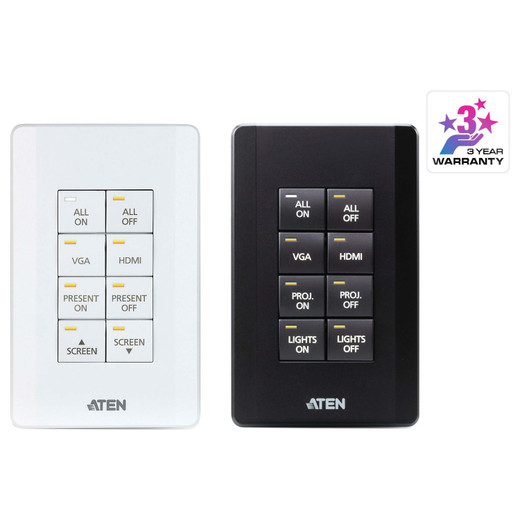

ATEN VK108US 8-Button Control System Keypad

Overview

The VK108US is a 1-gang US-format recessed keypad designed for integration with ATEN control systems. It provides up to 8 physical buttons configurable across 14 distinct keypad layouts — giving installers flexibility to match button count and labeling to the specific control scenario without swapping hardware. The VK108US ships as the tactile user interface layer for building and AV control deployments where operators need direct, labeled button access to macros, scenes, or device commands.

Compatibility

The VK108US is designed for use with ATEN's Control System product line, including the VK series controllers. The keypad ID is set via a 1 x 8-segment DIP switch, allowing multiple keypads to coexist on the same control network without address conflicts — critical in multi-room or multi-zone installs. The 14 available keypad layouts let you configure anywhere from 4 to 8 active buttons, so a single SKU covers scenarios ranging from a minimal 4-button scene selector to a full 8-button command panel. Refer to your specific ATEN VK controller documentation to confirm firmware compatibility; the VK108US firmware was updated to v4.0.391 (2026-03-13), and controllers should be running a matching or later firmware revision to ensure full layout support.

Installation Notes

The VK108US mounts flush in a standard 1-gang US wall box (recessed mount). Humidity tolerance is rated to 80% RH non-condensing — suitable for interior commercial spaces but not exposed or high-moisture environments. A semi-recessed reset button is included for field resets without requiring panel removal. Set the keypad ID via the 8-segment switch before seating the unit in the wall box; accessing the DIP switch post-installation requires pulling the faceplate. Firmware upgrades are field-deployable via the ATEN controller interface using the vk108us-v4.0.391.zip package.
